Coxo C-Sailor - 2. Package Contents; Included System Components; 3. Control Unit and Irrigation Pump; Control Unit Key Operations

3
4
Between 0-40˚C (32-104˚F)
Between -10-55˚C(14-131˚F)
Between10-85%RH
Between 10-85%RH
Between 700-1060hPa
Between 500-1060hPa
Temperature
Humidity
Atmospheric pressure
Use
Store Transportation
** No moisture condensation in the Control Unit.
** Using at outside of these limits may cause malfunction.
5
3
8
4
9
P
2
PROGR AM
SPEED
TORQU E
MEMORY GEAR FWD/RE V CO OLANT
1
6
7
1
2
3
4
5
6
7
Control Unit
Foot Control with Cord(2M)
AC Electrical Cord(1.5M)
Optic Motor/Non-Optic Motor(with Motor Cord)
Coolant Solution Hanger Post
Handpiece Stand
Tube Holder
Description
3.Control Unit with an Irrigation Pump
Description of Operation
◆Keys on the Control Unit
(1) Program Key
Use to Cycle through available programs. Press [+] key to ascend and [-] key to descend program number. You
will find all program numbers sequentially by pressing keys.
(2) Speed Key
Use to set the Micromotor speed. Press [+] key to increase, and [-] key to decrease speed. (When the upper
and lower speed limits are reached an audible alarm 'beep' is sounded).
(3) Torque Key
Use to set the torque range. Press [+] key to increase and [-] key to decrease torque range. (When the upper and lower torque
range limits are reached an audible alarm 'beep' is sounded). The torque range setting should be selected according to the
attached handpiece gear ratio.
(4) Gear Ratio Key
Use to set gear ratio of the attached handpiece before use. Repeat press this key until the LCD display indicates the correct gear
ratio of the handpiece.
(5) Coolant Flow Key
Use to select 6 levels of coolant solution flow from 0 to 5, repeat press key to cycle through coolant flow levels.
(6) FWD-REV Key
Use to select the direction of rotation. Press this key once to change the rotational direction. (Once in reverse the Control Unit
audibly warns with a 'beep')
(7) Memorize Key
Use to memorize the program parameters set by the operator. Press this key once to memorize parameters. When beep sounds,
the new program parameters have been memorized.
8
9
Spare Fuse
Prevent steam bolt
1
1
1
1
1
1
8
Quantity
1
1

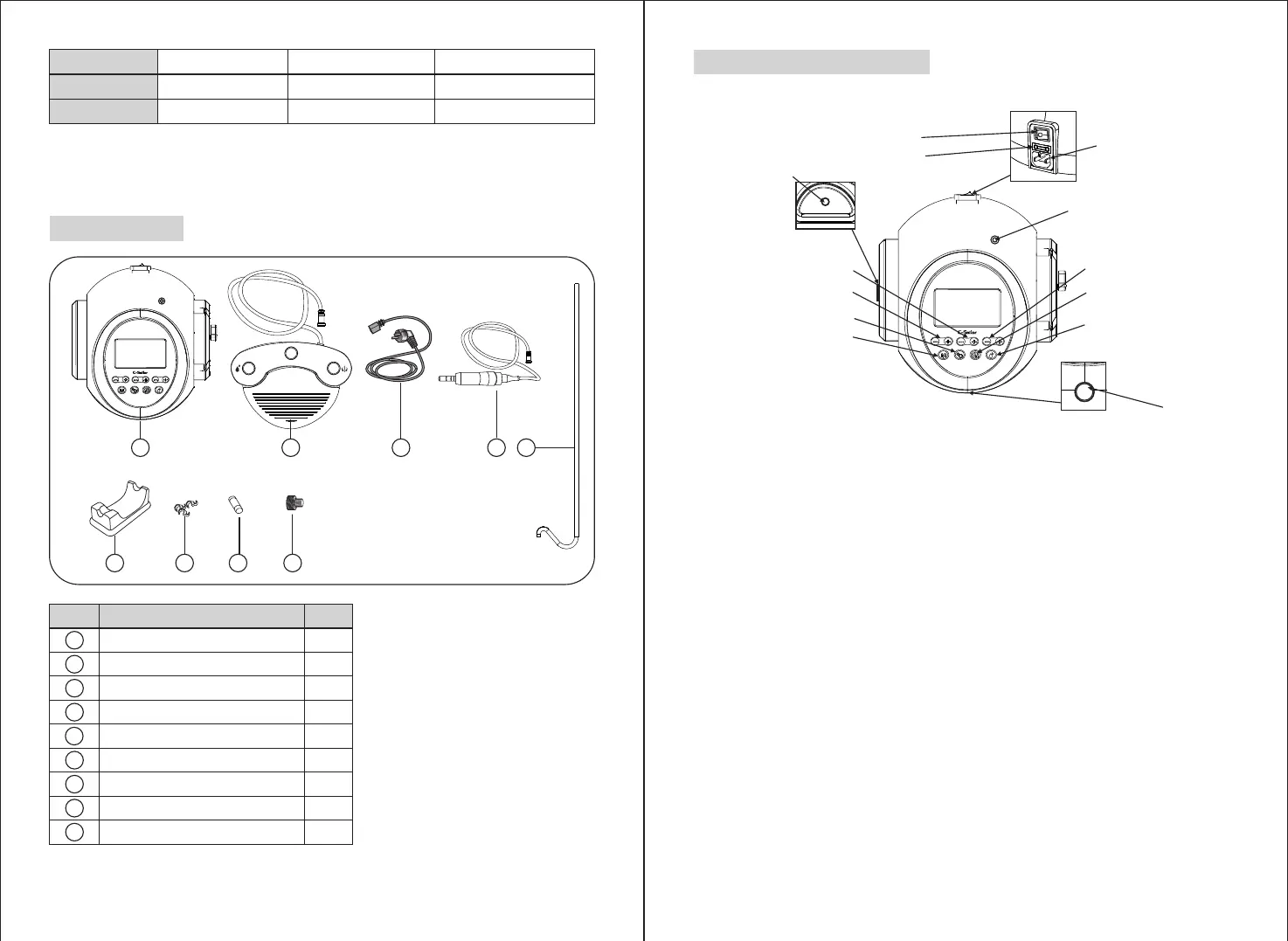

2. Package Contents
Item No.
PROG RAM
SPEE D
TORQ UE
MEMO RY GEAR FWD /REV COO LANT
Main Power Switch
Fuse Holder
Coolant Solution Hanger
Post Holder
Program Key
Memory Key
Foot Control Cord connection socket
AC Eletrical Cord
Connetion socket
Speed Key
Gear Ratio Key
Torque Key
FWD-REV Key
Coolant Flow key
Micromotor Cord
Connection socket
