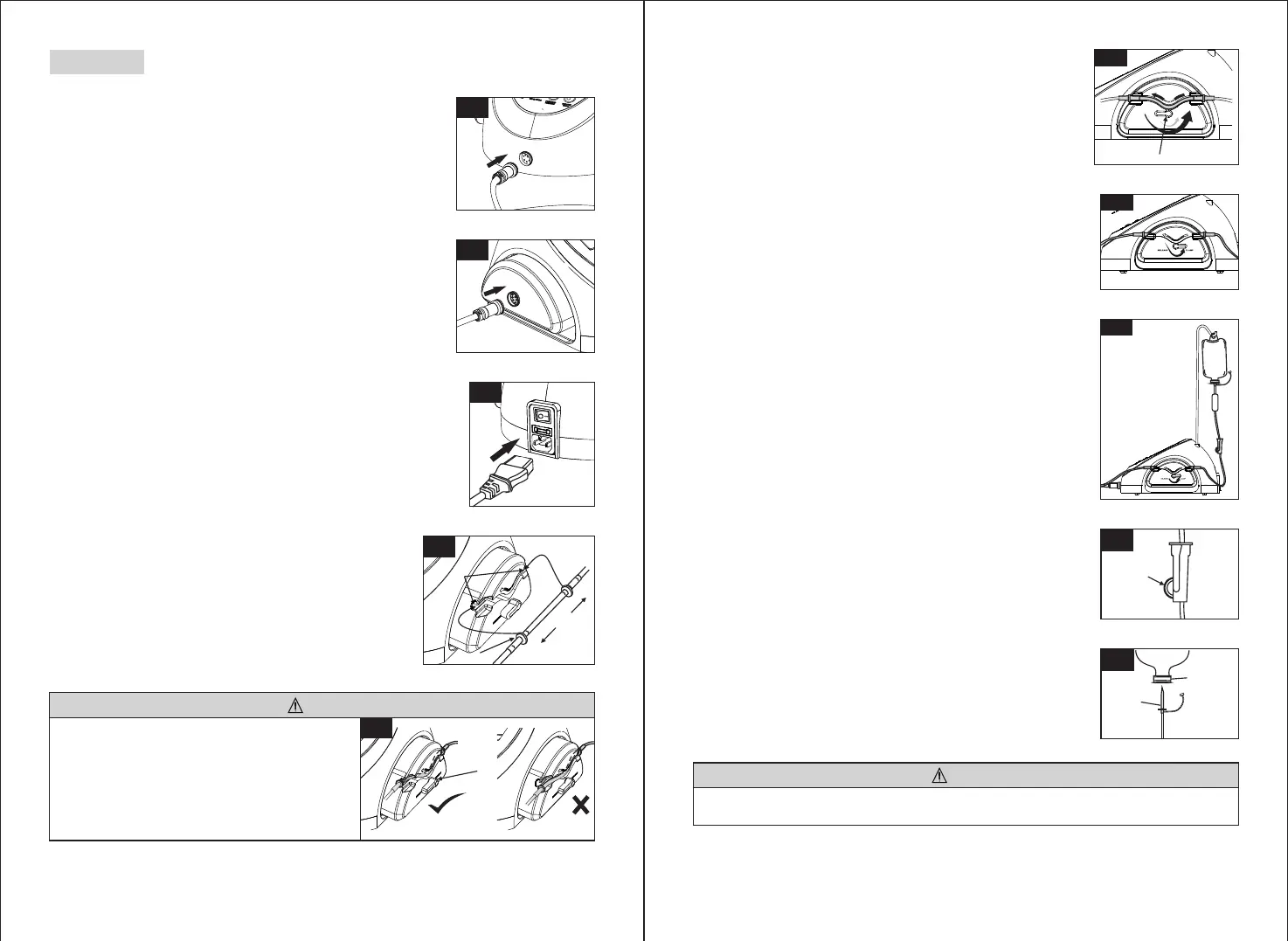

Coxo C-Sailor - 5. Installation Procedures; Connecting System Components; Irrigation System Setup and Mounting

7
8
Fig. 1
Make sure that the tube is securely set on the rollers
when closing the Pump Cover. If the tube is not correctly
positioned on the Rollers and the cover is closed, the
tube could be cut or sheared.(Fig. 5)
Plug the Motor cord into the motor interface of the main unit, fasten
the Fixed nut after that. When remove the motor cord, loosen the
fixed nut, pull out the plug from the interface.(Fig. 1)
Fixed
Position
‘Needle’
Direction
Stopper
Fixed
Position
Tube Guide
‘Control Unit’
Direction
5-4 Installing the Irrigation Tube
Please install the water supply pipe onto the side of the
main unit. Then please send water supply pipe needle side
of the clamp ring alignment host back in,it will be another
clamp ring alignment water supply pipe guide of the load.
(Fig. 4)
5-3 Connecting the AC Electrical Cord
Correctly align then insert the AC Electrical Cord into the AC Electrical
Cord Connection at the back of the Control Unit.(Fig. 3)
5-2 Connecting the Foot Control
Face the screw on the Foot Control Cord Plug downward then insert
the plug into the Foot Control Cord connector socket on the Control
Unit. Secure the plug by fastening the Lock Nut.(Fig. 2)
5-1 Connecting the Motor Cord
5. Installation
Fig. 2
Fig. 3
Fig. 4
Rollers
CAUTION
Fig. 5
After the tubes are correctly positioned, close the Pump Cover
by turning the Pump Cover Lever to the ‘CLOSE’ position
(180 degrees counter-clockwise).(Fig. 6&7)
CLA MPREL EASE
Pump Cover Lever
Fig. 6
Fig. 7
5-5 Mounting the Coolant Solution Hanger Post
Mount the Coolant Solution Hanger Post onto the Holder on the
Control Unit(the support bar maximum can hang 2 kg weight.),
the post will only fit into one position.(Fig. 8)
5-6 Insertion of the irrigation Tube
(1) Close the Tube Clamp, between the Irrigation Tube Needle and
the Irrigation Pump.(Fig. 9)
(2) Insert the Irrigation Tube Needle into the Bottle Cap.(Fig. 10)
(3) Open the Tube Cap to supply air into the bottle.
(4) Open the Tube Clamp.
Tube clamp
Bottle Cap
Irrigation
Tube Needle
Fig. 8
Fig. 9
Fig. 10
Do not operate the Irrigation Pump if the tube is bent or the Tube Clamp is in the closed position. This could cause the tube to
burst or slip out of the bottle.
CAUTION
