COZY W355G - Parts List and Reference; Tools Required for Assembly

1018039-BPage 3

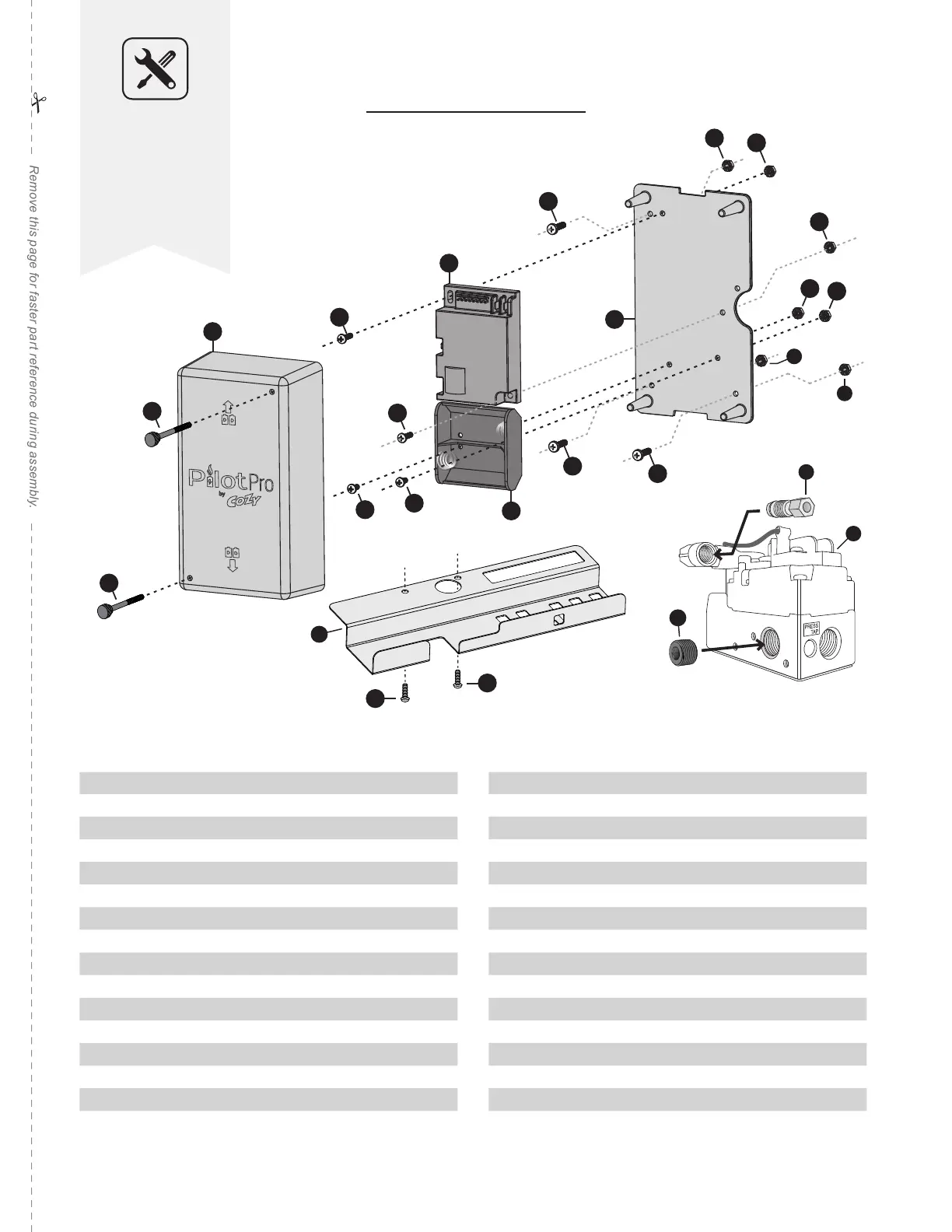

PARTS LIST AND REFERENCE
REF PART NO. DESCRIPTION QTY
1 1018002 Battery Pack 1
2 1018000 Control Module 1
3 1018397 Mounting Plate 1
4 1018398 Cover 1
5 50139 Screw, #8 x 3/8" 2
6 1018690 Screw with Knob 2
7 1018526 Screw, #8-32 x 3/4" 5
8 1018331 Screw, #4 x 1.5" 1
9 50052 Nut, #8 7
10 1018330 Nut, #4 1
11 1018036 IID Valve, Natural 1
12 1018001 IID Wiring Harness 1
13 1018037 Outlet Plug 1
14 1018634 Ignitor, Pilot 1
15 1018350 Flame Sensor 1
16 1018302 Wire, Flame Sensor 1
REF PART NO. DESCRIPTION QTY
17 50953 Nut, Wire Gray* 2
18 1018045 Label, Ladder Schematic** 1
19 1018044 Label, Wiring Diagram** 1
20 1018171 Label, Modications** 1
21 1018055 Lighting Instructions* 1
22 1018416 1.5V D-Cell Battery 2
23 1018039 Pilot Pro Manual* 1
24 1018501 Electrical Sleeving* 2
25 B-6395 Tie, Cable 7in* 4
26 1018351 Nut, Flame Sensor 1
27 1018541 Bracket, Valve 1
28 50187 Screw, #10-24 x 3/8" 2
29 84084 Compression Nut, Large 1
30 80037 Compression Nut, Small 1
31 1018543 Pilot Tube 1
* Not shown ** See page 19
Tools Required
forAssembly:
• Phillips - Head
Screwdriver
• Needle Nose Pliers
• 3/16" Drill Bit
• Wire Cutters
Remove this page for faster part reference during assembly.
