COZY W355G - Installation

1018039-BPage 9
A
B
Install on the right
side OR left side of
the housing.
A
B
C
C
3
3

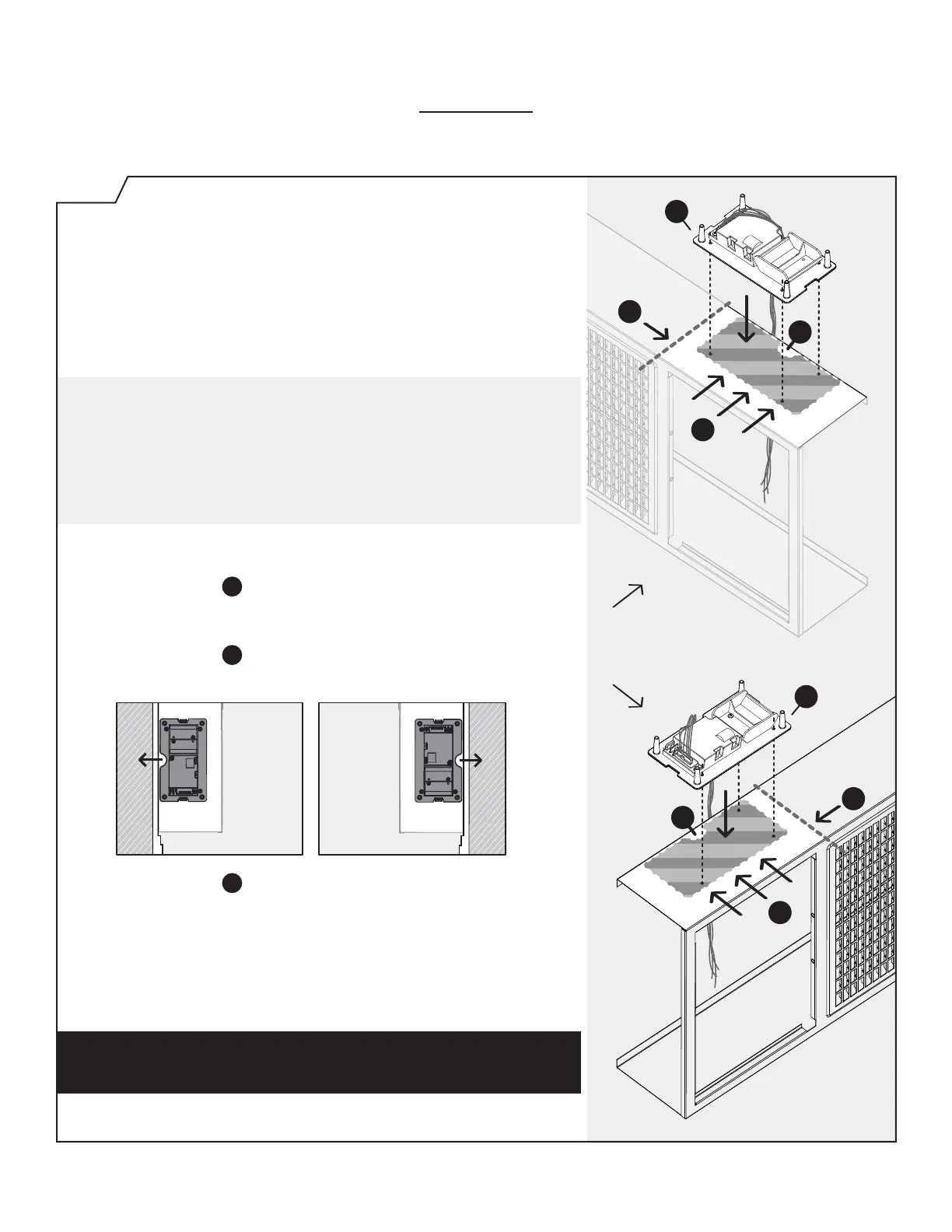

INSTALLATION
Step 6
- Remove the door from the heater housing.
- Locate the Pilot Pro in the carton and remove the cover from
baseplate with a screwdriver.
- Check the inside of the housing for safety labels. Try to avoid
drilling through any pertinent safety information during this step.
3. PLEASE NOTE
C
OF THIS STEP.
Be sure to face the notch / cutout of the mounting plate (3)
toward the wall.
4. Using the mounting plate (3) as a template, align in place as
illustrated. Using a marker or pencil, leave a mark for the three
hole locations on the metal housing.
SET ASIDE THE MOUNTING PLATE
(
3
)
.
5. Drill the three holes into housing using a 3/16” drill bit.
DO NOT DRILL DIRECTLY THROUGH MOUNTING PLATE.
DRILL MAY CRACK THE MOUNTING PLATE.
WALL
WALL
Left
Side of
Heater
WALL
WALL
Right
Side of
Heater
USETHEMOUNTINGPLATE(3)
FOR THE FOLLOWING STEPS.
MOUNTING PLATE MUST BE MOUNTED AS DIRECTED
BELOW OR WIRE HARNESS WILL NOT REACH.
1. PLEASE NOTE
A
OF THIS STEP.
Do not mount the PilotPro any higher than the top of the
access door of the housing.
2. PLEASE NOTE
B
OF THIS STEP.
Align the PilotPro very close to the back edge of the housing.
