CP Electronics UNLCDHS - Parameters

14
1. Ambient light level 2. Occupancy 3. LUX on time 4. LUX o time 5. LUX o level 6. LUX on level
1. Output level 2. Occupancy 3. Timeout 4. On value 5. Light level (MI) 6. O value
1. Output level 2. Occupancy 3. Timeout 4. On Value
5. Light level (MI) 6. Fade Value or Fade O
level (V3)
7. Fade Time or Fade O
Time (V3)
▪ 5 ▪

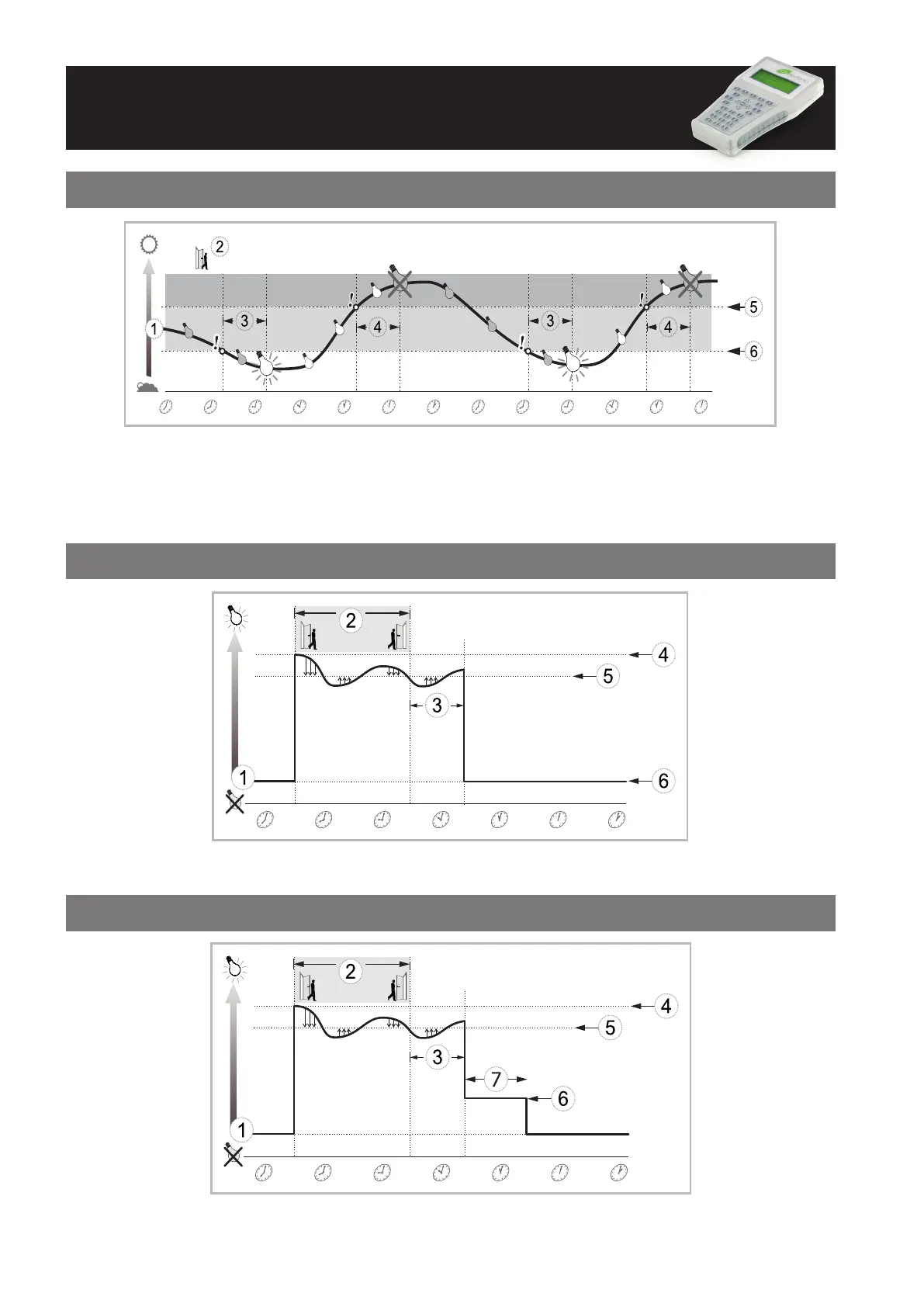

PARAMETERS
Basic lux switching settings
1. Ambient light level 2. Occupancy 3. Lux On Time4. Lux Off Time5. Lux Off Level6. Lux On Level
Basic dimming settings (without fading)
1. Output level
2. Occupancy
3. Timeout
4. On Value
5. Light Level (MI)
6. Off Value
Basic dimming settings with fading
1. Output level
2. Occupancy
3. Gradual Fade On Time
4. Timeout
5. Gradual Fade Off Time
6. Stepped Fade Off Time
7. Light Level (MI)
8. Fade On Level
9. Fade Off Level
10. Off Value
▪ 5 ▪
PARAMETERS
Basic lux switching settings
1. Ambient light level 2. Occupancy 3. Lux On Time4. Lux Off Time5. Lux Off Level6. Lux On Level
Basic dimming settings (without fading)
1. Output level
2. Occupancy
3. Timeout
4. On Value
5. Light Level (MI)
6. Off Value
Basic dimming settings with fading
1. Output level
2. Occupancy
3. Gradual Fade On Time
4. Timeout
5. Gradual Fade Off Time
6. Stepped Fade Off Time
7. Light Level (MI)
8. Fade On Level
9. Fade Off Level
10. Off Value
UNLCDHS Programming
Parameters
Basic LUX switching settings
Basic dimming settings (without step fade)
Basic dimming settings with step fade
Kindly refer to the product manual of the specic model for the usable LUX range. For version V3 sensors, limit the target LUX setting to within 950 LUX
which when mounted on the ceiling would equate to around 3000LUX on desk level for an example oor & furniture reectance factor situation of 0.3.
For versions previous to V3, limit the target level to within 300 which would equate to 1000 LUX on the desk under the same reectance conditions.
