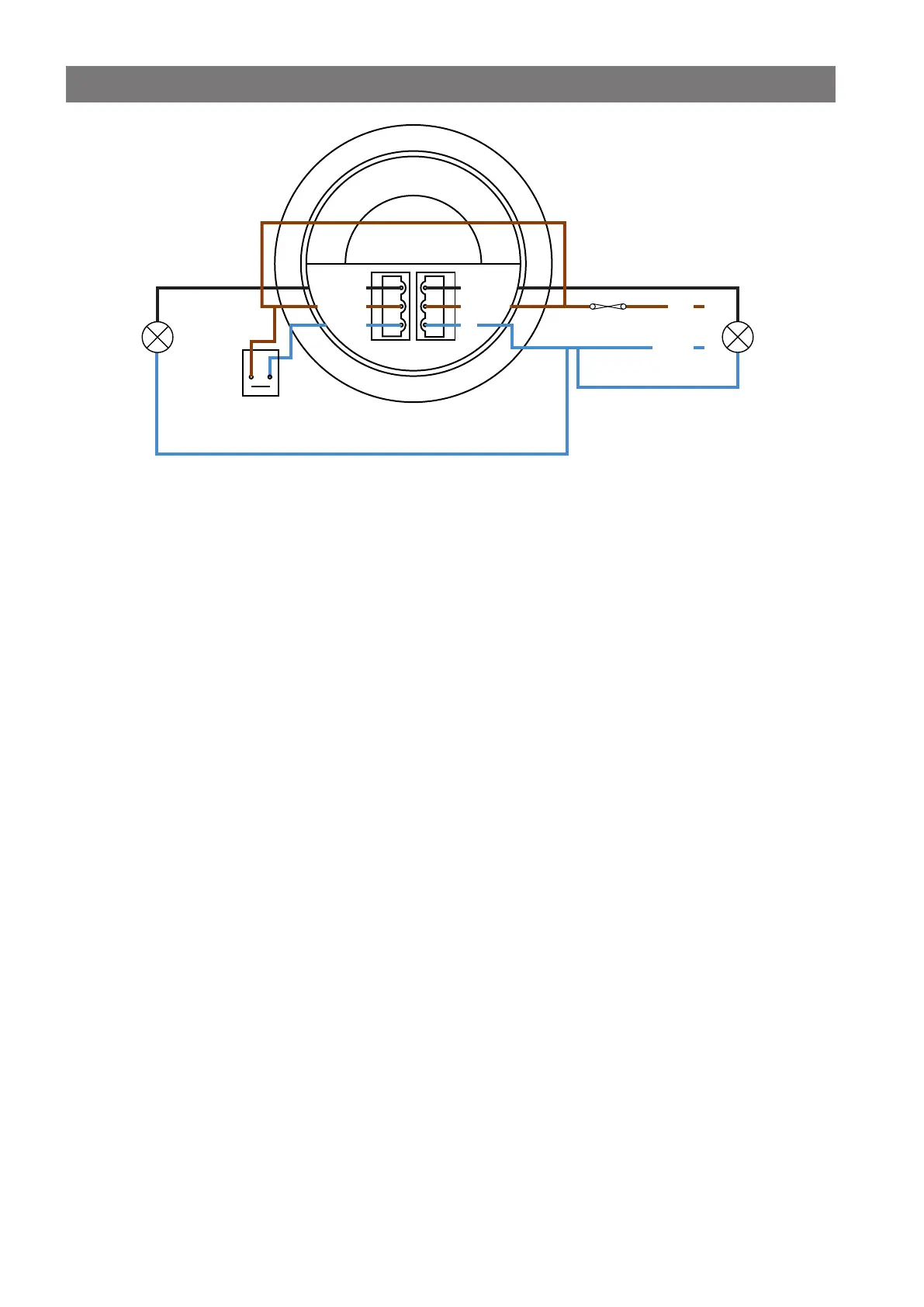

Two channel switching for PRM-2CH models
L/Out Ch1
L/In Ch1
Switch
N
CH1 and CH2 plugs are coded.
Ensure that the plugs are inserted
correctly and do not apply excessive force
Neutral
Live
Circuit Protection
(If Required)
Luminaire
Luminaire
L/Out Ch2
L/In Ch2
Momentary push
to make switch
(240V Switching)
