Note: Procedure is shown with 1/4” nylon lock nuts
and 5/16” I.D. at washers; ¼” nylon anged lock nuts may substi-
tute.
Parts List:
1 - Main Mounting Plate w/studs
1 - Inner Polycord Holder
1- Outer Polycord Holder
1 - Retainer
1 - ¼” Polycord
8 – ¼” x 20 x ¾” long Flat Head Socket Cap Screws
8 - 5/16” at washers
8 - ¼” x 20 Nylon Lock Nuts
1 - Spring (Red)
1 - Drive Shaft
1 - Inner Polycord Holder
1 - ¼” Polycord
8 – ¼” x 20 x ¾” long Flat Head Socket Cap Screws
1 - Retainer

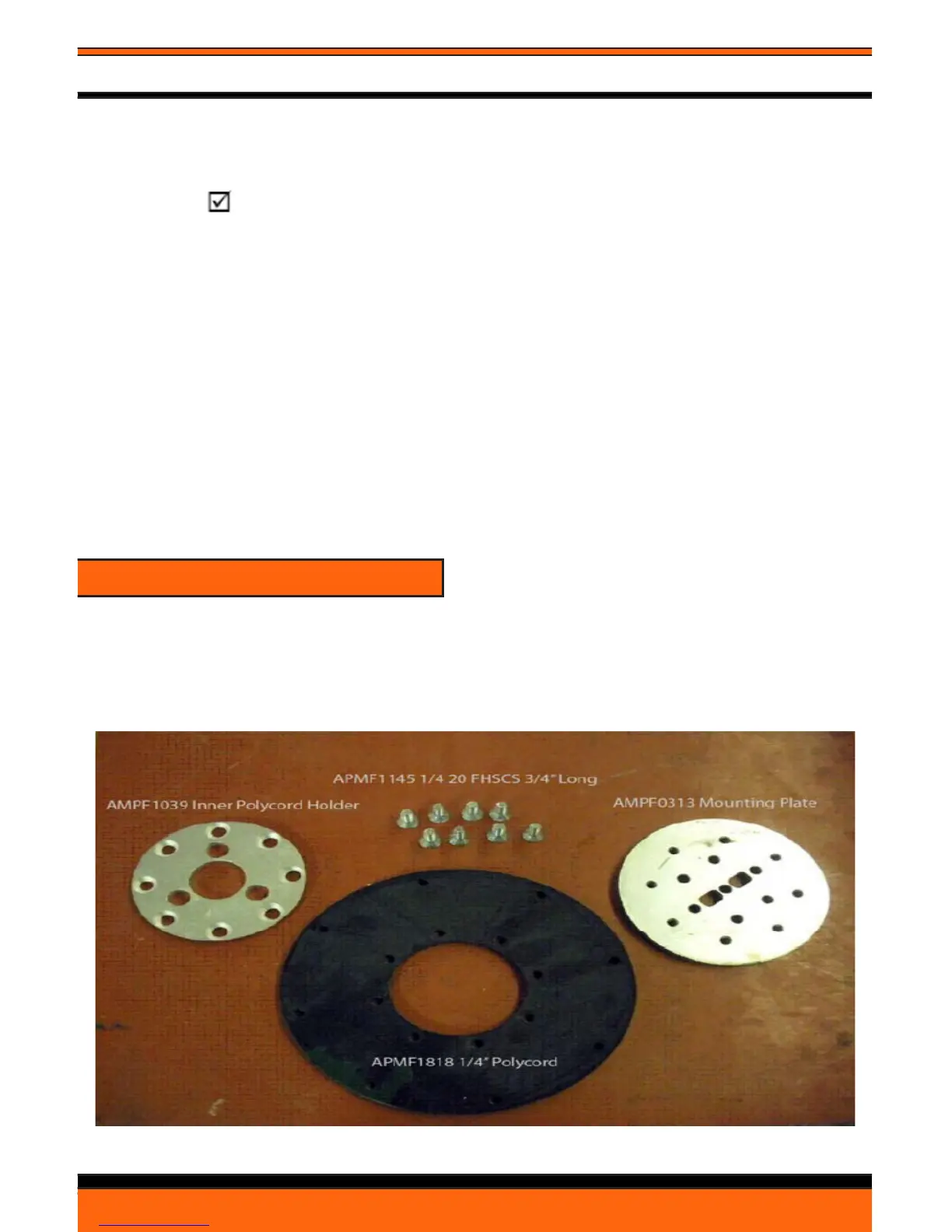

Components: First Assembly
Flex Head Assembly Instructions- Using ¼ “ Diaphragm material
FLEX HEAD ASSEMBLY INSTRUCTIONS
