Illustrated Features

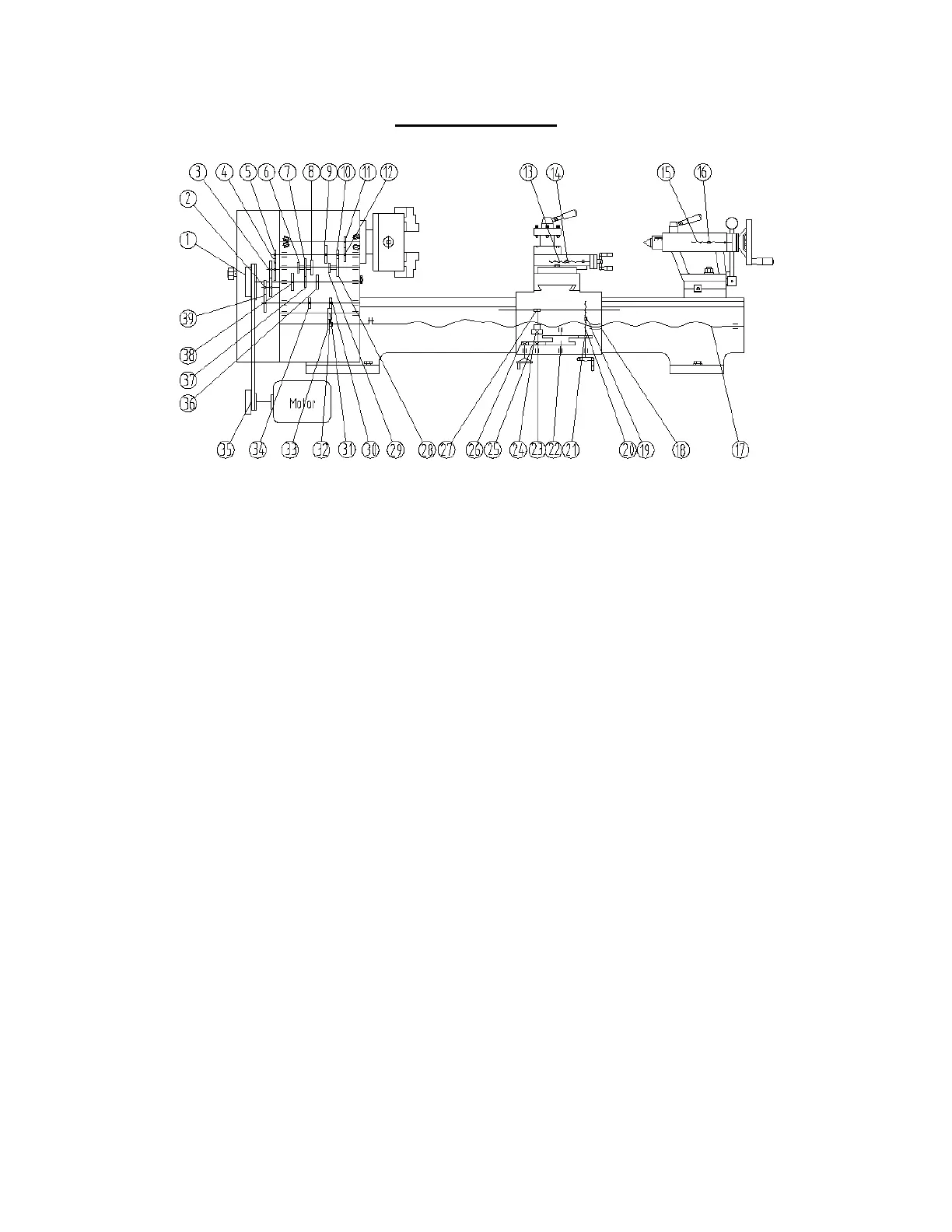

Fig 1. Driving system drawing.
01. Input Pulley 21. Gear
02. Gear Change 22. Gear
03. Gear Change 23. Gear
04. Gear Change 24. Worm Gear
05. Gear Change 25. Worm
06. Gear 26. Gear
07. Gear 27. Gear
08. Gear 28. Gear
09. Gear 29. Gear
10. Gear 30. Gear
11. Spindle Gear 31. Gear
12. Gear 32. Gear
13. Tool Post Lead Screw 33. Gear
14. Tool Post Nut 34. Gear
15. Tail Stock Lead Screw 35. Motor Pulley
16. Tool Post Nut 36. Gear
17. Longitudinal Screw 37. Gear
18. Longitudinal Nut 38. Gear
19. Cross Nut 39. Gear
20. Cross Lead Screw
