Operating Controls
SUMMARY:
REFER TO THE DIAGRAM BELOW FOR THE BL330E operation controls.







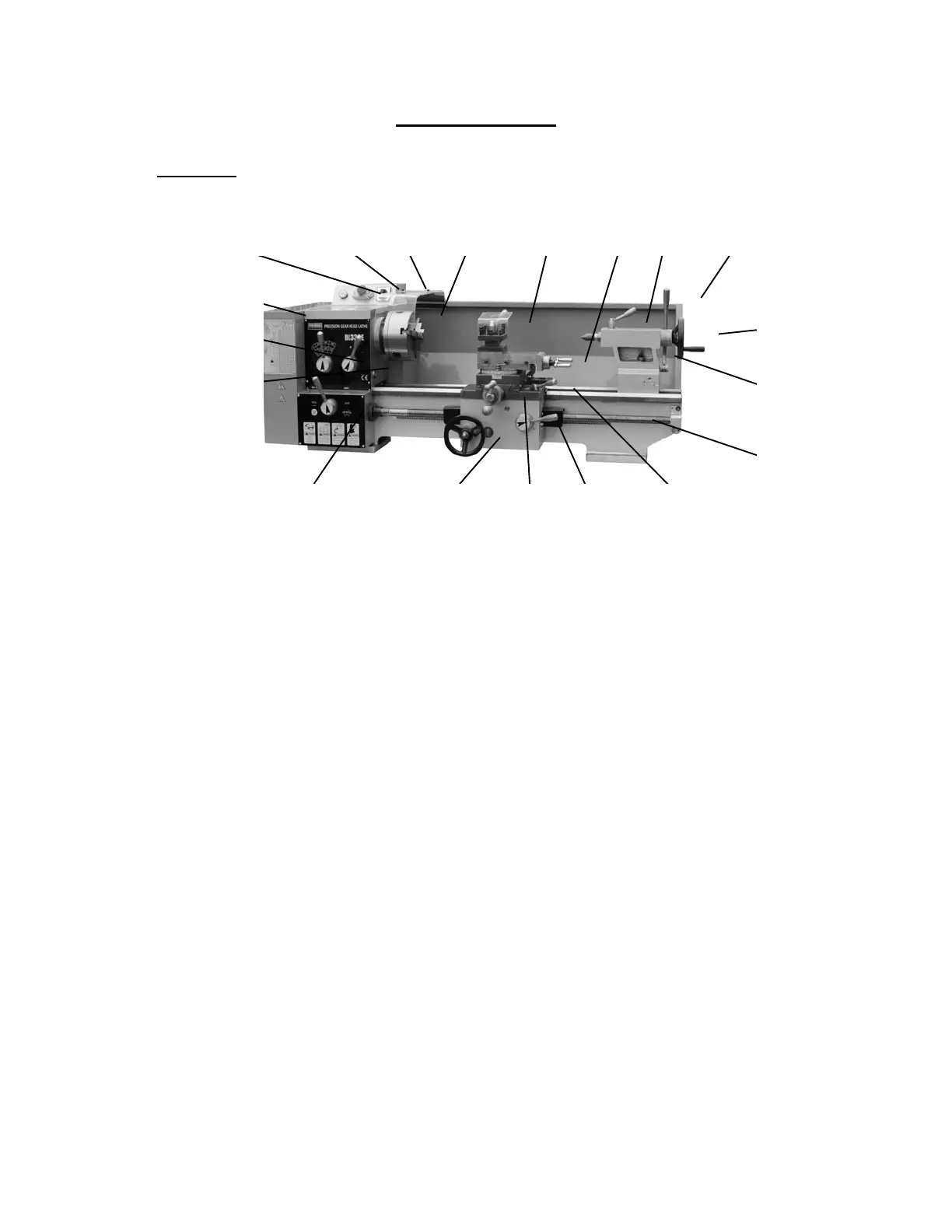

 Fig 8. Operation Parts Fig.

1. Handler of Spindle Speed Change A
2. Handler of Spindle Speed Change B
3. Change Gear Box
4. Power Indictor
5. Emergency Stop Switch
6. Forward-Stop-Reverse Switch
7. Self-centering 3 Jaw Chuck
8. Handler of 4-way Tool Post
9. Tool Post Feeding Handler
10. Handle Lock for tailstock center
11. Lever to lock Tailstock
12. Tailstock hand-wheel
13. Tailstock Offset Screw
14. Main Lead-screw
15. Longitudinal-cross feed handle
16. Handler of Auto-Feed (Half Nut)
17. Carriage Cross Feed hand wheel
18. Apron feed hand-wheel
19 Handle of forward/reverse for lead screw


4567891011
3

2

1
1918171615
12


13


14
