Craftex CX110 - Assembly

8
ASSEMBLY
Follow the instructions below, to assemble
your CX110:
Take the accessories and coolant tank out
of the stand and set aside for later use.

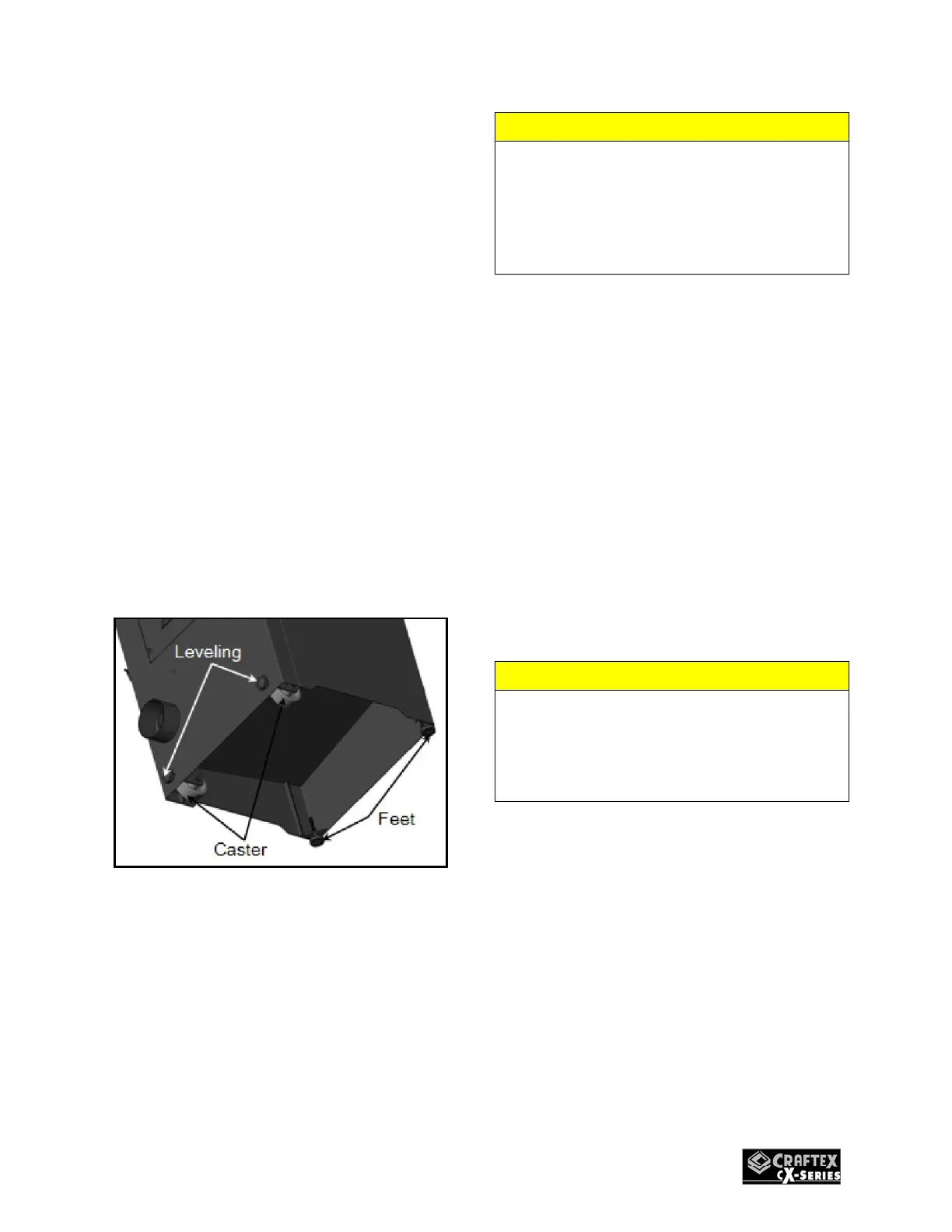

Place the stand on the floor where you want
to place your machine. Use lifting straps
and position it around the collar of the
moveable jaw and motor as shown in
figure-2.
Figure-2 Lifting straps around the motor
and the jaw of the CX110
Once the lifting straps are properly
positioned around the machine and the
forks of the fork truck, lift the machine.
Align the four setscrews on the base of the
machine with the four holes on the stand
and lower the machine onto the stand.
Direct the setscrews into the holes and
position the machine onto the stand. See
figure-3.
Figure-3 Securing the machine onto the
stand
Attach the coolant tank bracket to the inside
of the stand and secure it using screws and
washers provided. See figure-4.
Figure-4 Installing the coolant tank bracket
Use a wrench and remove the hex head
screw from the oil fill hole shown in figure-5.
Figure-5 Removing the screw from the oil
fill hole
