10

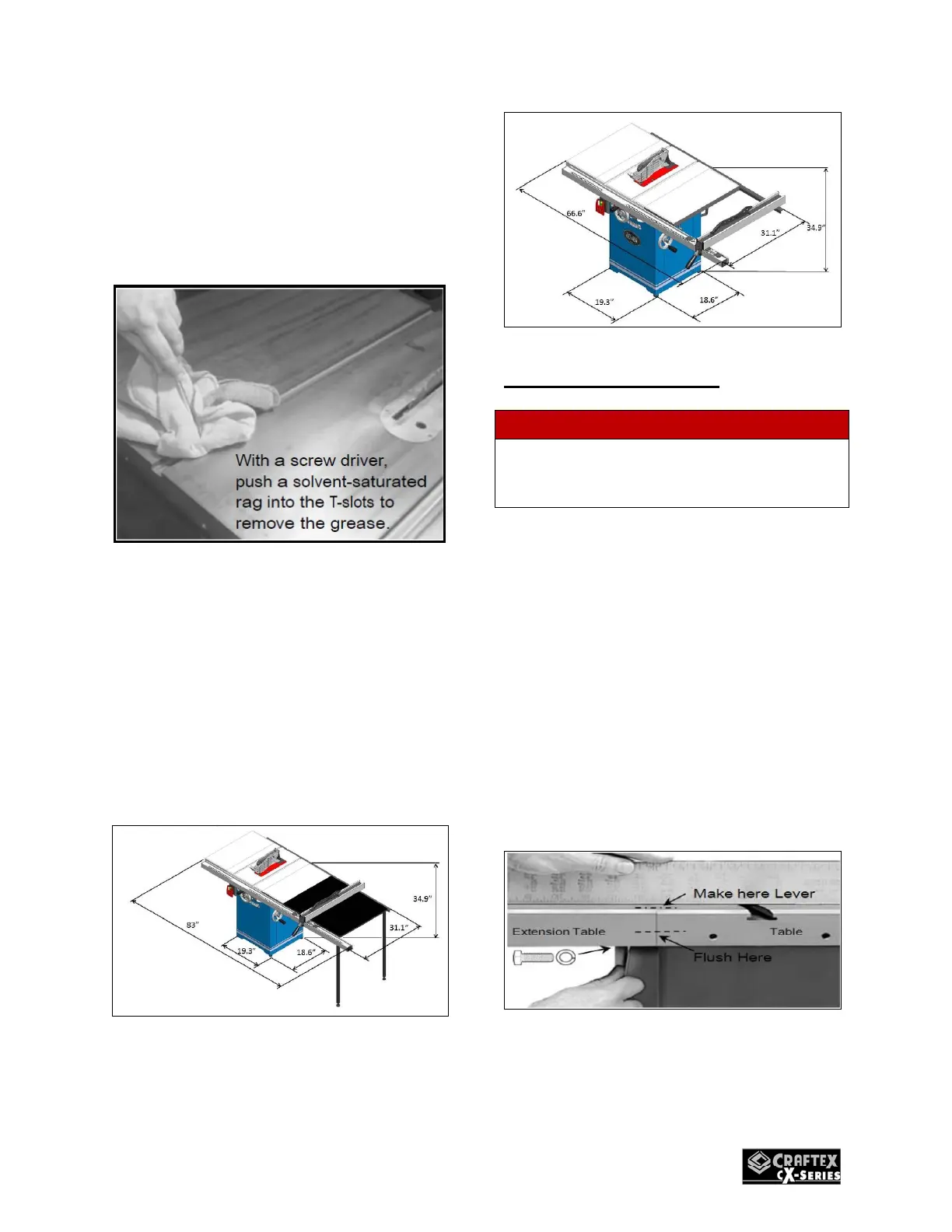

If the mating surface of the extension wing
tilts up, use a masking tape along the top
edge if the main table to shim the extension
wing down. See figure-8.
Figure-8 Using masking tape to shim the
extension wing down
When the wings are reinstalled, remove the
excessive masking tape using a blade.
Install the motor cover to the side of the
cabinet by sliding the hinge posts on the
hinges and locking using the screw
provided as shown in figure-9.
Figure-9 Installing the motor cover
OPTIONAL FENCE & RAILS
Attach the front fence rail to the table and
extension wings using bolts, nuts and
washers provided. See figure-10.
Figure-10 Installing front fence rail
Now, install the fence rail tube onto the
front rail using cap screws, washers and flat
washers provided. See figure-11.
Figure-11 Installing the fence rail tube
Attach the rear fence rail to the table and
the extension wings. Secure it using screws
and washers provided. See figure-12.
Figure-12 Installing the rear fence rail
