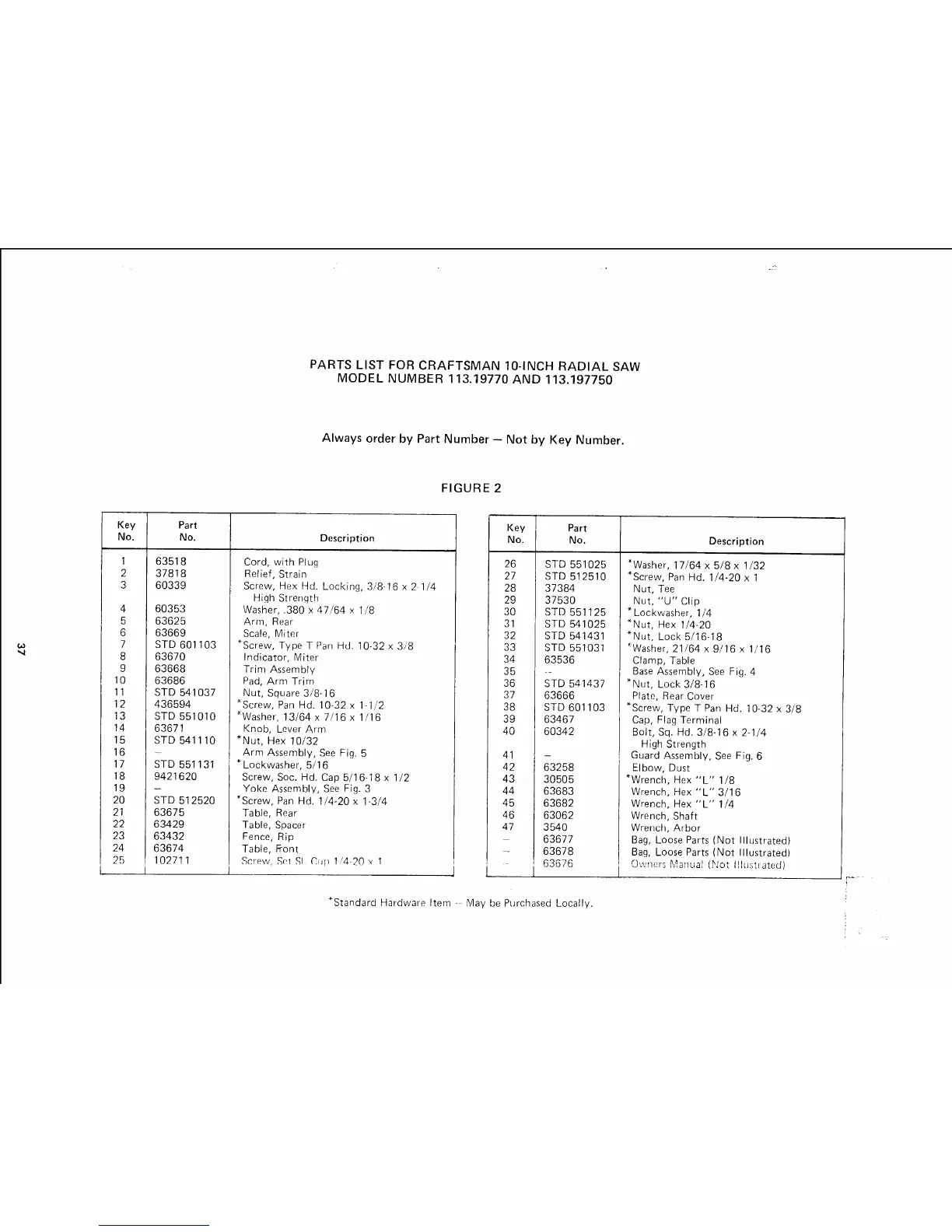

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW
MODEL NUMBER 113.19770 AND 113.197750
Always order by Part Number- Not by Key Number.
FIGURE 2
6,}
"4
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Part
No. Description
63518
37818
60339
60353
63625
63669
STD 6O1103
63670
63668
63686
STD 541037
436594
STD 551010
63671
STD 541110
STD 551131
9421620
STD 512520
63675
63429
63432
63674
102711
Cord, with Plug
Relief, Strain
Screw, Hex Hd. Locking, 3/8-16 x 2 1/4
High Strength
Washer, .380 x 47/64 x 1/8
Arm, Rear
Scale, Miter
*Screw, Type T Pan Hd. 10-32 x 3/8
Indicator, Miter
Trim Assembly
Pad, Arm Trim
Nut, Square 3/8-16
*Screw, Pan Hd. 10-32 x 1-1/2
*Washer, 13/64 x 7/16 x 1/16
Knob, Lever Arm
*Nut, Hex 10/32
Arm Assembly, See Fig. 5
* Lockwasher, 5/16
Screw, Soc. Hd. Cap 5/16-18 x 1/2
Yoke Assembly, See Fig. 3
*Screw, Pan Hd. 1/4-20 x 1-3/4
Table, Rear
Table, Spacer
Fence, Rip
Table, Front
Screw, Set SI C_Jp 1/4-?_0 × 1
2
2
2
2
3q
3
3
3:
3,
3!
31
3
3_
3!
4(
4
4:
4:
4,
4_
4(
4:
_y Part
3. No. Description
STD 551025
STD 512510
37384
37530
STD 551125
STD 541025
STD 541431
STD 551031
63536
STD 541437
63666
STD 601103
63467
60342
w
63258
30505
63683
63682
63062
3540
63677
63678
63676
*Washer, 17/64 x 5/8 x 1/32
*Screw, Pan Hd. 1/4-20 x 1
Nut, Tee
Nut, "U" Clip
* Lockwasher, 1/4
*Nut, Hex 1/4-20
*Nut, Lock 5/16-18
*Washer, 21/64 x 9/16 x 1/16
Clamp, Table
Base Assembly, See Fig. 4
*Nut, Lock 3/8-16
Plate, Rear Cover
*Screw, Type T Pan Hd. 10-32 x 3/8
Cap, Flag Terminal
Bolt, Sq. Hd. 3/8-16 x 2-1/4
High Strength
Guard Assembly, See Fig. 6
Elbow, Dust
*Wrench, Hex "L" 1/8
Wrench, Hex "L" 3/16
Wrench, Hex "L" 1/4
Wrench, Shaft
Wrench, Arbor
Bag, Loose Parts (Not Illustrated)
Bag, Loose Parts (Not Illustrated)
Owners Manual ([_Jot Illustrated)
*Standard Hardware Item - May be Purchased Locally.
