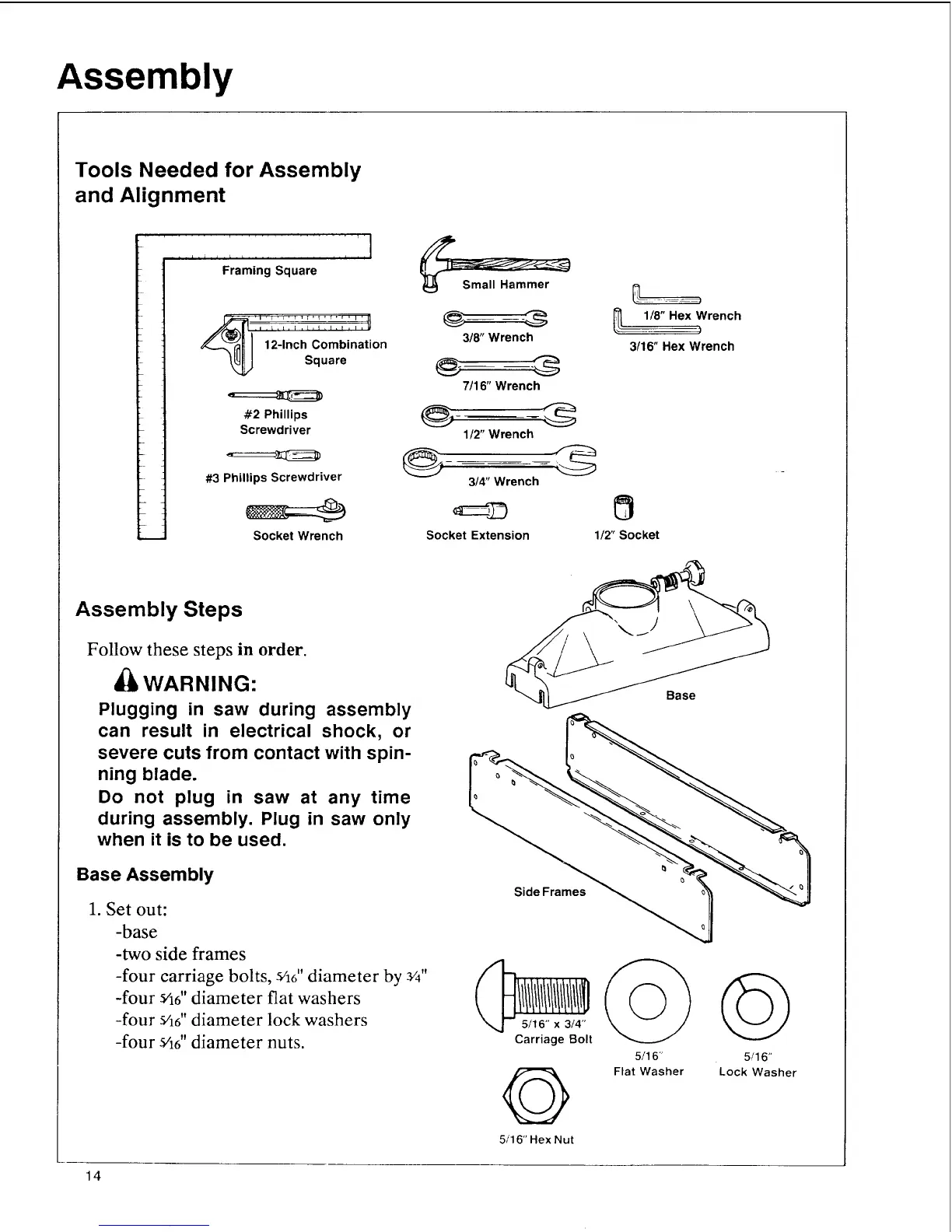

Assembly
Tools Needed for Assembly
and Alignment
1 • *l
iI ,lli I ,L,L,I ,i ,i , i, I,_,
Framing Square
12-Inch Combination
Square
#2 Phillips
Screwdriver
#3 Phillips Screwdriver
Socket Wrench
3/8" Wrench
@ G
7/16" Wrench
1/2" Wrench
6
3/4" Wrench
Socket Extension 1/2" Socket
_ 1/8" Hex Wrench
3/16" Hex Wrench
Assembly Steps
Follow these steps in order.
WARNING:
Plugging in saw during assembly
can result in electrical shock, or
severe cuts from contact with spin-
ning blade.
Do not plug in saw at any time
during assembly. Plug in saw only
when it is to be used.
Base Assembly
1. Set out:
-base
-two side frames
-four carriage bolts, _¢16"diameter by _4"
-four g16" diameter flat washers
-four s/16" diameter lock washers
-four s/16" diameter nuts.
o
0
5/16" x 3/4"
Carriage Bolt
5/16" 5/16"
Flat Washer Lock Washer
5/16" Hex Nut
14
To Next Page
