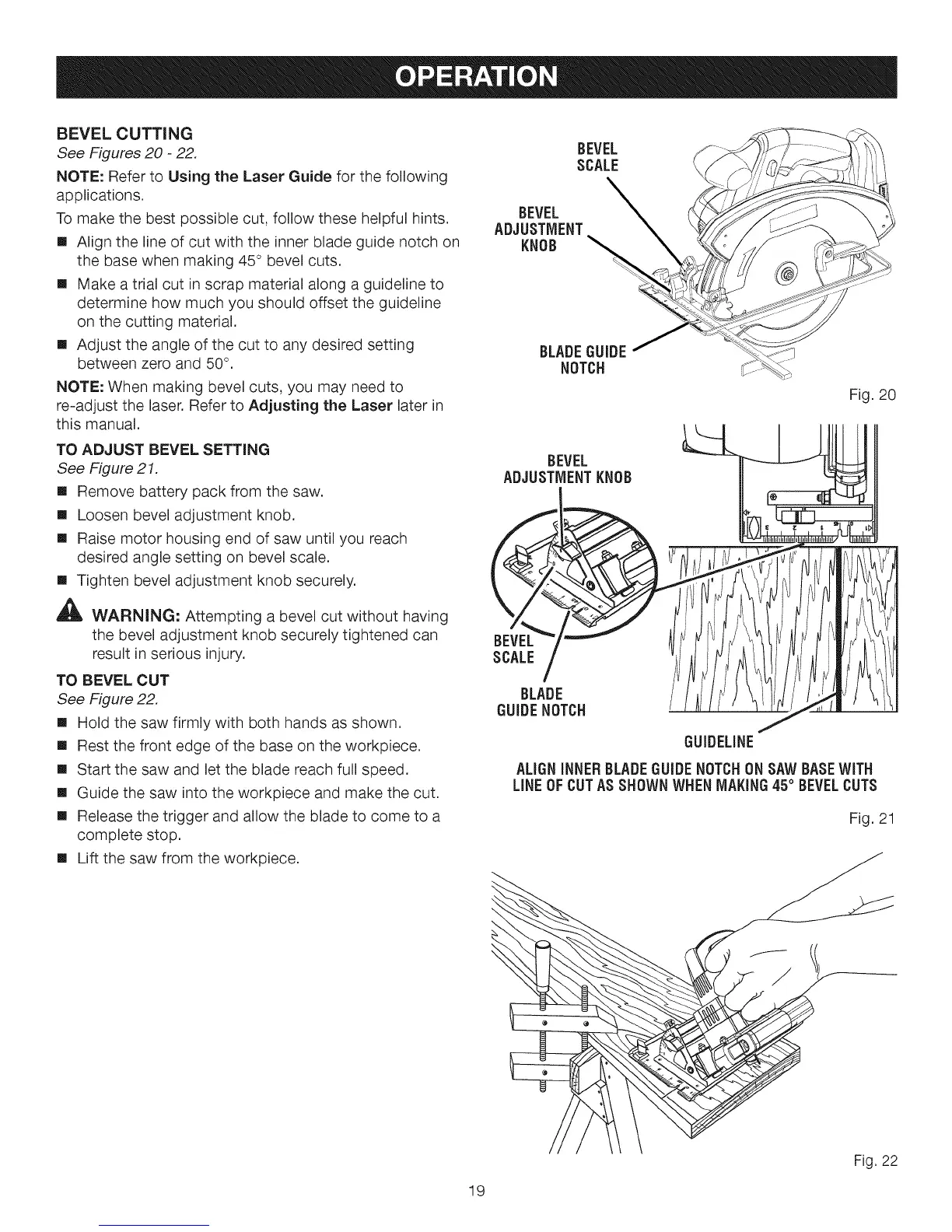

BEVELCUTTING
See Figures 20 - 22.
NOTE: Refer to Using the Laser Guide for the following
applications.
To make the best possible cut, follow these helpful hints.
[] Align the line of cut with the inner blade guide notch on
the base when making 45° bevel cuts.
[] Make a trial cut in scrap material along a guideline to
determine how much you should offset the guideline
on the cutting material.
[] Adjust the angle of the cut to any desired setting
between zero and 50°.
NOTE: When making bevel cuts, you may need to
re-adjust the laser. Refer to Adjusting the Laser later in
this manual.
TO ADJUST BEVEL SETTING
See Figure 21,
[] Remove battery pack from the saw.
[] Loosen bevel adjustment knob.
[] Raise motor housing end of saw until you reach
desired angle setting on bevel scale.
[] Tighten bevel adjustment knob securely.
_ WARNING." Attempting a bevel cut without having
the bevel adjustment knob securely tightened can
result in serious injury.
TO BEVEL CUT
See Figure 22,
[] Hold the saw firmly with both hands as shown.
[] Rest the front edge of the base on the workpiece.
[] Start the saw and let the blade reach full speed.
[] Guide the saw into the workpiece and make the cut.
[] Release the trigger and allow the blade to come to a
complete stop.
[] Lift the saw from the workpiece.
BEVEL
SCALE
BEVEL
ADJUSTMENT
KNOB
BLADEGUIDE
NOTCH
BEVEL
Fig. 20
ADJUSTMENTKNOB
BEVEL
SCALE
BLADE
GUIDENOTCH
GUiDELiNE
ALIGNINNERBLADEGUIDENOTCHONSAWBASEWiTH
LiNEOFCUTAS SHOWNWHENMAKING45° BEVELCUTS
Fig. 21
19
Fig. 22
