WARNING: Before performing any adjustment,
remove blade from saw. Failure to do so could result
in possible serious personal injury.
WARNING: DO NOT point the laser at yourself or
others. Class Ilia lasers will burn your retinas and
could cause serious injury to your eyes.
A
WARNING: Use of controls or adjustments or
performance other than those specified herein could
result in hazardous radiation exposure.

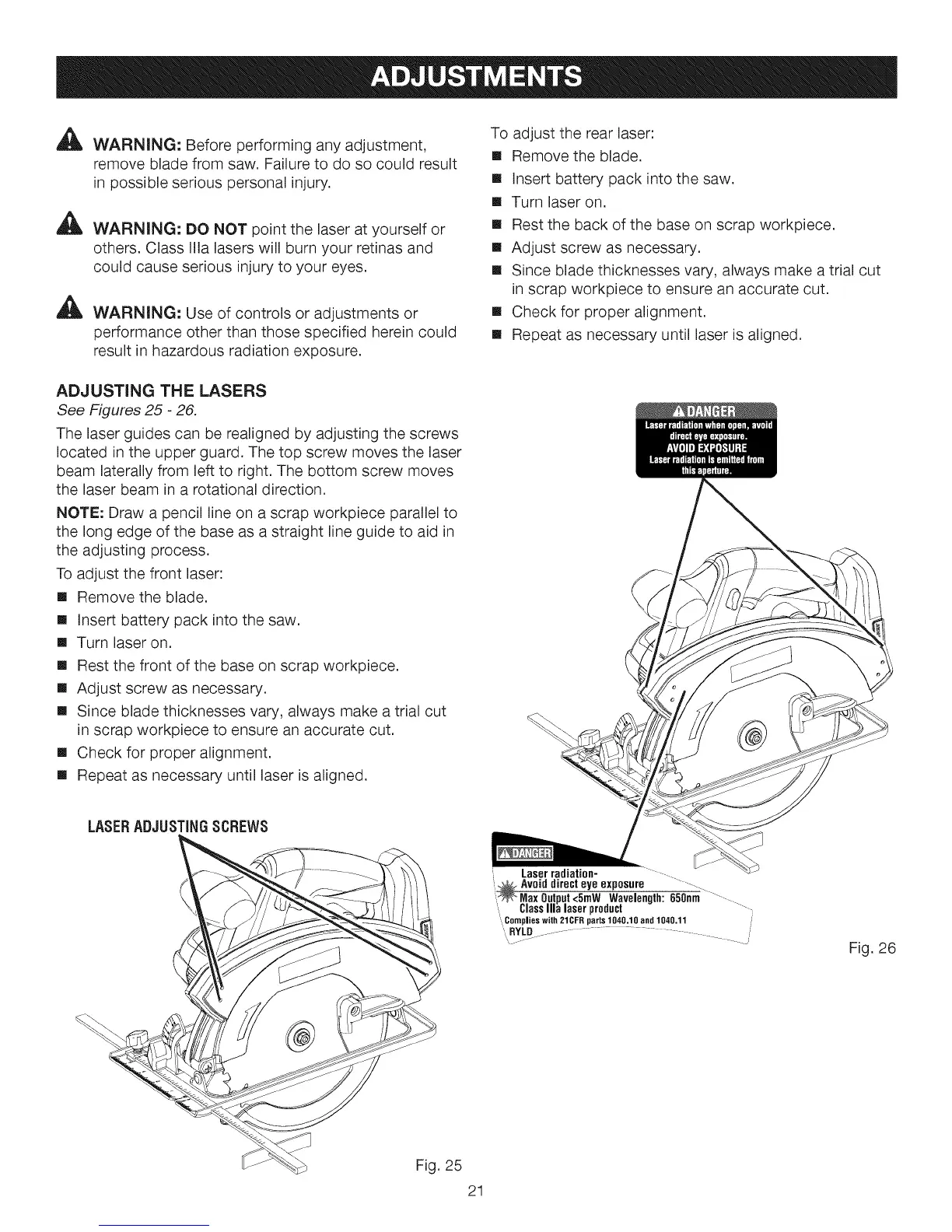

ADJUSTING THE LASERS
See Figures 25 - 26,
The laser guides can be realigned by adjusting the screws
located in the upper guard. The top screw moves the laser
beam laterally from left to right. The bottom screw moves
the laser beam in a rotational direction.
NOTE: Draw a pencil line on a scrap workpiece parallel to
the long edge of the base as a straight line guide to aid in
the adjusting process.
To adjust the front laser:
[] Remove the blade.
[] Insert battery pack into the saw.
[] Turn laser on.
[] Rest the front of the base on scrap workpiece.
[] Adjust screw as necessary.
[] Since blade thicknesses vary, always make a trial cut
in scrap workpiece to ensure an accurate cut.
[] Check for proper alignment.
[] Repeat as necessary until laser is aligned.
To adjust the rear laser:
[] Remove the blade.
[] Insert battery pack into the saw.
[] Turn laser on.
[] Rest the back of the base on scrap workpiece.
[] Adjust screw as necessary.
[] Since blade thicknesses vary, always make a trial cut
in scrap workpiece to ensure an accurate cut.
[] Check for proper alignment.
[] Repeat as necessary until laser is aligned.
LASERADJUSTINGSCREWS
Laserradiation- " .......
,_ Avoiddirect eye exposure ............
"_" _u__gth: BSOnm.............
.......ClassIlia maserpr0duct .....
Complies with 21CFR parts1040.10 and 1040.11
RYLD ................................
Fig. 26
Fig. 25
21
