Craftsman 11585 - C3 19.2 Volt 7-1/4 in. Circular Saw User Manual

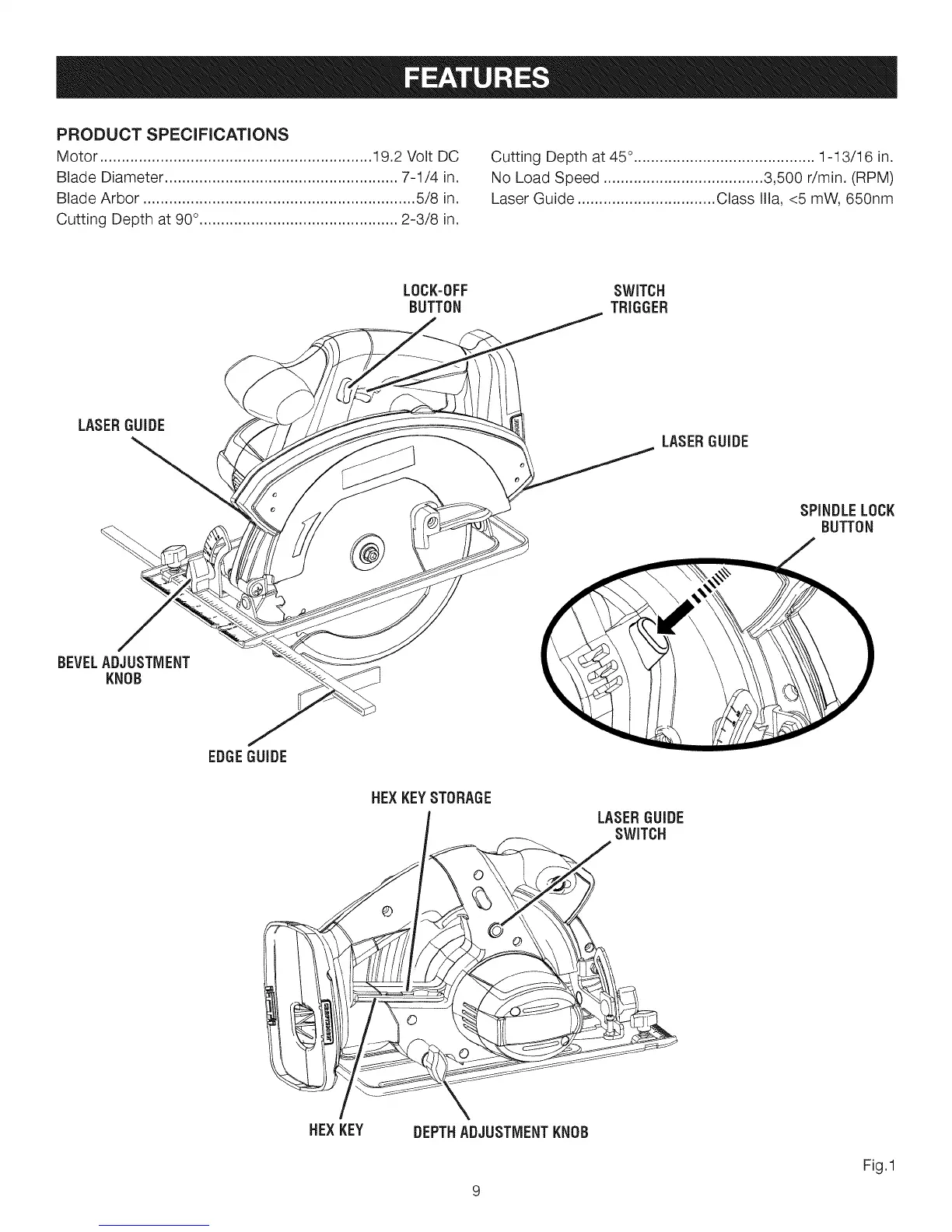

PRODUCT SPECIFICATIONS
Motor ............................................................... 19.2 Volt DC
Blade Diameter ...................................................... 7-1/4 in.
Blade Arbor ............................................................... 5/8 in.
Cutting Depth at 90°.............................................. 2-3/8 in.
Cutting Depth at 45 °.......................................... 1-13/16 in.
No Load Speed ..................................... 3,500 r/min. (RPM)
Laser Guide ................................ Class Ilia, <5 mW, 650nm
LOCK-0FF
BUTTON
SWITCH
TRIGGER
LASERGUIDE
LASERGUIDE
SPINDLELOCK
BUTTON
BEVELADJUSTMENT
KNOB
EDGEGUIDE
HEXKEYSTORAGE
LASERGUIDE
SWITCH
HEX KEY
DEPTH ADJUSTMENT KNOB
Fig.1
