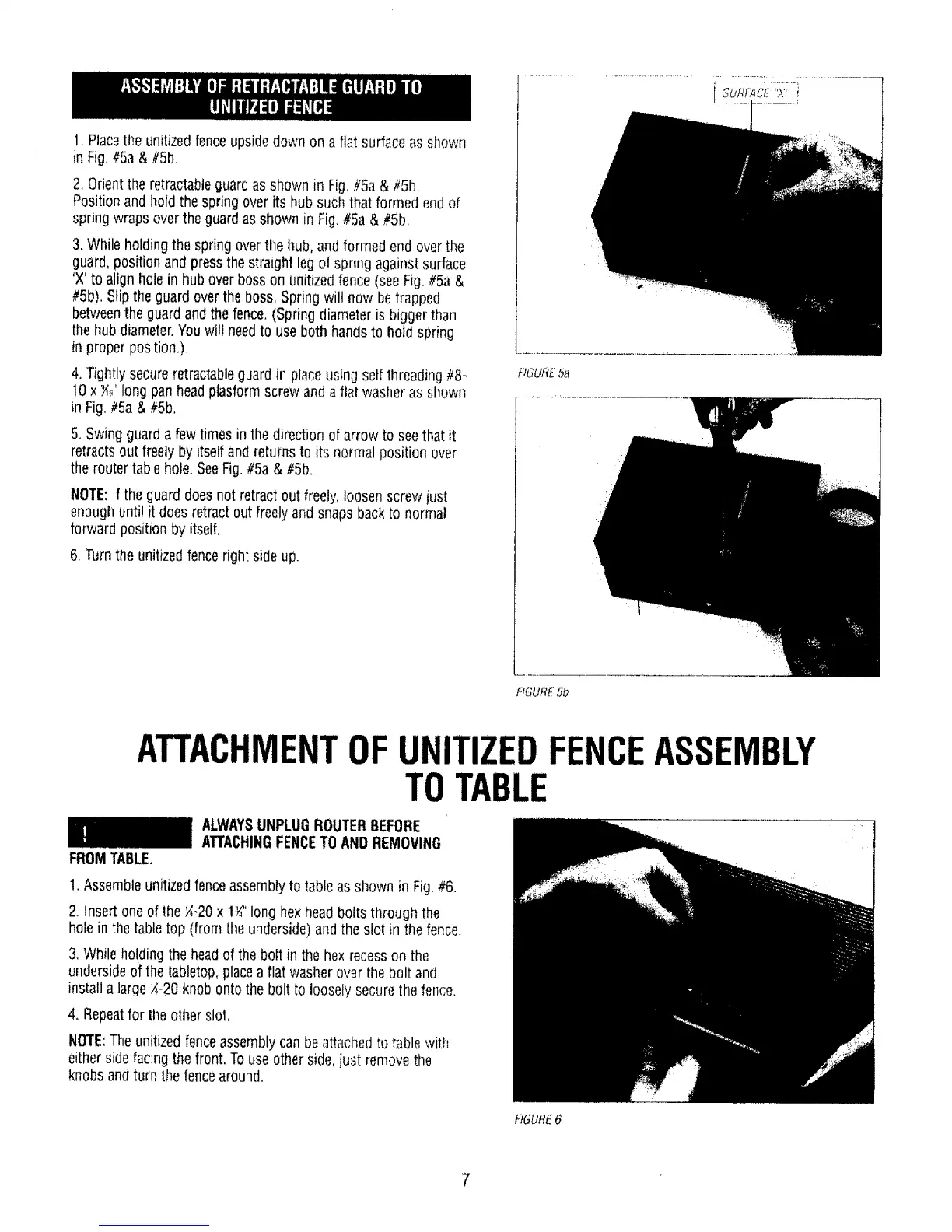

1. Placethe unitizedfenceupsidedownon a flat surface as shown
in Fig.#5a & #Sb.
2.Orienttheretractableguardas shown in Fig,#5a & #5b.
Positionand hold the springoverits hub such that formed end of
spring wrapsovertheguard asshown in Fig.#So& #5b.
3. Whileholdingthe springoverthe hub,and formed end overthe
guard,positionand pressthe straight legof springagainstsurface
'X' to align holein hubover bosson unitizedfence(seeFig.#5a &
#5b). Slipthe guardover the boss, Spring wil! now betrapped
betweenthe guardand thefence.(Spring diameteris biggerthan
thehub diameter.Youwill needto useboth handsto hold spring
in proper position,).
4,Tightlysecureretractableguardin placeusing set! threading #8-
10 x_" long panheadptasformscrew anda flat washer as shown
in Fig.#5a & #5b,
5, Swingguarda few timesin the direction of arrow to see that it
retractsout freelyby itselfand returnsto its normal positionover
the routertable hole. SeeFig.#5a & #5b.
NOTE:If the guarddoes not retractout freely,loosenscrewjust
enoughuntil it doesretract out freelyand snapsback to normal
forward position by itself,
6.Turnthe unitizedfenceright side up.
f.'K._URE5a
FIGURE5b
ATTACHMENTOFUNITIZEDFENCEASSEMBLY
TOTABLE
FROMTABLE.
ALWAYSUNPLUGROUTERBEFORE
ATTACHINGFENCETOANDREMOVING
1.Assembleunitizedfenceassemblyto tableas shown in Fig.#6.
2. Insertoneof the_-20 x 1_" long hexheadbolts throughthe
holein thetabletop (from the underside)and theslot in the fence.
3.Whileholding theheadof the bolt in the hex recesson the
undersideof the tabletop,placea flat washeroverthebolt and
installa large'_-20knobontothe bolt to looselysecurethefen_:e.
4, Repeatfor tile other slot,
NOTE:The unitizedfenceassemblycanbe attachedto bible with
eithersidefacingthe front, Touseother side,justremovethe
knobsandturn the fencearound.
RGURE6
7
