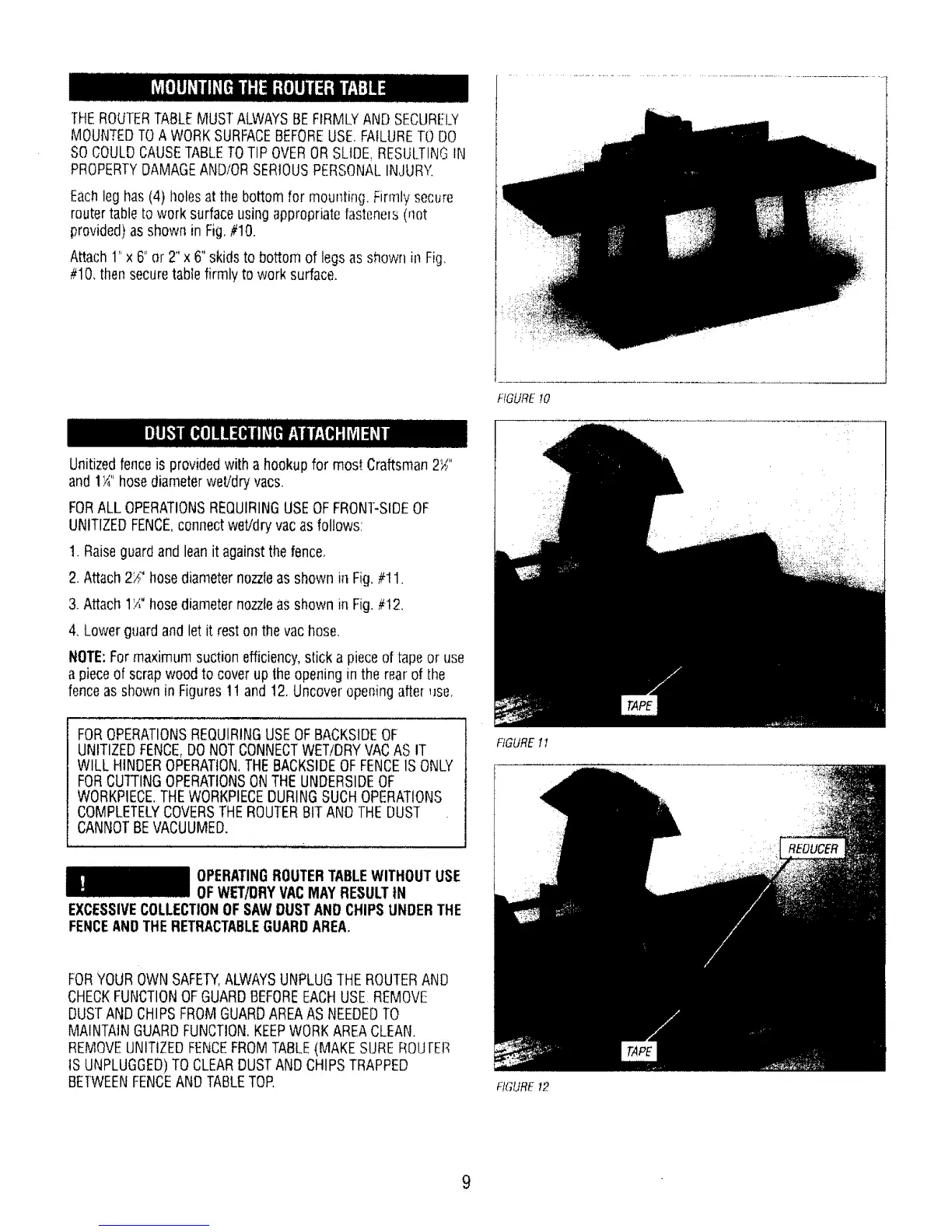

Craftsman 25481 - MOUNTING AND DUST COLLECTION; Mounting the Router Table Securely; Dust Collecting Attachment Setup

THEROUTERTABLEMUSTALWAYSBEFIRMLYANDSECURELY
MOUNTEDTOA WORKSURFACEBEFOREUSE.FAILURETODO
SOCOULDCAUSETABLETOTIP OVERORSLIDE,RESUL.TINGIN
PROPERTYDAMAGEANDIORSERIOUSPERSONA[.INJURY,
Eachleghas (4} lloles at the bottom for mounting. Firmlysecure
routertabletowork surfaceusingappropriate fasteneis(not
provided)as shownin Fig,#10.
Attach1"x 6"or 2" x 6"skidsto bottom of legsasshown in Fig.
#10.thensecuretablefirmly to work surface.
FIGUREI0
Unitizedfenceis providedwith a hookupfor most Craftsman2_"
and 1¼"hosediameterwet!drj vats.
FORALL OPERATIONSREQUIRINGUSEOFFRONT-SIDEOF
UNITIZEDFENCE,connectwet/dry vacas follows:
1. Raiseguardand leanit againstthe fence,
2. Attach2_" hosediameternozzleas shown in Fig.#'! 1.
3.Attach 17" hosediameternozzleas shown in Fig. #12,
4. Lowerguard andlet it rest on the vac hose.
NOTE'.Formaximum suctionefficiency,stick a pieceof tapeor use
a pieceOfscrapwoodto cover upthe openingin therear of the
fenceas shownin Figures1! and 12. Uncoveropeningafter use,
FOROPERATIONSREQUIRINGUSEOFBACKSIDEOF
UNITIZEDFENCE,DONOTCONNECTWET/DRYVACAS IT
WILL HINDEROPERATION,THEBACKSIDEOFFENCE1SONLY
FORCUTTINGOPERATIONSONTHEUNDERSIDEOF
WORKPIECETHEWORKPIECEDURINGSUCHOPERATIONS
COMPLETELYCOVERSTHEROUTERBITAND THEDUST
CANNOTBEVACUUMED.
OPERATINGROUTERTABLEWITHOUTUSE
OFWET/DRYVACMAYRESULTtN
EXCESSIVECOLLECTIONOFSAWDUSTAND CHIPSUNDERTHE
FENCEANDTHERETRACTABLEGUARDAREA,
FORYOUROWNSAFETY,ALWAYSUNPLUGTHE ROUTERAND
CHECKFUNCTIONOFGUARDBEFOREEACHUSE REMOVE
DUSTANDCHIPSFROMGUARDAREAASNEEDEDTO
MAINTAINGUARDFUNCTION,KEEPWORKAREACLEAN.
REMOVEUNITIZEDFENCEFROMTABLE(MAKESUREROUFEr_
tSUNPLUGGED)TO CLEAROUSTANDCHIPSTRAPPED
BElWEENFENCEANDTABLETOE
FIGURE11
FIGURE 12
