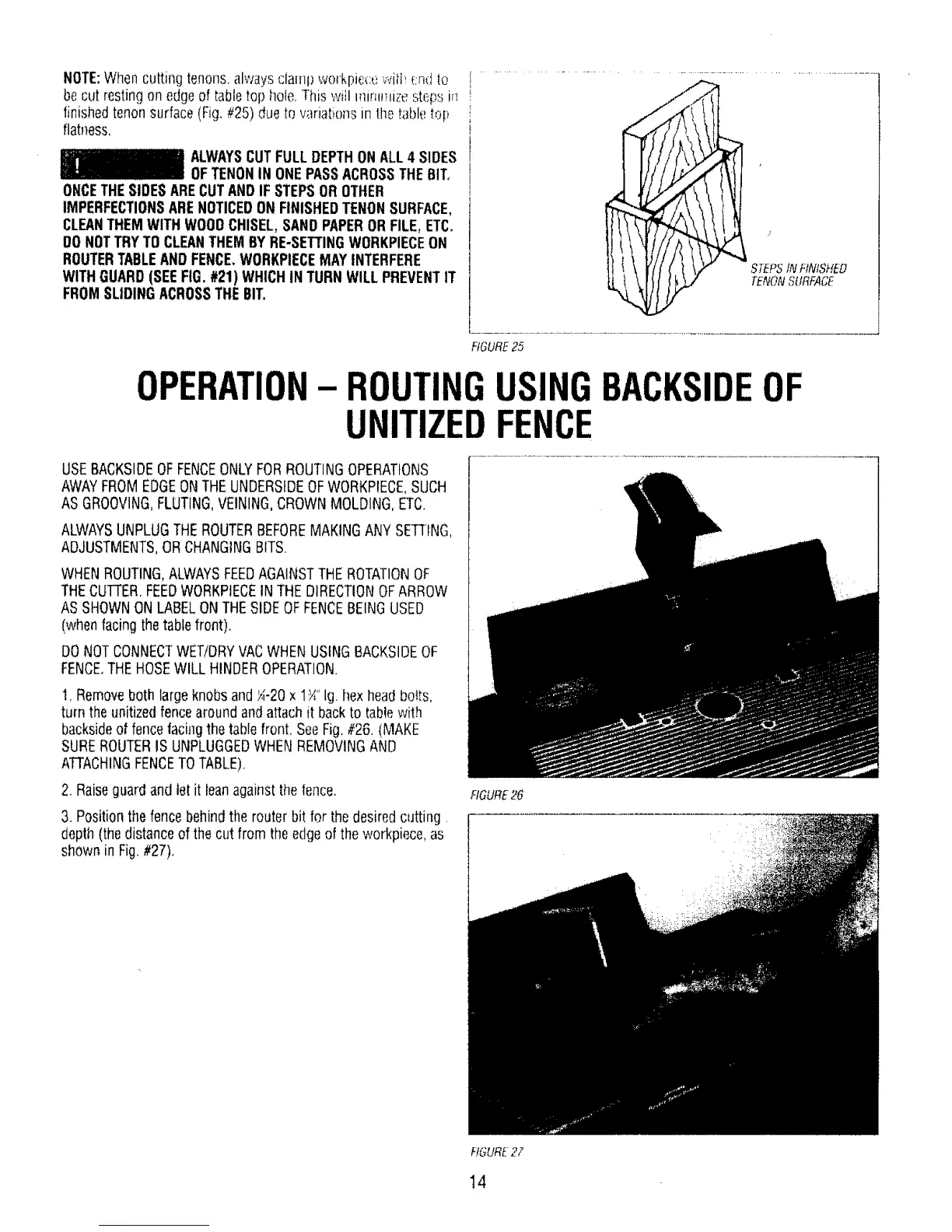

NOTE:Whencutting tenons,alwaysclamp work[)ic(:_,_,_.Ati,(:ndto
becut restingon edgeof tabletop hote,1his will inmnuizeste_sm
finishedtenor]surface (Fig.#25) dueto w.triationsin lhe tabletop
flatness,
ALWAYSCUTFULLDEPTHON ALL4 SIDES
OFTENONIN ONEPASSACROSSTHE6IT,
ONCETHESIDESARECUTANDIF STEPSOROTHER
IMPERFECTIONSARENOTICEDON FINISHEDTENONSURFACE,
CLEANTHEMWITHWOO0CHISEL,SANDPAPERORFILE,ETC.
DONOTTRYTO CLEANTHEMBYRE-SETTINGWORKPIECEON
ROUTERTABLEANDFENCE,WORKPIECEMAYINTERFERE
WITHGUARD(SEEFIG.#21) WHICHiN TURNWILLPREVENTIT
FROMSLIDINGACROSSTHEBIT.
STEPStNFINISHED
TENONSURFACE
FIGURE25
OPERATION
ROUTINGUSINGBACKSIDEOF
UNITIZEDFENCE
USEBACKSIDEOFFENCEONLYFORROUTINGOPERATIONS
AWAYFROMEDGEONTHEUNDERSIDEOFWORKPIECE,SUCH
AS GROOVING,FLUTING,VEINING,CROWNMOLDING,ETC,
ALWAYSUNPLUGTHEROUTERBEFOREMAKINGANY SETTING,
ADJUSTMENTS,ORCHANGINGBITS.
WHENROUTING,ALWAYSFEEDAGAINSTTHEROTATIONOF
THECUTi'ER.FEEDWORKPtECEINTHE DIRECTIONOFARROW
ASSHOWNON LABELONTHESIDEOFFENCEBEINGUSED
(whenfacingthetablefront),
DONOTCONNECTWET/DRYVACWHENUSINGBACKSIDEOF
FENCE,THEHOSEWILL HINDEROPERATION.
t. Removeboth largeknobsand k._-20x 1_" lg. hexheadbotts,
turn theunitizedfence aroundandattach it backto tablewith
backsideof fencefacingthetablefront. SeeFig.#26. (MAKE
SUREROUTERISUNPLUGGEDWHENREMOVINGAND
ATTACHINGFENCETOTABLE).
2. Raiseguardand let it leanagainst,thefence.
3. Positionthefencebehindthe routerbit for the desiredcutting.
depth(thedistanceof the cut from the edgeof the workpiece,as
shown in Fig.#27).
FIGURE26
FIGURE27
14
