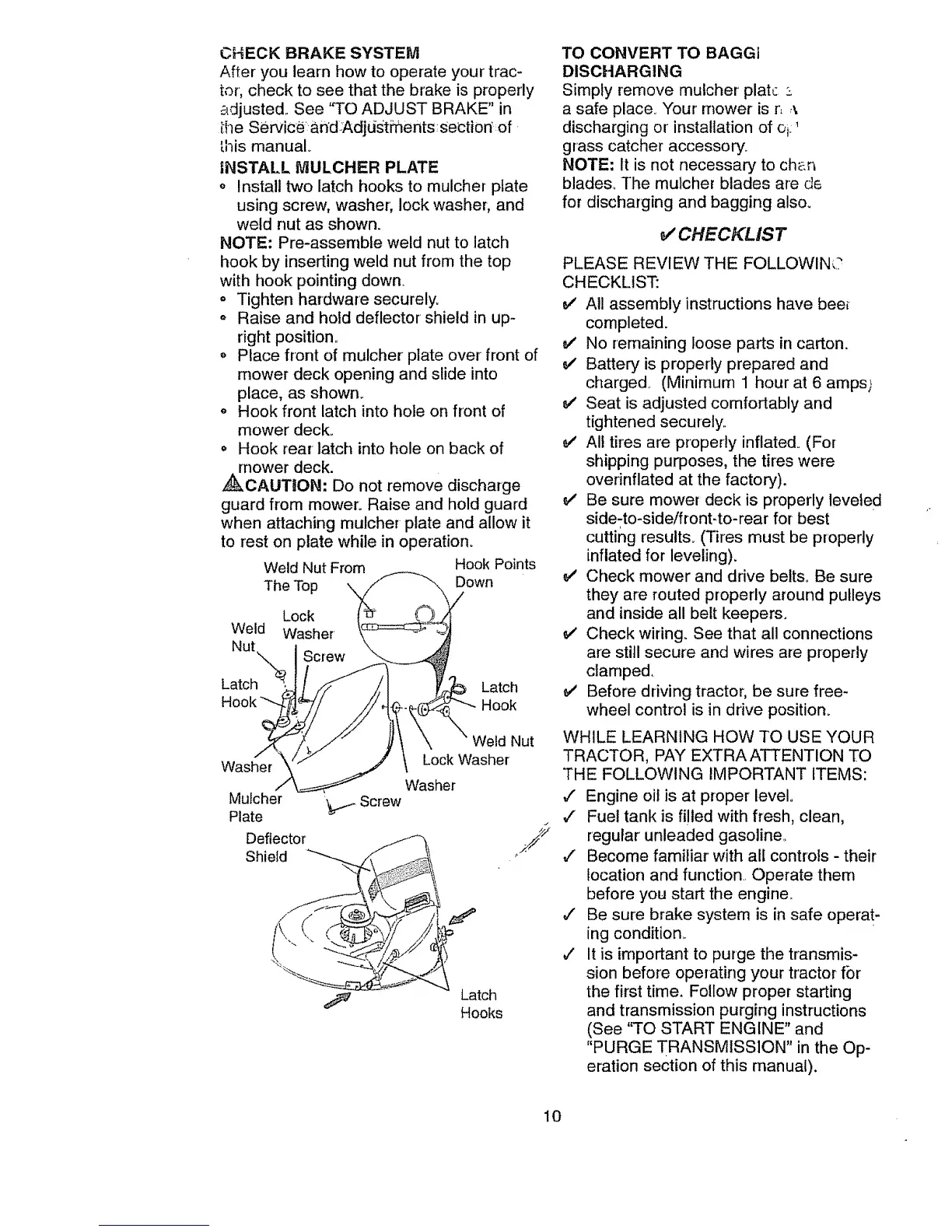

CHECKBRAKE SYSTEM
After you learn how to operate your' trac-
tor, check to see that the brake is properly
adjusted. See 'q'O ADJUST BRAKE" in
fi'le ServiCe an'd.Adjds'tments:Sectiori of
[his manual
INSTALL MULCHER PLATE
o Install two latch hooks to mulcher plate
using screw, washer; lock washer, and
weld nut as shown.
NOTE: Pre-assernbte weld nut to latch
hook by inserting weld nut from the top
with hook pointing down.
o Tighten hardware securely.
= Raise and hold deflector shield in up-
right position.
o Place front of mulcher plate over front of
mower deck opening and slide into
place, as shown..
,, Hook front latch into hole on front of
mower deck.
,, Hook rear latch into hole on back of
,_,nower deck.
CAUTION," Do not remove discharge
guard from mower° Raise and hold guard
when attaching mulcher plate and allow it
to rest on plate while in operation°
Weld Nut From Hook Points
The Top Down
Lock
Weld Washer
Nut
Latch Latch
Hook
Weld Nut
Lock Washer
Washer
Latch
Hooks
TO CONVERT TO BAGGi
DISCHARGING
Simply remove mulcher plate
a safe place. Your mower is rl _
discharging or' installation of oi: '
grass catcher accessory.
NOTE; It is not necessary to ch_.n
blades_ The mulcher blades are d6
for discharging and bagging also_
V' CHECKLIST
PLEASE REVIEW THE FOLLOWIN(?
CHECKLIST:
v' All assembly instructions have bee_
completed.
v' No remaining loose parts in carton.
v' Battery is properly prepared and
charged (Minimum 1 hour at 6 amps)
e,,' Seat is adjusted comfortably and
tightened securely..
e/' All tires are properly inflated_ (For
shipping purposes, the tires were
overinflated at the factory).
v' Be sure mower deck is properly leveled
side-to-sideifront-to-rear for best
cutting results. (Tires must be properly
inflated for leveling).
_,' Check mower and drive belts. Be sure
they are routed properly around pulleys
and inside all belt keepers.
v' Check wiring_ See that all connections
are still secure and wires are properly
clamped.
v' Before driving tractor, be sure free-
wheel control is in drive position.
WHILE LEARNING HOW TO USE YOUR
TRACTOR, PAY EXTRA ATTENTION TO
THE FOLLOWING IMPORTANT ITEMS:
v" Engine oil is at proper level°
,/ Fuel tank is filled with fresh, clean,
regular unleaded gasoline.
,/ Become familiar with all controls - their
location and function. Operate them
before you start the engine.
,/ Be sure brake system is in safe operat-
ing condition.
v' it is important to purge the transmis-
sion before operating your tractor fbr
the first time. Follow proper starting
and transmission purging instructions
(See 'q'O START ENGINE" and
"PURGE TRANSMISSION" in the Op-
eration section of this manual).
10
