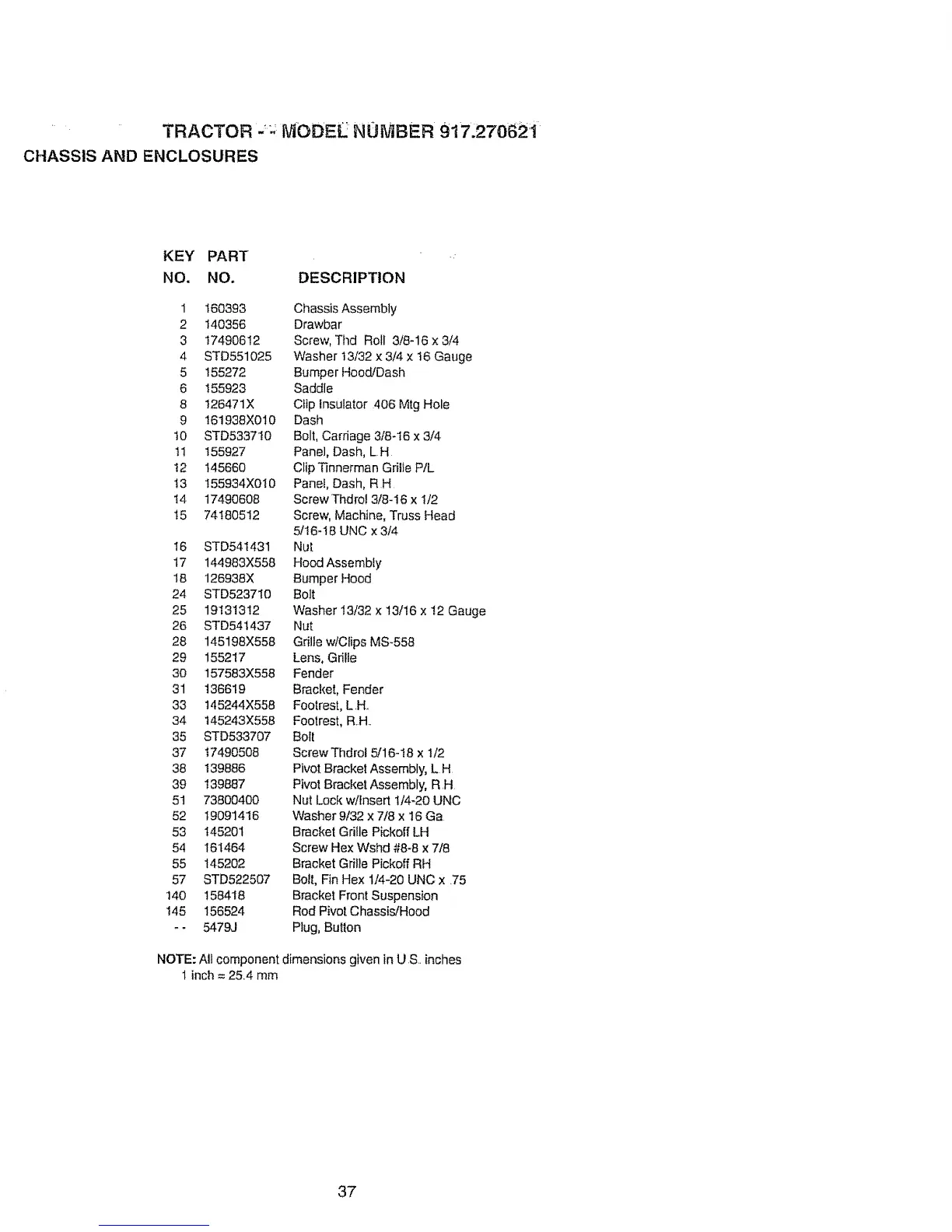

TRACTOR ,'_ MODEL N0tVBER 917.270621
CHASSIS AND ENCLOSURES
KEY PART
NO, NO. DESCRIPTION
1 160393
2 140356
3 17490612
4 STD551025
5 155272
6 155923
8 t26471X
9 161938X010
10 STD5337!0
II 155927
!2 145660
!3 I55934X010
14 17490608
15 74180512
I6 STD541431
17 144983X558
18 126938X
24 STD523710
25 19131312
26 STD541437
28 145198X558
29 155217
30 157583X558
31 136619
33 t45244X558
34 t45243X558
35 STD533707
37 17490508
38 139886
39 139887
51 73800400
52 19091416
53 145201
54 161464
55 145202
57 STD522507
140 158418
t45 156524
-- 5479J
Chassis Assembly
Drawbar
Screw, Thd Roll 3/8-16 x 3/4
Washer 13/32 x 3/4 x t6 Gauge
Bumper Hood/Dash
Saddle
Clip Insulator 406 Mtg Hole
Dash
Bolt, Carriage 318-16x 3/4
Panel, Dash, L H
Clip Tinnerman Grilie P!L
Panel, Dash, R H
Screw Thdroi 3/8-16 x t/2
Screw, Machine, Truss Head
5/t6-I8 UNC x 3/4
Nut
Hood Assembly
Bumper Hood
Belt
Washer 13/32 x 13/16 x I2 Gauge
Nut
Grille w/Clips MS_558
Lens, Grille
Fender
Bracket, Fender
Footrest, L H,
Footrest, R,H.
Bol_
ScrewThdrol 5/16-I8 x 1/2
Pivot Bracket Assembly, L H
Pivot Bracket Assembly, RH
Nut Lock w/Insert 1/4-20 UNC
Washer 9/32 x 7t8 x 16 Ga
Bracket Grille Pickoff LH
Screw Hex Wshd #8-8 x 7/8
Bracket Grille Pickoff RH
Bolt, Fin Hex 1/4-20 UNC x .75
Bracket Front Suspension
Rod Pivot Chassis!Hood
Plug, Button
NOTE: All component dimensions given in US.. inches
1 inch = 25,4 mm
37
