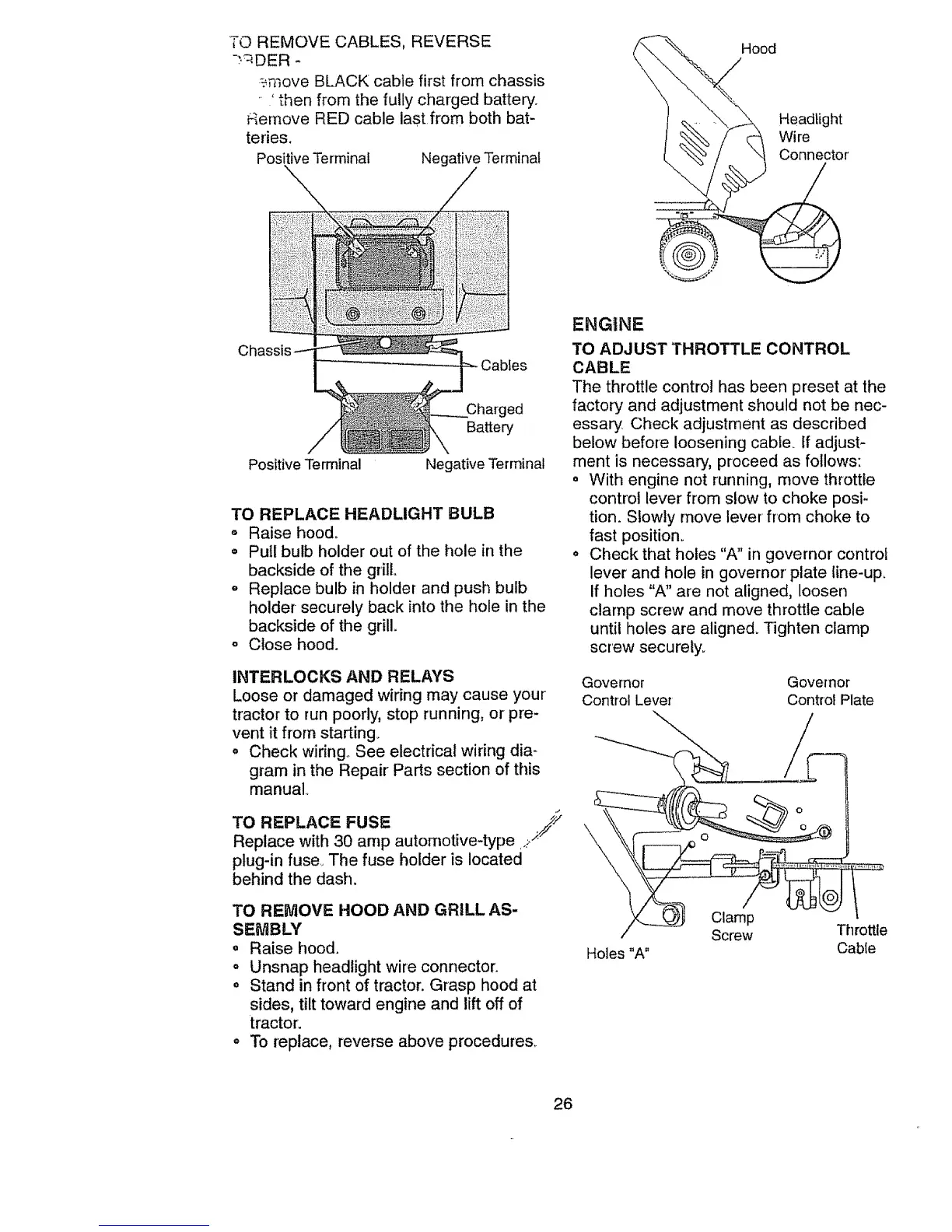

TO REMOVECABLES,REVERSE
_qDER-
_moveBLACKcablefirstfromchassis
" ' thenfrom thefullychargedbattery.
_-_ernoveREDcablelastfrombothbat-
teries.
PositiveTerminal NegativeTerminal
\
\
\
Hood
Headlight
Wire
Connector
Positive Terminal
ted
Battery
Negative Terminal
TO REPLACE HEADLIGHT BULB
o Raise hood.
o Pull bulb holder out of the hole in the
backside of the grill°
o Replace bulb in holder and push bulb
holder securely back into the hole in the
backside of the grill.
,, Close hood.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your
tractor to run poorly, stop running, or pre-
vent it from starting°
o Check wiring. See electrical wiring dia-
gram in the Repair Parts section of this
manual..
TO REPLACE FUSE _/-_
Replace with 30 amp automotive-type ._,"
//
plug-in fuse_ The fuse holder is located
behind the dash,
TO REMOVE HOOD AND GRILL AS-
SEMBLY
° Raise hood.
o Unsnap headlight wire connector.
o Stand in front of tractor. Grasp hood at
sides, tilt toward engine and lift off of
tractor.
o To replace, reverse above procedures,,
ENGINE
TO ADJUST THROTTLE CONTROL
CABLE
The throttle control has been preset at the
factory and adjustment should not be nec-
essary Check adjustment as described
below before loosening cabte_ ff adjust-
ment is necessary, proceed as follows:
• With engine not running, move throttle
control lever from slow to choke posi-
tion. Slowly move lever from choke to
fast position_
o Check that holes "A" in governor control
lever and hole in governor' plate line-up.
If holes "A" are not aligned, loosen
clamp screw and move throttle cable
until holes are aligned. Tighten clamp
screw securely_
Governor Governor
Control Lever Control Plate
Holes "A"
Clamp
Screw
Throttle
Cable
26
