KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY" RULES BEFORE OPERATING
YOUR TRACTOR

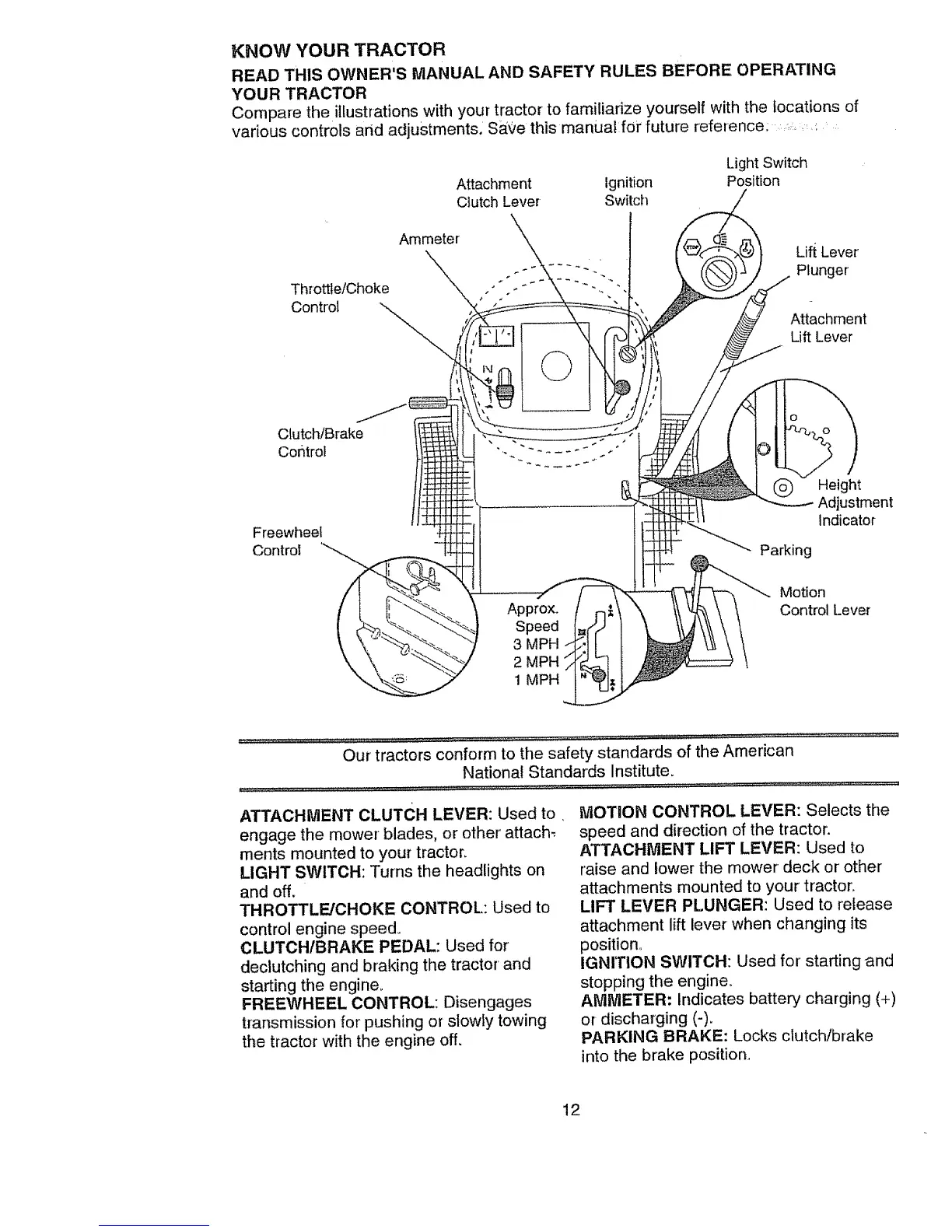

Compare the illustrations with your tractor to familiarize yourself with the locations of
various controls and adjustments. SAve this manualfor future reference: ,_
Throttle/Choke
Control
Attachment Ignition
Clutch Lever Switch
Ammeter
©
Light Switch
Position
Lift Lever
Plunger
Attachment
Lift Lever
Clutch/Brake
Control
Freewheel
Control
O
Parking
Height
Adjustment
Indicator
Approx.
Speed
3 MPH
2 MPH
1 MPH
Motion
Control Lever
Our tractors conform to the safety standards of the American
National Standards Institute.
ATTACHMENT CLUTCH LEVER: Used to,
engage the mower blades, or other' attach _,
ments mounted to your tractor.
LIGHT SWITCH: Turns the headlights on
and off.
THROTTLE/CHOKE CONTROL: Used to
control engine speed°
CLUTCHIBRAKE PEDAL: Used for
declutching and braking the tractor and
starting the engine,,
FREEWHEEL CONTROL: Disengages
transmission for pushing or slowly towing
the tractor with the engine off.
MOTION CONTROL LEVER: Selects the
speed and direction of the tractor.
ATTACHMENT LIFT LEVER: Used to
raise and lower the mower deck or other
attachments mounted to your tractor°
LIFT LEVER PLUNGER: Used to release
attachment lift lever when changing its
position,,
IGNITION SWITCH: Used for starting and
stopping the engine_
AMMETER: Indicates battery charging (+)
or discharging (-).
PARKING BRAKE: Locks clutch/brake
into the brake position.
12
