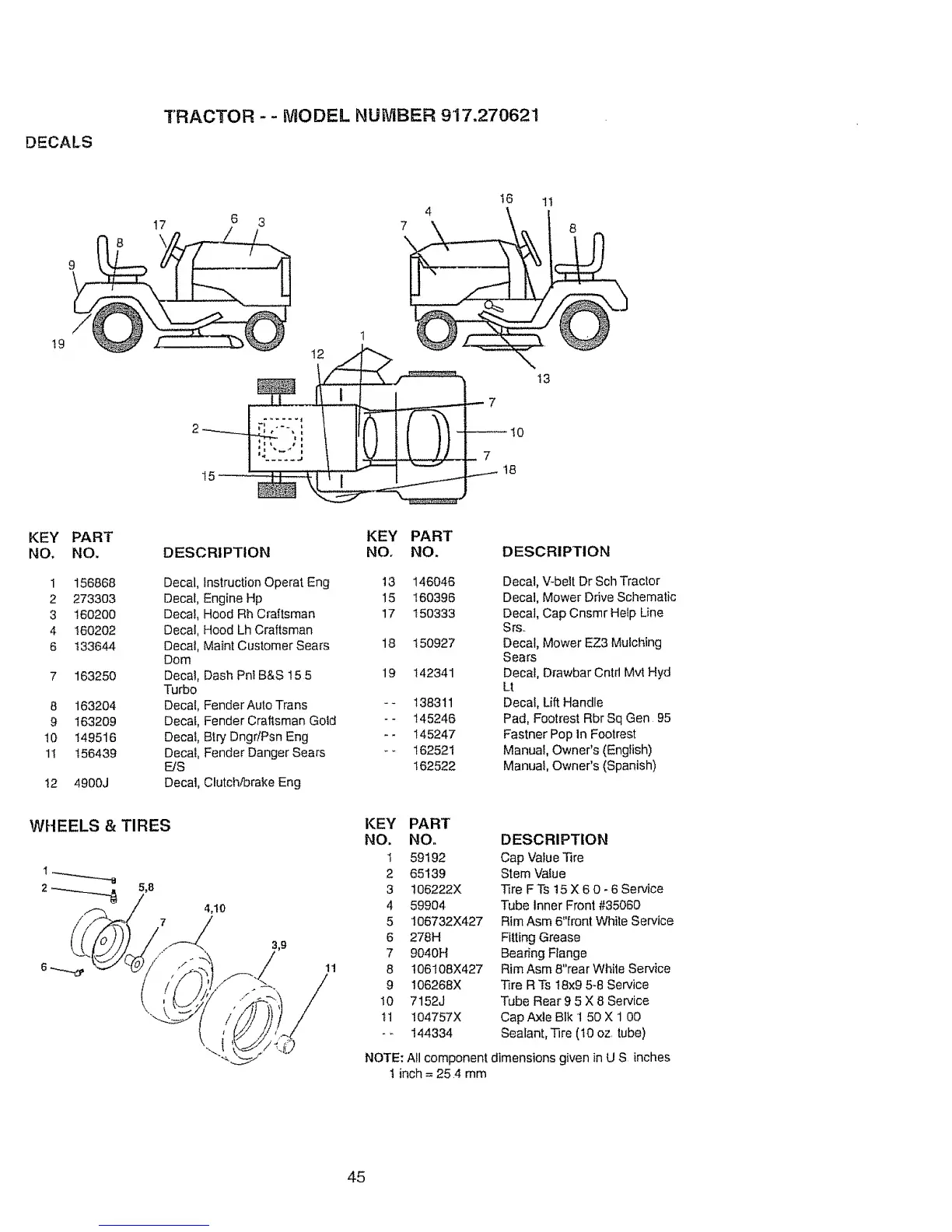

Craftsman 917.270621 - Decals; Wheels and Tires

DECALS
TRACTOR - - MODEL NUMBER 9'17.270621
t9
t2
4
7
t6
1t
13
15
7
t8
KEY
NO,
PART KEY PART
NO. DESCRIPTION NO. NO,
1 156868 Decal, Instruction Operat Eng 13 146046
2 273303 Decal, Engine Hp 15 160396
3 160200 Decal, Hood Rh Craftsman 17 150333
4 160202 Decal, Hood Lh Craftsman
6 t33644 Decal, Maint Customer Sears 18 t50927
Dom
7 163250 Decal, Dash Pnt B&S 15 5 19 t42341
Turbo
8 163204 Decal, Fender Auto Trans -- t38311
9 163209 Decal, Fender Craftsman Gold -- 145246
10 149516 Decal, Btry Dngr/Psn Eng *- 145247
11 156439 Decal, Fender Danger Sears - _ 162521
E/S 162522
t2 4900J Decal, Clutch/brake Eng
DESCRIPTION
Decal, V-belt Dr SchTractor
Decal, Mower Drive Schematic
Decal, Cap Cnsmr Help Line
Srs..
Decal, Mower EZ3 Mulching
Sears
Decal, Drawbar Cntrl Mvl Hyd
Lt
Decal, Lift Handle
Pad, Footrest Rbr Sq Gen 95
Fastner Pop In Footrest
Manual, Owner's (English)
Manual, Owner's (Spanish)
WHEELS & TIRES
5_8
4,10
KEY PART
NO, NO. DESCRIPTION
I 59192 Cap Value Tire
2 65139 Stem Value
3 106222X ]]re F"Is 15 X 6 0 - 6 Service
4 59904 Tube Inner Front #35060
5 106732X427 Rim Asm 6"front White Service
6 278H Fitting Grease
7 9040H Bearing Flange
8 106106X427 RimAsm 8"rearWhile Service
9 106268X Tire R Ts 18x9 5-8 Service
I0 7152J Tube Rear 9 5 X 8 Service
tl 104757X Cap Axle Blk 1 50 X 100
o- 144334 Sealant, Tire (10 oz. tube)
NOTE: Atl component dimensions given in U S inches
1 inch = 25 4 mm
45
