Clamp ......
Z2:,.....
Filter
CLEANING
o Clean engine, battery, seat, finish, etc.
of all foreign matter.
o Keep finished surfaces and wheels free
of all gasoline, oil, etc.
= Protect painted surfaces with automo-
tive type wax.
We do not recommend using a garden
.....f_ose: to:_;f_:n"_{Ji :_tradtSi _iiSl_s_ _the elec: ..... _
trical system, muffler, air filter' and carbure-
tor are covered to keep water out. Water
in engine can result in a shortened engine
life.
A_-CAUTION: Before performing any service or adjustments:
o Depress clutch/brake pedal fully and set parking brake.
o Place motion control lever in neutral (N) position.
= Place attachment clutch in "DISENGAGED" position.
° Turn ignition key "OFF" and remove key.
• Make sure the blades and all moving parts have completely stopped_
,, Disconnect spark plug wire from spark plug and place wire where it cannot come
in contact with plug.

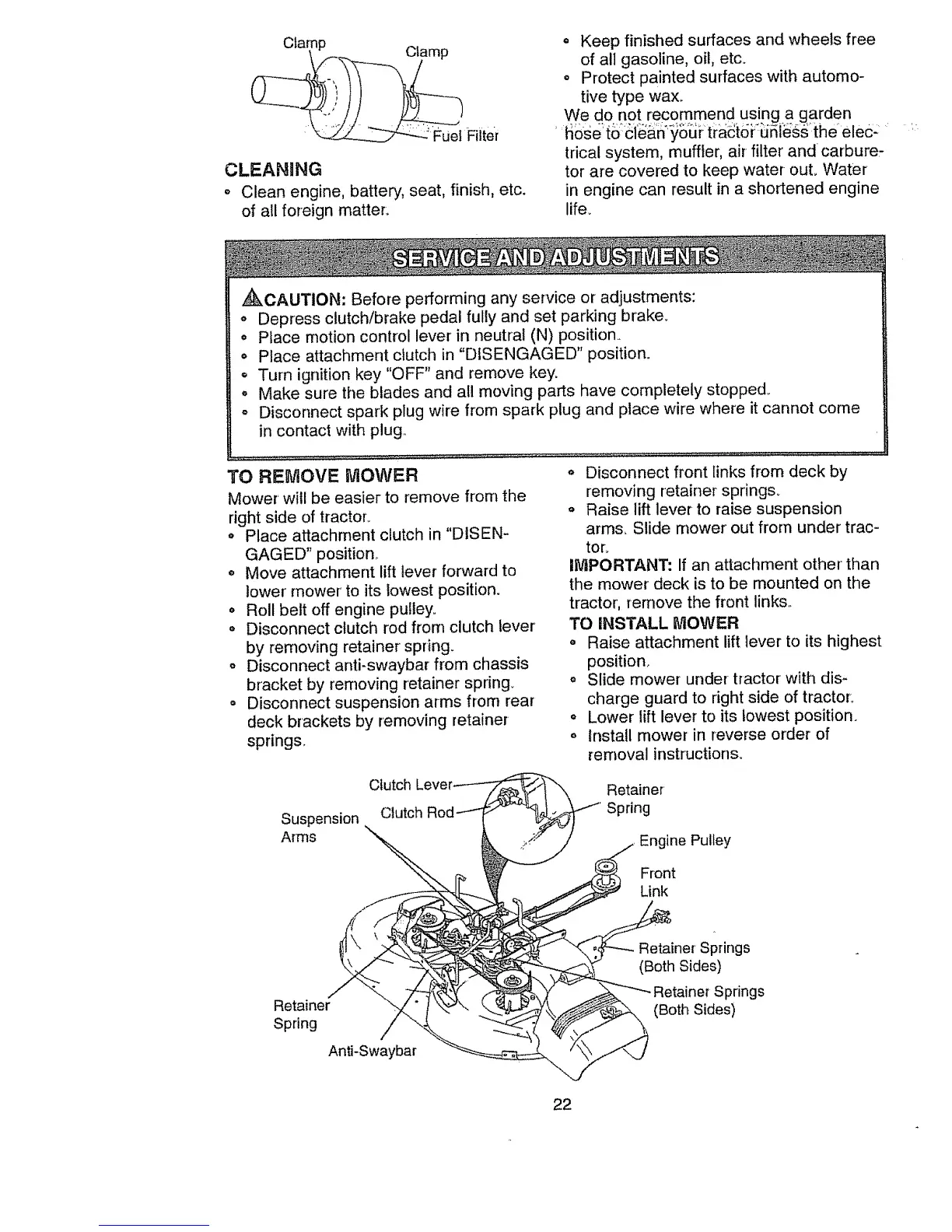

TO REMOVE MOWER
Mower' will be easier to remove from the
right side of tractor.
o Place attachment clutch in "DISEN-
GAGED" position _
o Move attachment lift lever forward to
lower' mower to its lowest position.
= Roll belt off engine pu!ley_
o Disconnect clutch rod from clutch lever
by removing retainer spring.
o Disconnect anti-swaybar from chassis
bracket by removing retainer spring_
° Disconnect suspension arms from rear
deck brackets by removing retainer
springs,
° Disconnect front links from deck by
removing retainer springs_
o Raise lift lever to raise suspension
arms, Slide mower out from under trac-
tor.
IMPORTANT: If an attachment other than
the mower deck is to be mounted on the
tractor', remove the front links.
TO iNSTALL MOWER
o Raise attachment lift lever to its highest
position,
o Slide mower under tractor with dis-
charge guard to right side of tractor_
° Lower lift lever to its lowest position.
o Install mower in reverse order of
removal instructions,
Suspension
Arms
Clutch
Clutch
Retainer
Spring
Engine Pulley
Front
Link
Retainer
Spring
Anti-Swaybar
Retainer Springs
(Both Sides)
Springs
(Both Sides)
22
