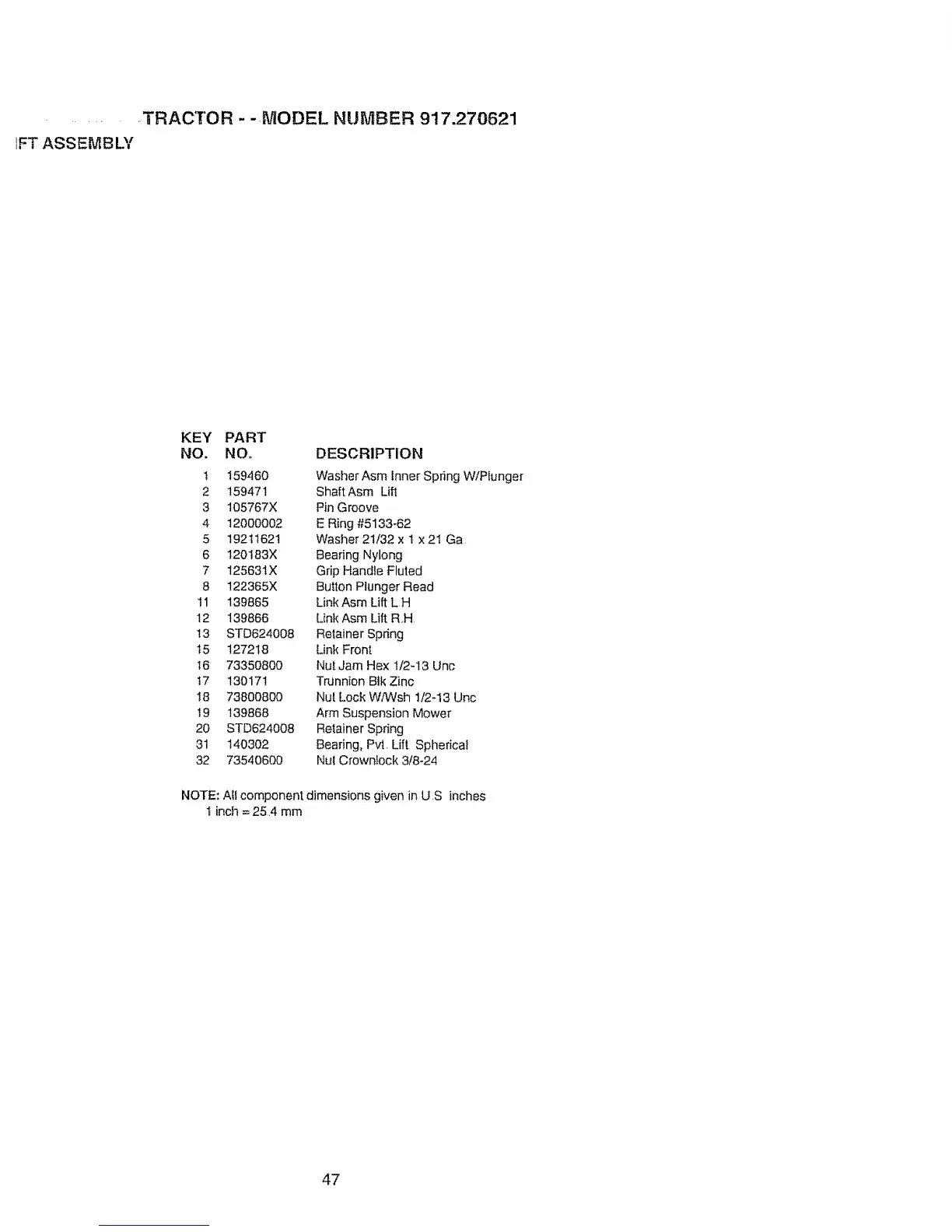

Craftsman 917.270621 - Page 47

TRACTOR - -MODEL NUMBER 917.270621
JFTASSEMBLY
KEY PART
NO. NO. DESCRIPTION
I 159460 WasherAsm Inner Spring W/Plunger
2 159471 Sha[tAsm Lift
3 105767X Pin Groove
4 12000002 E Ring #5133-62
5 19211621 Washer21i32x t x21 Ga
6 120183X Bearing Nylong
7 125631X Grip Handle Fluted
8 122365X Button Plunger Read
11 139865 Link Asm Lift LH
12 139866 Link Asm Lift RH
13 STD624008 Retainer Spring
t5 127218 Link Front
t6 73350800 Nut Jam Hex 1/2-13 Unc
i7 130171 Trunnion BlkZinc
18 73800800 Nul LockWNVsh 1/2-I3 Unc
t9 139868 Arm Suspension Mower
20 STD624008 Retainer Spring
31 140302 Bearing, Pvt Lift Spherical
32 73540600 Nul Crownlock 3/8-24
NOTE: All component dimensions given in U S inches
I inch = 254 rnm
47
