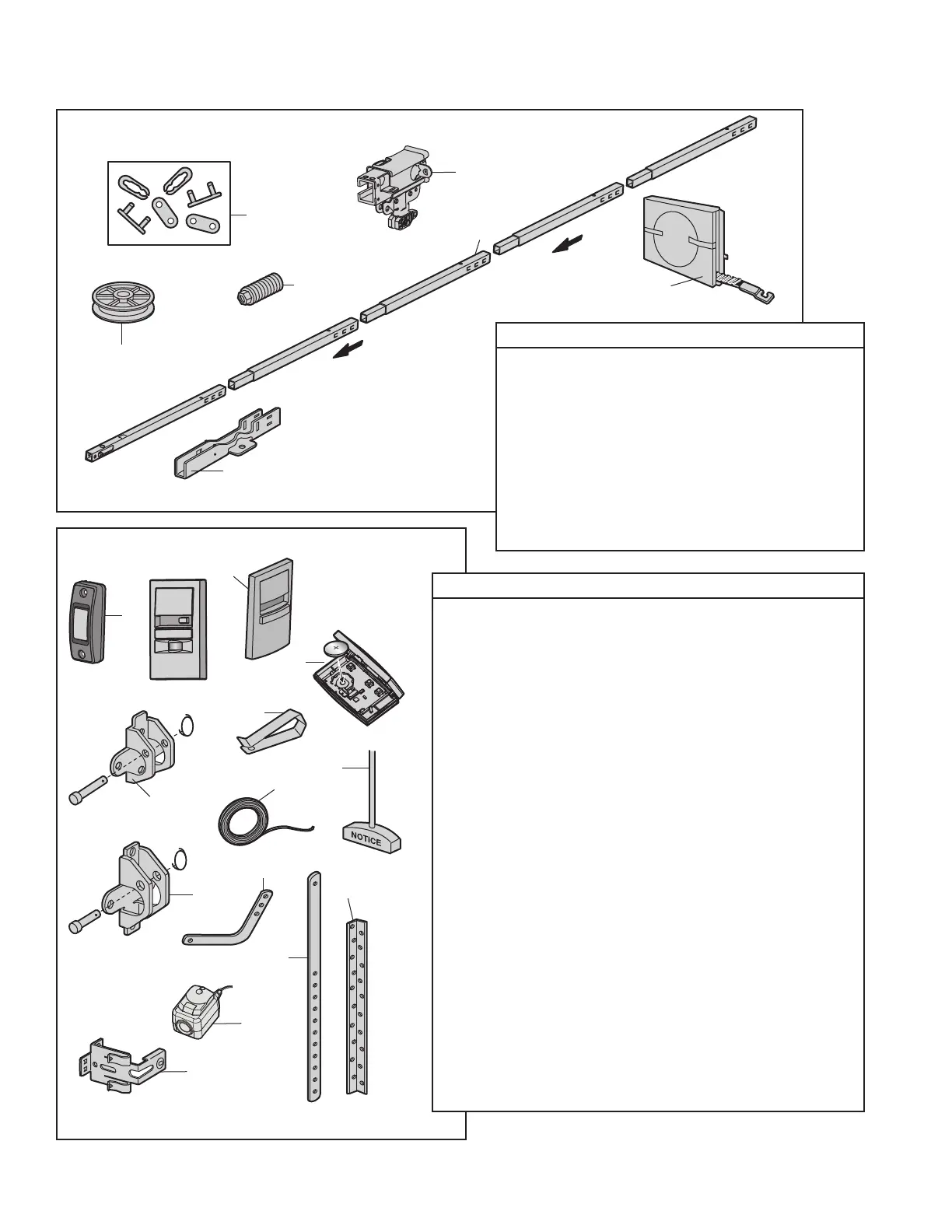

INSTALLATION PARTS
REPAIR PARTS
RAIL ASSEMBLY PARTS
KEY NO. PART NO. DESCRIPTION
1 004A1008 Master link kit
2 041C5141-2 Complete trolley assembly
3 041A5665 Complete rail
4 041B4103 Spring trolley nut
5 144C0054M Pulley kit
6 041A5250 Full belt assembly
7 041D0598-1 “U” bracket
NOT SHOWN
041A7276 Wear pads
KEY NO. PART NO. DESCRIPTION
1 041A7367-7 Door Control (Model CMXEOCG322)
2 041-0126 Motion Detecting Control Panel
3 041A9501 Dual-Function Control Panel (Model CMXEOCG572)
4 K010A0020 3V CR2032 lithium battery
5 K029B0137 Visor clip
6 041A2828 Emergency release rope and handle assembly
7 041B4494-1 2-Conductor bell wire: white and white/red
8 041A5047-2 Header bracket with clevis pin and fastener
9 041A5047-1 Door bracket with clevis pin and fastener
10 041B0035B Curved door arm section
11 4178B0034B Straight door arm section
12 K012B0776 Hanging bracket
13 041-0136 Safety reversing sensor kit (receiving and sending
sensors) with 2-conductor bell wire attached. The
reversing sensor has a sticker on the back.
14 041-0155-000 Safety reversing sensor bracket
NOT SHOWN
K010A0016 9V battery for wireless keypad
041A6357-1 Battery Backup
041A5281-1 Extension Brackets (optional) for safety reversing
sensors
041A7920-2 Installation hardware bag (includes hardware listed on
page 9)
114-5501 Owner’s manual
