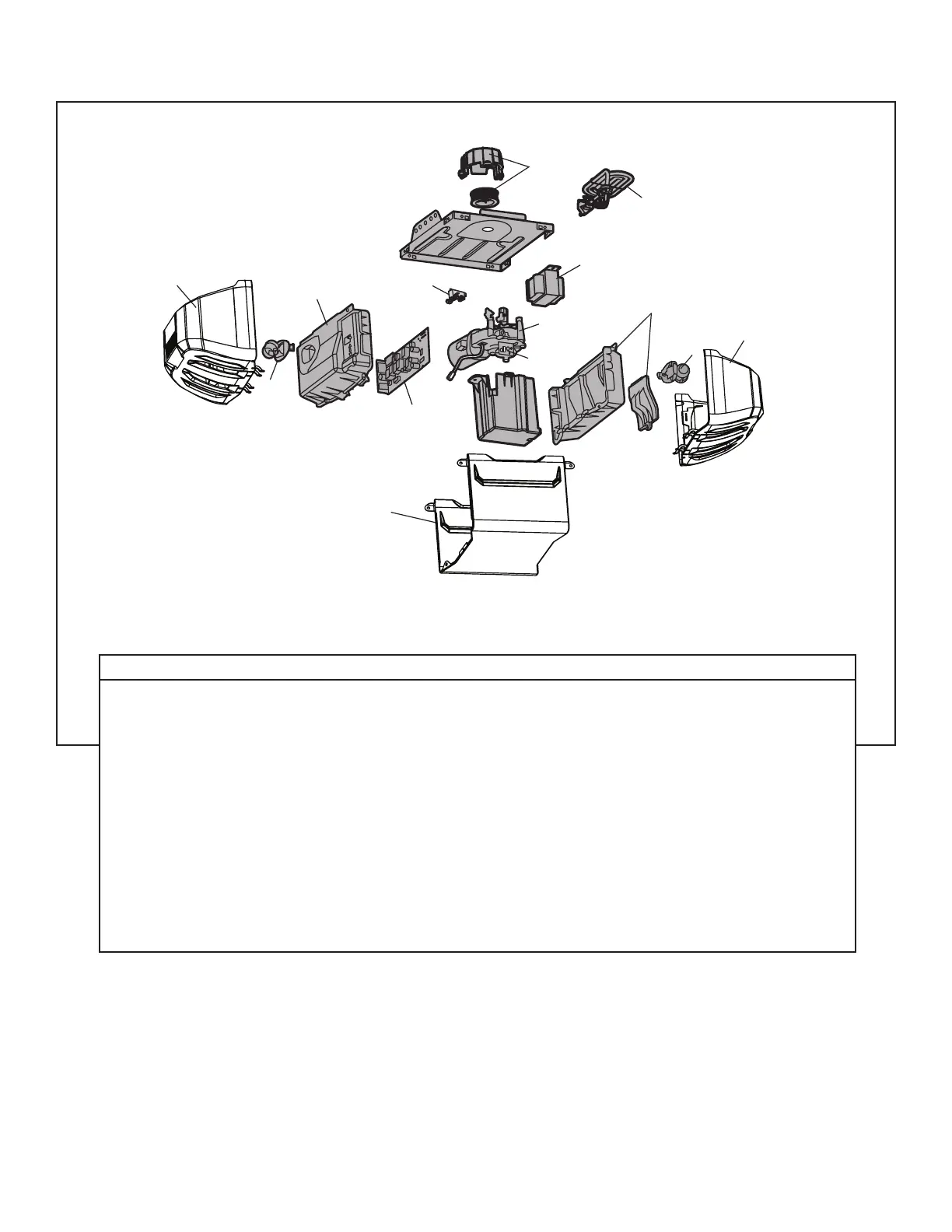

Craftsman CMXEOCG982 - Motor Unit Assembly Parts

41
1
7
5
3
4
3
9
6
8
2
4
10
11
12
KEY NO. PART NO. DESCRIPTION KEY NO. PART NO. DESCRIPTION
1 041C1751 Sprocket and Sprocket Cover 9 050DCTB Receiver Logic Board
2 041-0125 End Panel with Light Socket (Models
CMXEOCG572 and CMXEOCG772)
10 041D8071-4 Travel Module
041-0158 End Panel with Light Socket (Model
CMXEOCG982)
11 041B4245-1 Line Cord
3 041-0107 Light Lens 12 041A3150 Terminal Block
4 041C0279 Light Socket
5 041D0277-1 Transformer (Model CMXEOCG982) NOT SHOWN
041D0277-2 Transformer (Models CMXEOCG572 and
CMXEOCG772)
041-0120 LED Bulb (Model CMXEOCG982)
6 041-0178 Cover 041D8255 Wire Harness
7 041D8006-1 Motor with Travel Module
8 041-0143 End Panel for Receiver Logic Board
REPAIR PARTS
MODELS CMXEOCG572, CMXEOCG772, AND CMXEOCG982
MOTOR UNIT ASSEMBLY PARTS
