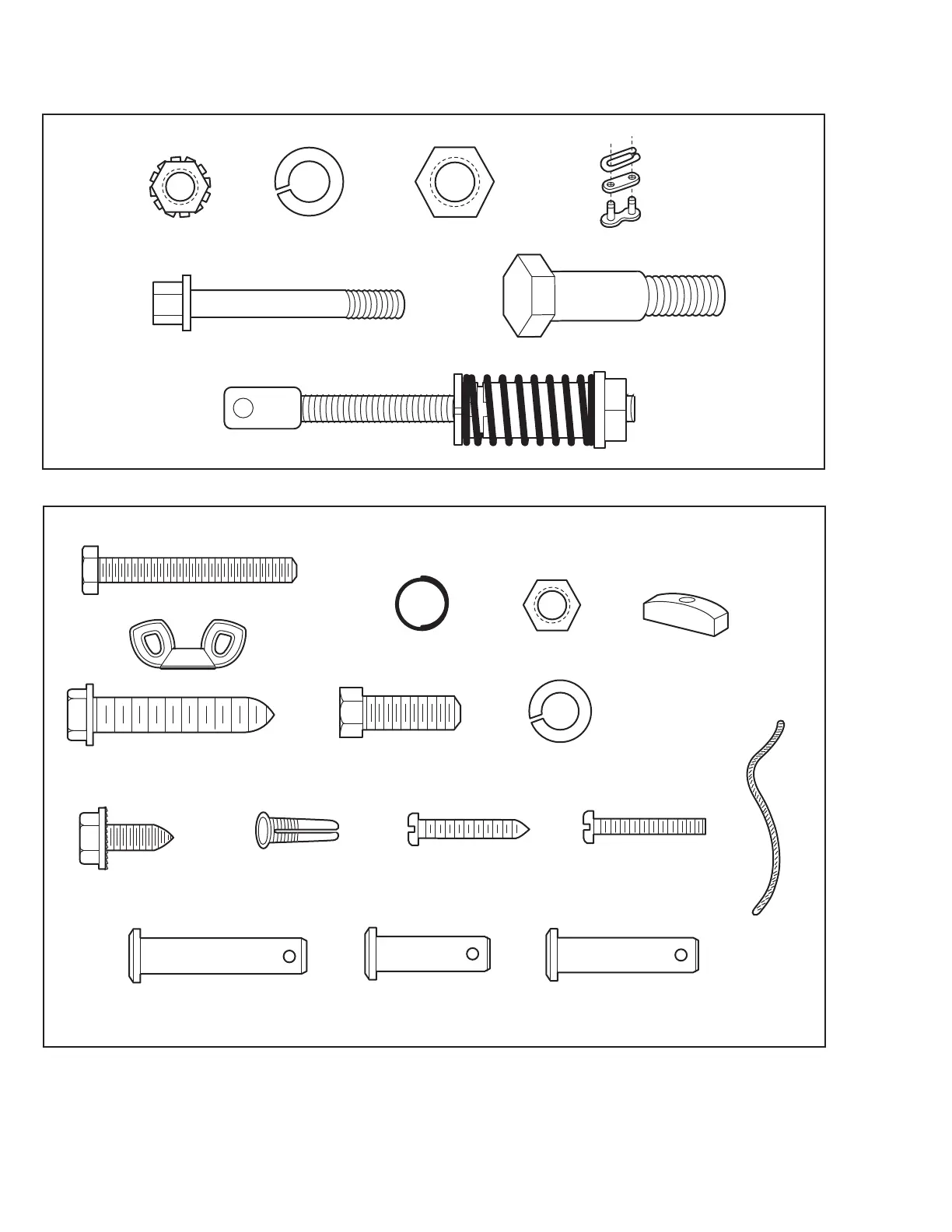

HARDWARE INVENTORY
Separate all hardware and group as shown below for the assembly and installation procedures.
Idler Bolt
Nut 3/8"
Lock Washer 3/8"
Lock Nut
1/4"-20
Handle
Nut 5/16"-18 (4)
Ring
Fastener (3)
Insulated Staples
(Not shown)
Drywall Anchors (2)
Clevis Pin
5/16"x1"
Rope
Lock Washer 5/16" (4)
Lag Screw
5/16"-9x1-5/8" (4)
Hex Bolt
5/16"-18x7/8" (4)
Clevis Pin
5/16"x1-1/4"
Screw 6-32x1" (2)
Clevis Pin
5/16"x1-1/2"
Bolt 1/4"-20x1-3/4"
Self-Threading Screw
1/4"-14x5/8" (2)
Screw
6ABx1" (2)
Master Link
Threaded Shaft with
Spring Trolley Nut
ASSEMBLY HARDWARE
INSTALLATION HARDWARE
Hexagonal Screw 10-24 (2)
Wing Nut 1/4"-20 (2)
8
