Crane Barnes SITHE 3XSCM - Page 18

18

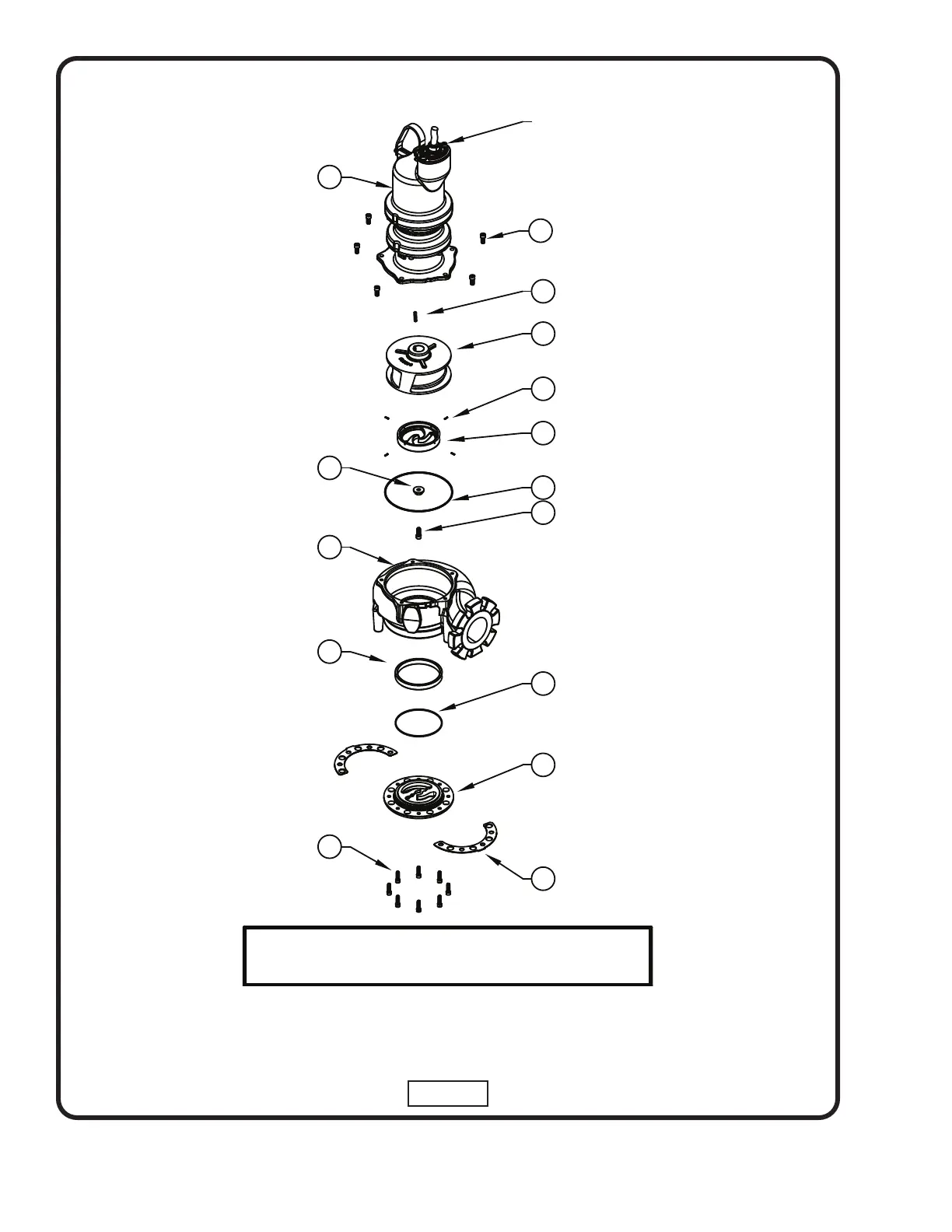

FIGURE 10
XSC Pump Series - Exploded View
49
50
52
8
9
6A
6B
6
7
8
51
10
8A
1
CAUTION!
ROTATING MACHINERY
AMPUTATION OR SEVERE
LACERATION CAN RESULT.
CAUTION!
AMPUTATION OR SEVERE
LACERATION CAN RESULT.
CORD ENTRY BOLTS
TORQUE TO: 50FT/LBS.
MUST BE METAL TO METAL
TORQUE TO:
APPLY GREEN
LOCTITE RC603,
TORQUE TO:
35 + 1.4 FT/LBS.
–
CLEAN WEAR RING
AND BORE PRIOR TO
APPLYING GREEN
LOCTITE RC603 TO
O.D. AND PRESSING
IN PLACE
APPLY GREEN
LOCTITE RC603,
TORQUE TO:
11
WARNING!
OVERTIGHTENING OF BOLTS WILL LEAD TO DEFORMATION OF THE
STRIKER PLATE AND AN INCREASE OF THE CUTTING SURFACE CLEARANCE.
45 + 1.4 FT/LBS.
–
35 + 1.4 FT/LBS.
–
ITEMS NOT SHOWN: 4, 41, 42
