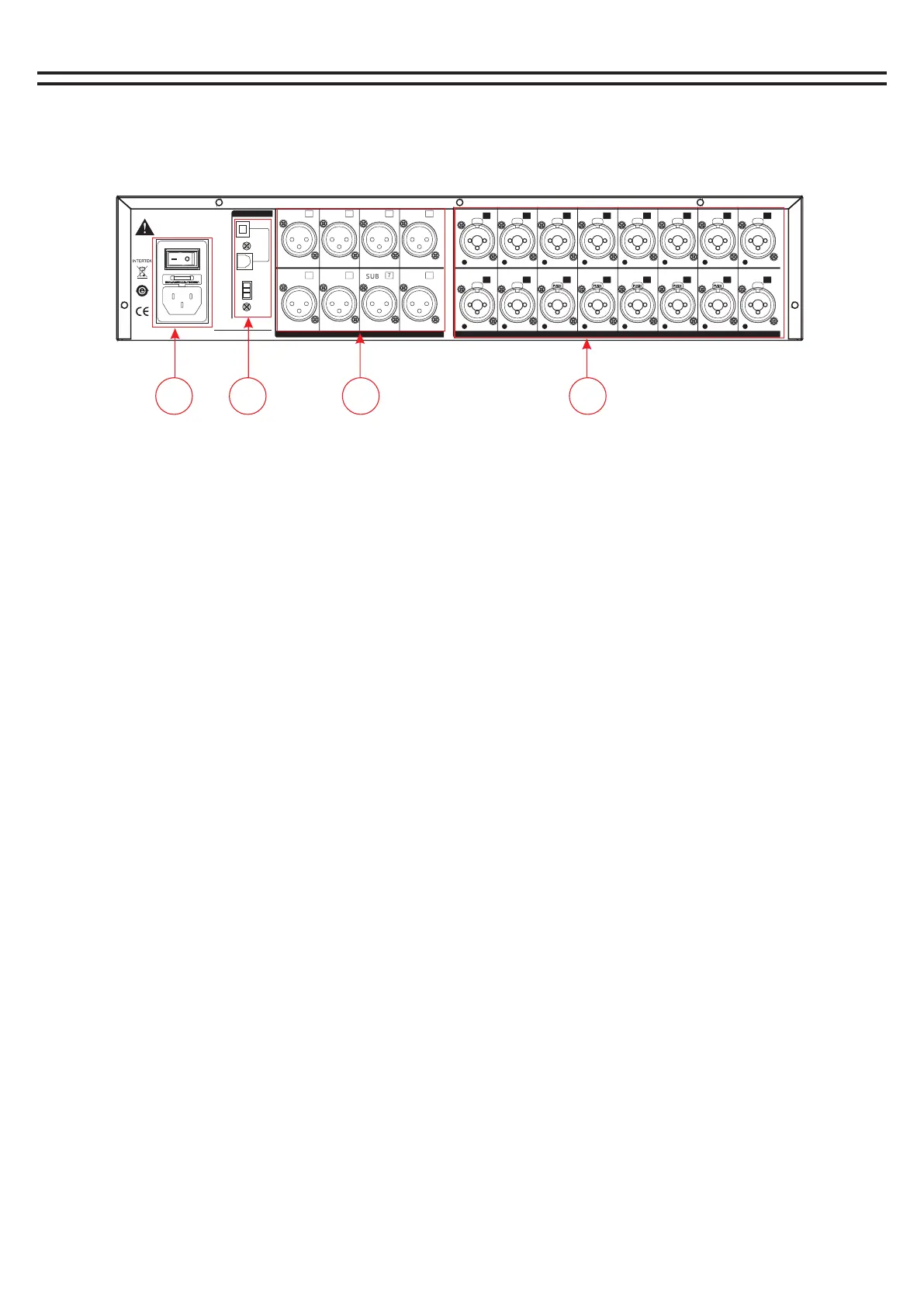

CRCBOX EX-16-8 - Rear Panel Features; Power Input and Switch; Signal and Control Interfaces; Marshalling Outputs

Features - later version
1. Power input port and switch
For 110V-220V power interface, the factory's matching power adapter must be used.
2. Optical fiber signal input/input/central control RS232
1) In port is optical fiber input, and OUT port is optical signal output.
1), central control RS232: external 232 central control device control connection.
3. Sub1-8 marshalling output
SUB1-8 marshals output signals to a power amplifier or other sound amplification system.
MIC/ LINE microphone input interface
All balanced input ports, 16 XLR sockets, can be connected to XLR line can also use 1/4"
TRS line is connected to audio signal source.
PUS HPUS HPUS HPUS HPUS HPUS HPUS HPUS H
PUS HPUS HPUS HPUS HPUS HPUS HPUS HPUS H
SUB
1
SUB
2
SUB
3
SUB
4
SUB
5
SUB
6
SUB
7
SUB
8
GND
485B
485A
IN
OUT
RS232
PO WER
MA INS I N PUT
90 / 250V AC ~ 47 -63 Hz
80W MAX T1. 5AL
SERIAL NO:
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
LINE
MIC
48V
48V
48V
48V
48V
48V
48V
48V
48V
48V
48V
48V
48V
48V
48V
48V
INPUTSOUTPUTS
OPTI CAL
1 2 3 4 5 6 7 8
109
11
13
14
15
12
16
1 2 3 4
1
2
6
