4 Printer Port Instructions

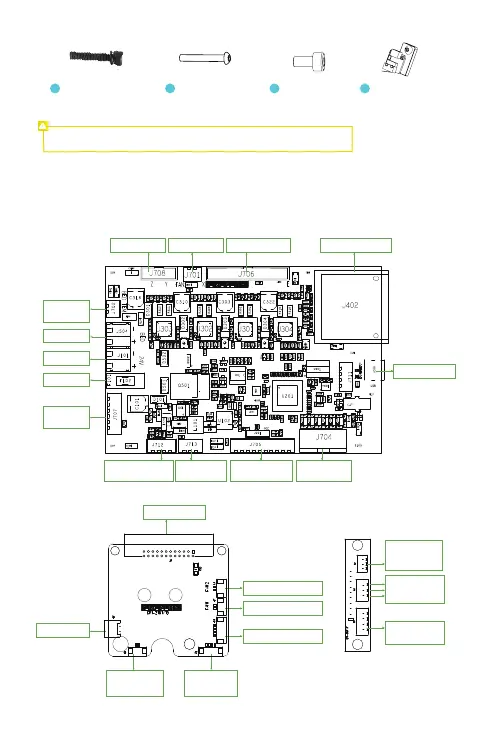

4.1 Mainboard Port Instructions
4.2 Nozzle Port Instructions 4.3 Z-Axis Pinboard
Instructions
Note: The components above are for reference only. The actual product may vary.
M5x45 Socket Head
Cap Screw with Spring
Washer x 4
16
M4x30 Hexagon Flat
Round Head Screw x 3
17
M3x6 Hexagon
Socket Head Cap
Screw x 5
18
Z-Axis
Motor Port
Memory Card Slot
10-Pin Cable 30-Pin Cable Mainboard Fan
Type-C Port
Filament
Detection Port
Z-Axis Limit
Port
Touch Screen
Port
Knob Display
Screen Port
Hotbed
DC 24 V
Hotbed
Thermal Port
Fuse
24-Pin Cable
Auto Leveling Port
Heat Sink Fan Port
Model Fan Port
Nozzle
Thermal Port
Extrusion
Motor Port
Heating Tube
Z-Axis Motor
Cable Port
Filament
Detection
Port
+ 24V
- 24V
PWM
Z-Axis Limit Switch Kit19
