5.5 Wiring

X-Axis and Z-Axis

Motor Port

X-Axis Limit Switch

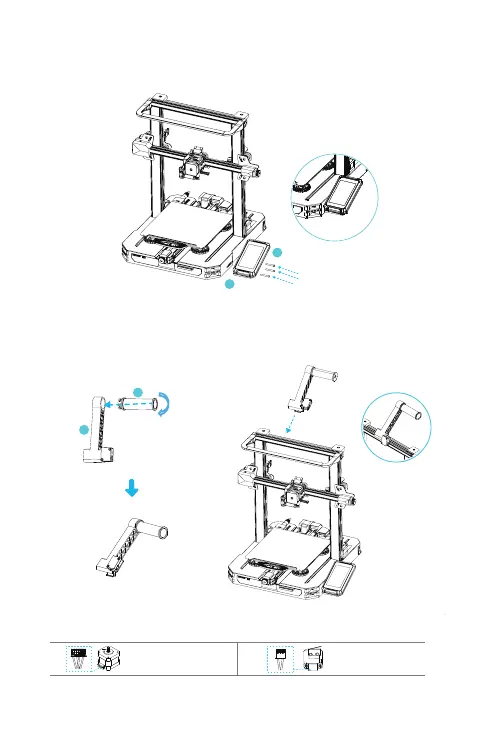

5.4 Install the rack

A.Find the ﬁlament tube ﬁttings and ﬁx the threaded end on the right end of the rack.

B.Fit the front slot of the installed rack to the front slot of the proﬁle, and then press down to clamp

the bottom of the proﬁle.

5.3 Install the screen

Place the screen bracket to the side of the plastic that’s on the right, and tighten it with 3 M4x30 hexagon

ﬂat round head screws.
