Creation PCUT SERIES - PCUT CT Plotter Parts Identification

5．Cutting plotter PCUT CT operating instructions

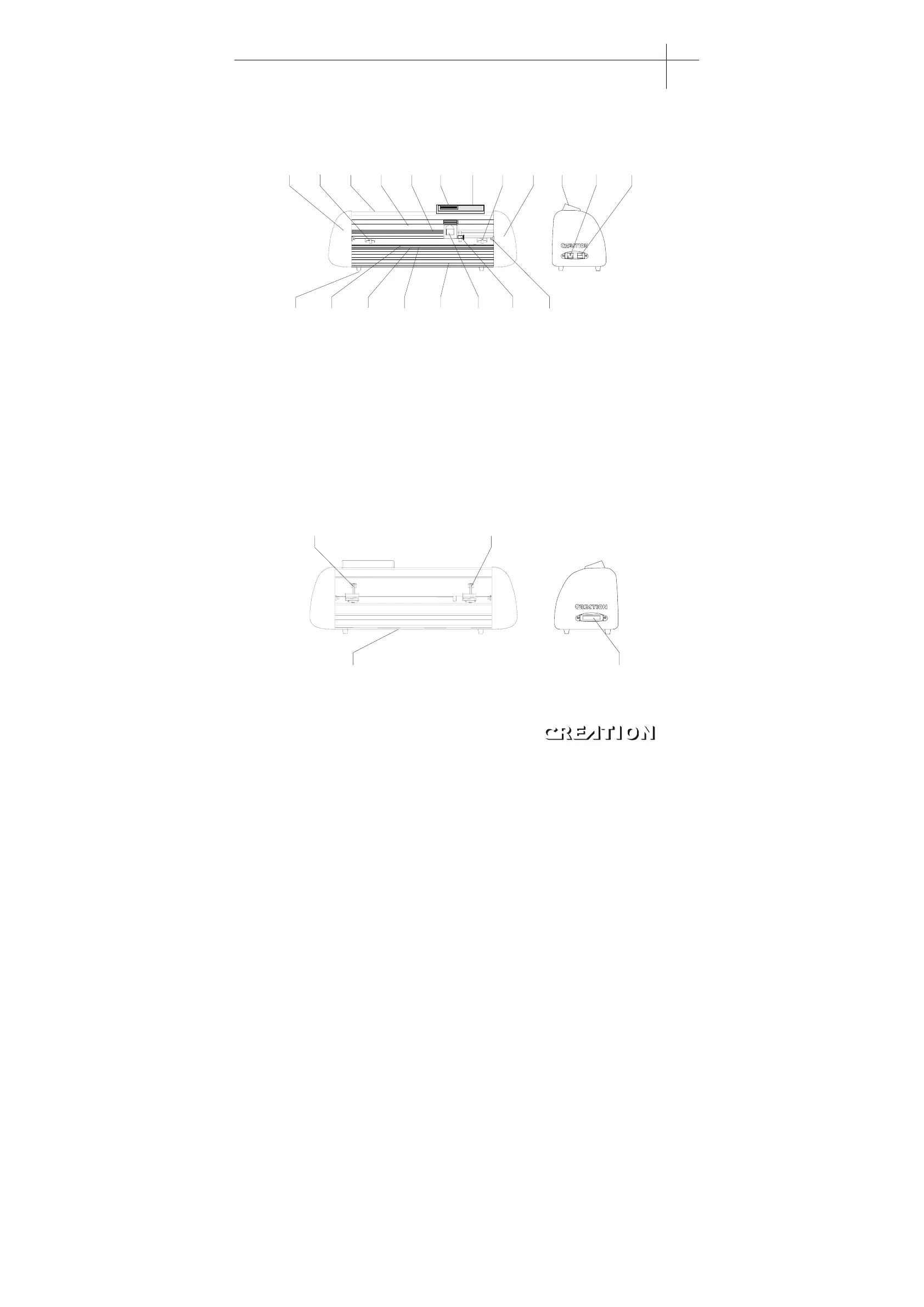

5.1 Names and functions of parts
5.1.1 Frontal view
1 2 3 4 5 6 7 2 8 9 10 1
1
12 13 14 15 16 17 18 19
1.Left cabinet 11.Power on/off
2.Paperweight wheel 12.Foot cushion
3.Upper cover 13.Y Transmission Shaft
4.Beam 14.Scale
5.Tooth profile transmission belt 15.Strip cushion
6.LCD (Liquid Crystal Display) 16.Trimming groove
7.Control keyboard 17.Slider
8.Right cabinet 18.Knife clip
9.Keyboard base 19.Reset
10.Receptacle of power source
5.1.2 Back view
背面
右
侧
11
2
3
1.Handle of paperweight wheel 3.RS232 Receptacle
2.Baseboard (containing main
P
CUT SERIES USER ‘ S MANUAL Cutting plotter PCUT CT operating instructions
9
Reverse side Right side
