3.2 Installation of tool
CAUTION
Do not touch the knife top with your
finger to prevent injury or passivation
of knife head。

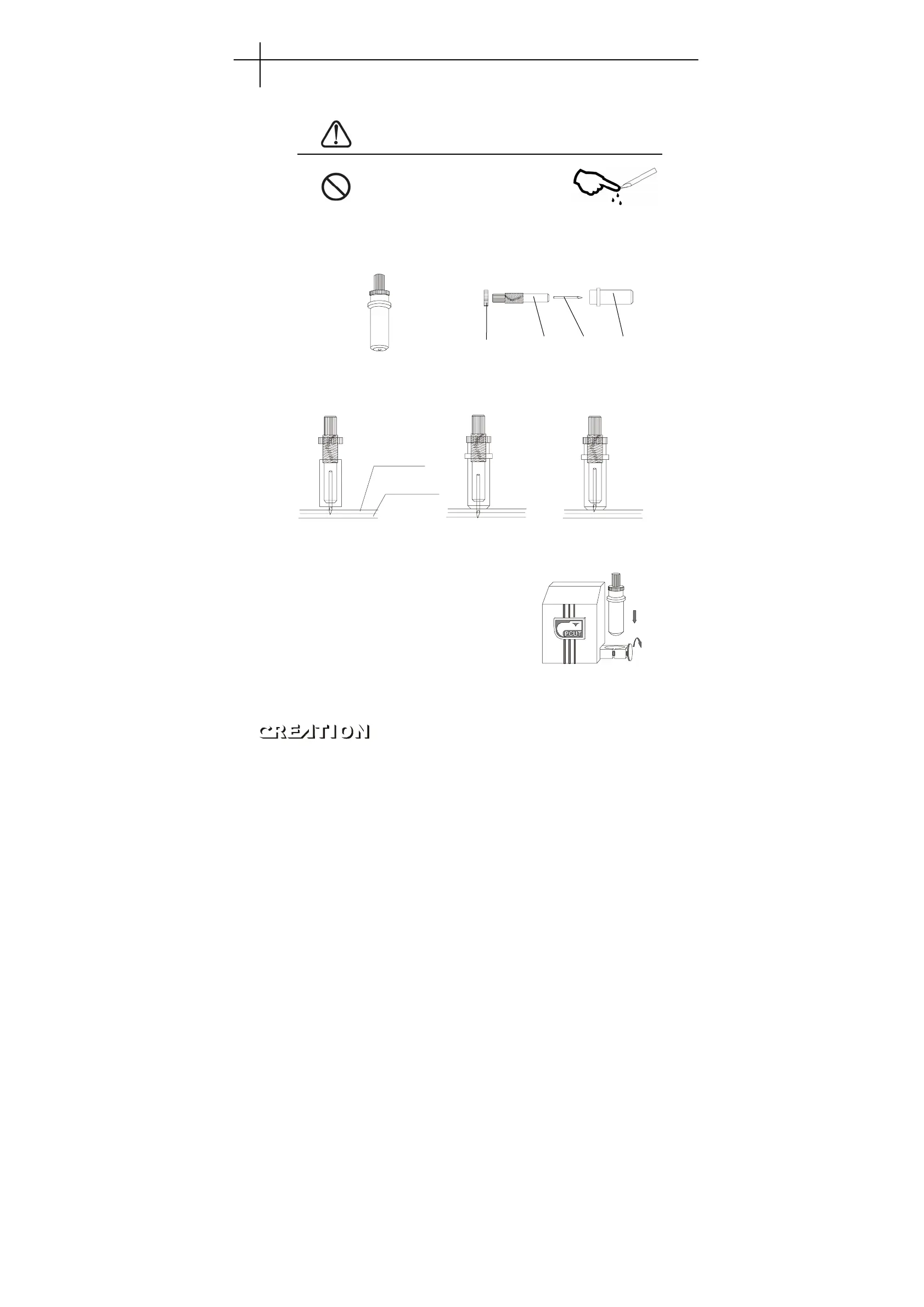

3.2.1 Fit cutter into rotary tool, the knife and tool are as shown in following
drawings:
(outside drawing) (exploded view)
3.2.2 Adjust the protruding length of the knife top as required for specific cutting
media。
Correct Too long protruding Too short protruding
length of knife point length of knife point
3.2.3 (1) Loosen the screw of tool carrier.
(2) Assembly the tool with knife into the tool
carrier。
(3) When the tool is in appropriate position screw
it and fix the screw。
Knife adjusting screw
Knife handle Knife Knife sheath
Basic operation PCUT SERIES USER ‘ S MANUAL
6
Superficial
materials
Base paper
