Creation PCUT SERIES - PCUT CT Trial Run and Knife Adjustment

5.2.3 Trial run (adjusting knife press and tool)
CAUTION
Do not touch the knife top with your
finger to prevent injury。
Quality of knife immediately relates to cutting precision and life of machine. To
better your work, please use the standard knives we confirm, but not those with poor
quality。

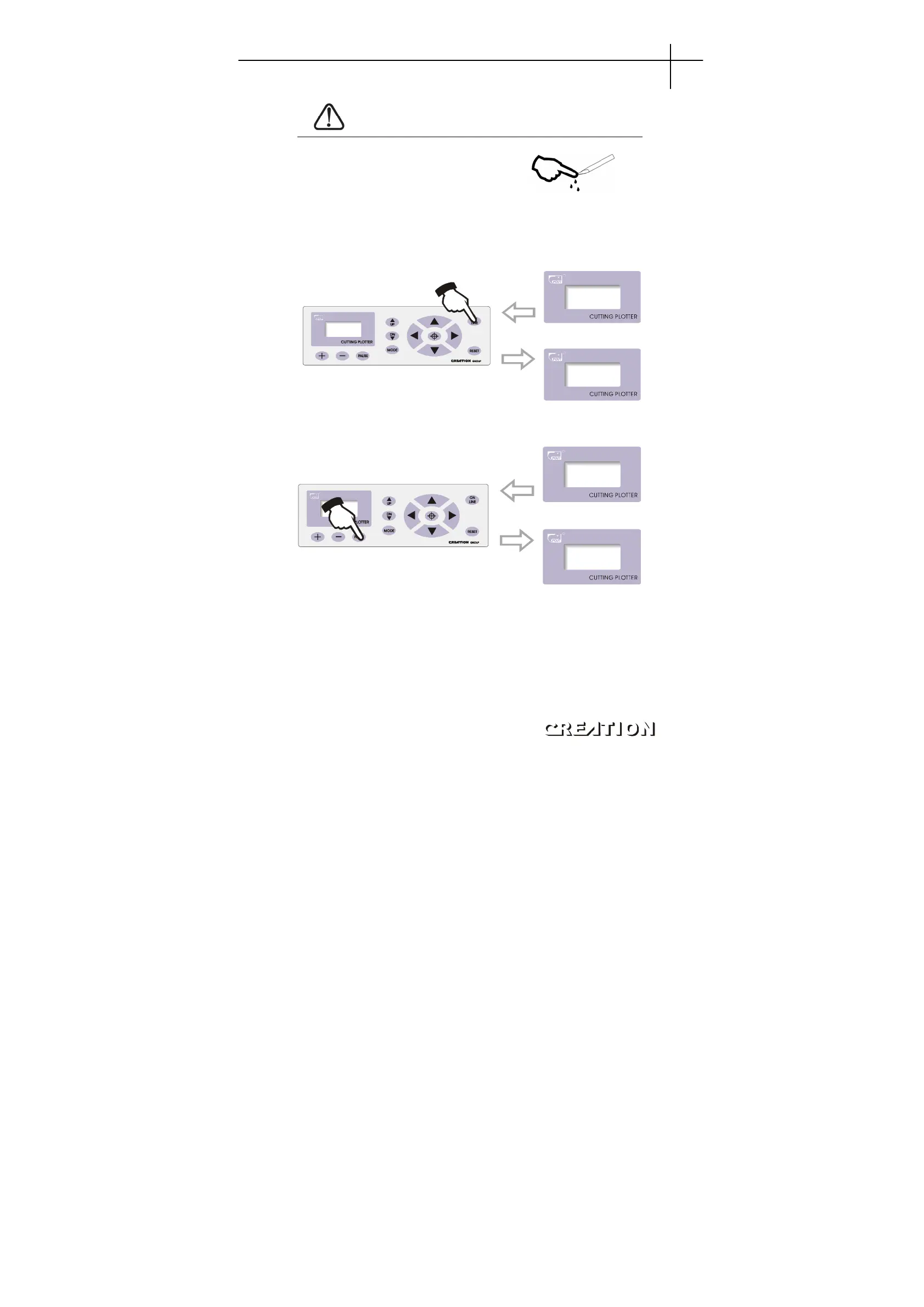

5.2.3.1 Press ON LINE button to make the machine in off-line state。
On Li ne. . .
X=+00000
Y=+00000
5.2.3.2 While in off-line state, press PAUSE twice, the machine will automatically
cut a small square from the media。
X=+00000
Y
=+00000
X=+00000
Y
=+00000
5.2.3.3 Take off the square, if you fail, the square need to be further cut, because the
press is low or the protruding length of knife top is too short; If the base paper is pierced
through, it signifies that the protruding length of knife top is too long and the press is too
big. Adjust the protruding length of knife top and knife press according to result of trial
run and the description of tool installation。
5.2.3.4 Press + or - to adjust knife press, for common materials the knife press
value ranges from 100 to 120。
