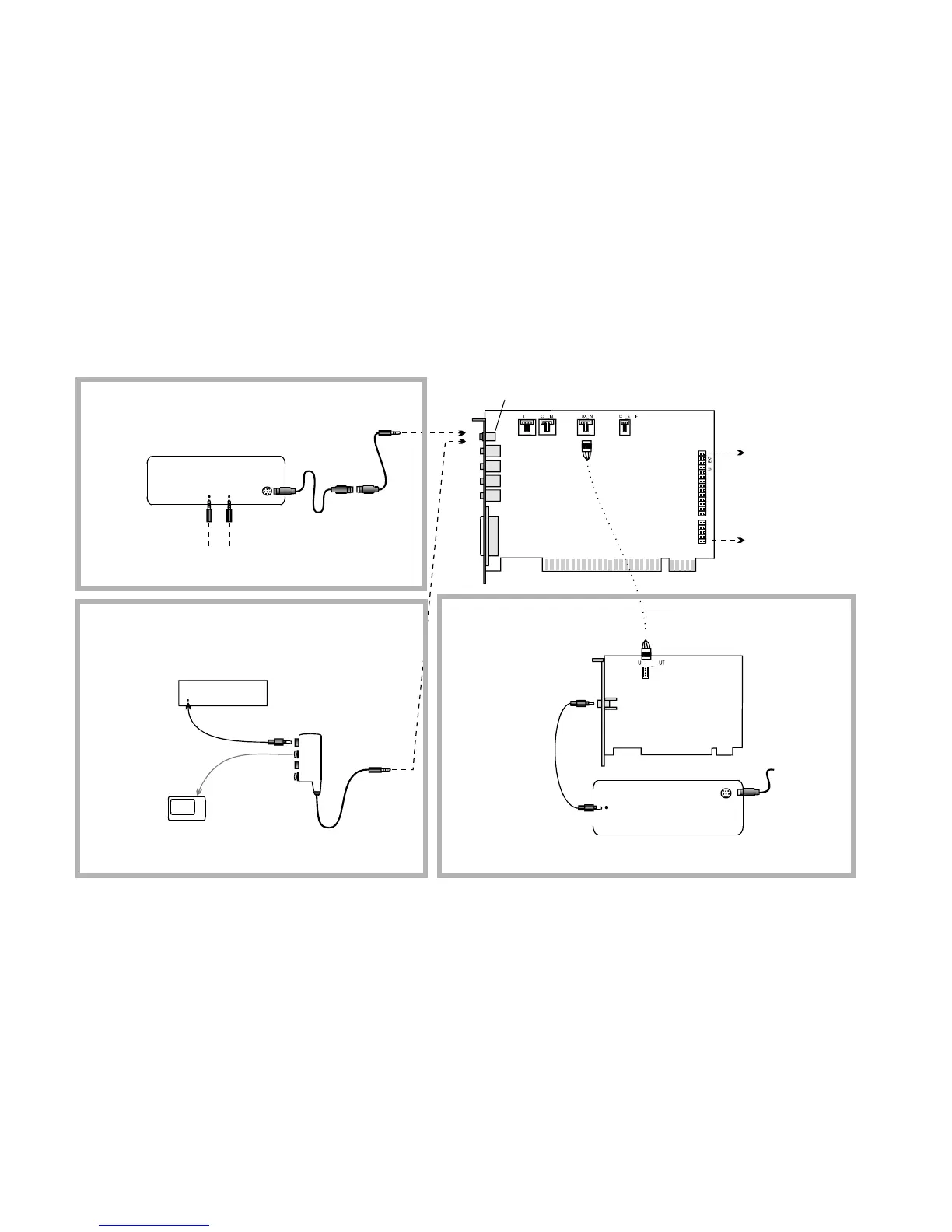

1-6 Knowing and Installing Your Card
Playing Games and Music
with FourPointSurround or
Digital Speaker System
Sound Blaster
Live! card
Digital
Output
Module
Connect for downmix audio only when
a Dolby Digital (AC-3) decoder
speaker system is not available.
Digital
DIN
MPEG2 decoder card
Dolby Digital
(AC-3)
SPDIF In
Dolby Digital (AC-3)
SPDIF Out jack
Analog Line and Rear Inputs
Digital
DIN
FourPointSurround
Digital Speaker
System
Watching DVD Movies
or Playing DVD Games
with Creative PC-DVD
and DeskTop Theater 5.1
Digital Speaker System
Connects to the
Optical Digital I/O card
or Drive Bay
(see next page).
Minijack-to-DIN
cable
DeskTop Theater 5.1 Digital
Speaker System
Digital Out
jack
Recording and Content Authoring
with Digital Output Module
Digital device ( e.g., DAT)
SPDIF In (RCA)
Recording to external
digital devices supporting
RCA SPDIF input
Digital device with
optical input
(e.g., MiniDisc)
To Next Page
