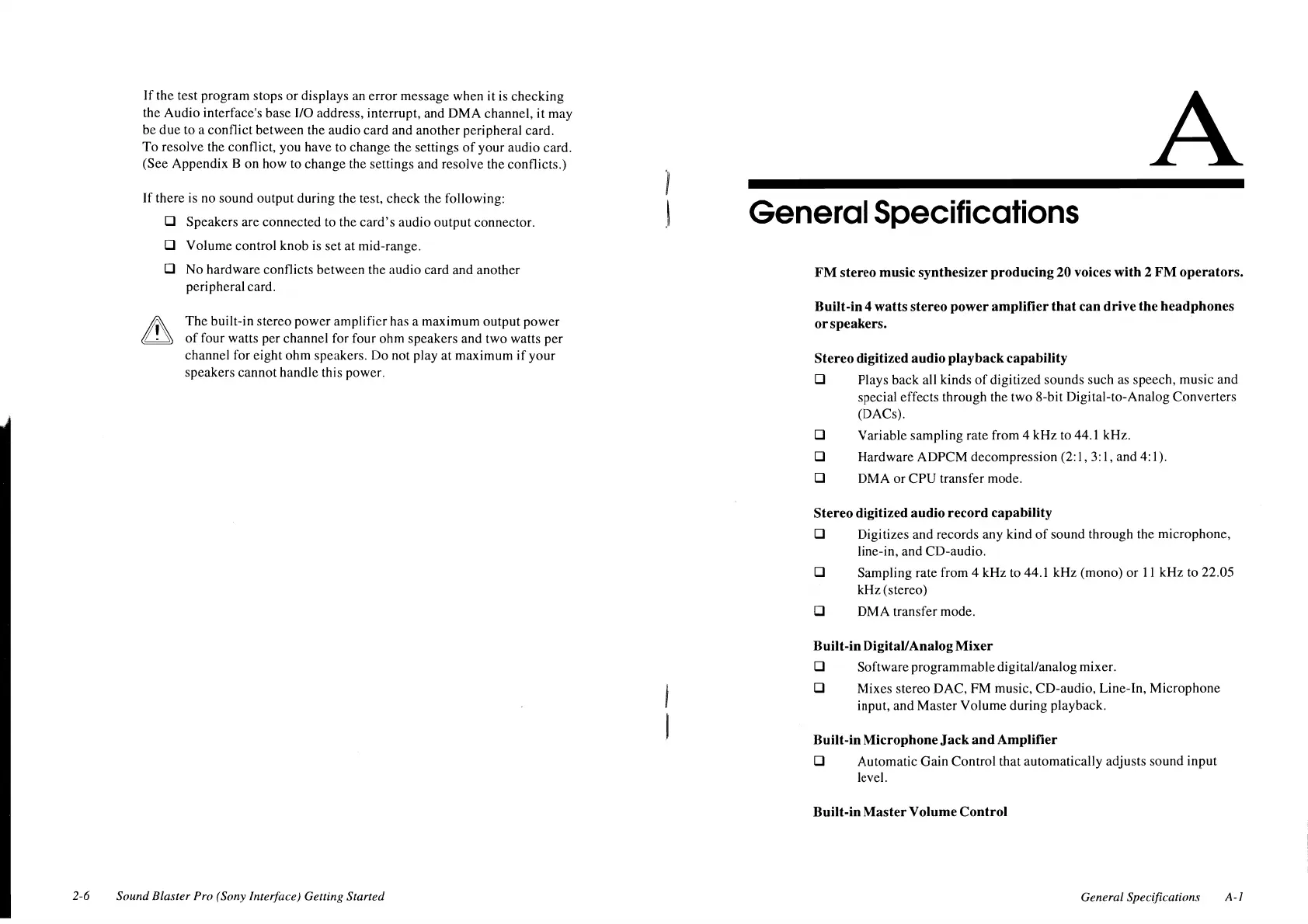

2-6
If
the test program stops or displays an error message when it is checking
the Audio interface's base 1/0 address, interrupt, and DMA channel, it may
be due to a conflict between the audio card and another peripheral card.
To resolve the conflict, you have to change the settings
of
your audio card.
(See Appendix
Bon
how to change the settings and resolve the conflicts.)
If there
is
no sound output during the test, check the following:
D Speakers are connected to the
card's
audio output connector.
D Volume control knob
is
set at mid-range.
D No hardware conflicts between the audio card and another
peripheral card.
The built-in stereo power amplifier has a maximum output power
of
four watts per channel for four ohm speakers and two watts per
channel for eight ohm speakers. Do not play at maximum
if
your
speakers cannot handle this power.
Sound Blaster Pro (Sony Interface) Getting Started
A
General
Specifications
FM
stereo
music
synthesizer
producing
20 voices
with
2
FM
operators.
Built-in
4
watts
stereo
power
amplifier
that
can
drive
the
headphones
or
speakers.
Stereo
digitized
audio
playback
capability
D Plays back all kinds
of
digitized sounds such as speech, music and
special effects through the two 8-bit Digital-to-Analog Converters
(DACs).
D Variable sampling rate from 4 kHz to 44.1 kHz.
D Hardware ADPCM decompression (2:
1,
3:
l,
and
4:
1
).
D DMA or CPU transfer mode.
Stereo
digitized
audio
record
capability
D Digitizes and records any kind
of
sound through the microphone,
line-in, and CD-audio.
D Sampling rate from 4 kHz to 44.1 kHz (mono) or
11
kHz to 22.05
kHz(stereo)
D DMA transfer mode.
Built-in
Digital/
Analog
Mixer
D Software programmable digital/analog mixer.
D Mixes stereo DAC, FM music, CD-audio, Line-In, Microphone
input, and Master Volume during playback.
Built-in
Microphone
Jack
and
Amplifier
D Automatic Gain Control that automatically adjusts sound input
level.
Built-in
Master
Volume
Control
General Specifications
A-I
