Crestron CEN-IO User Manual

Crestron CEN-IO Ethernet Input/Output Module

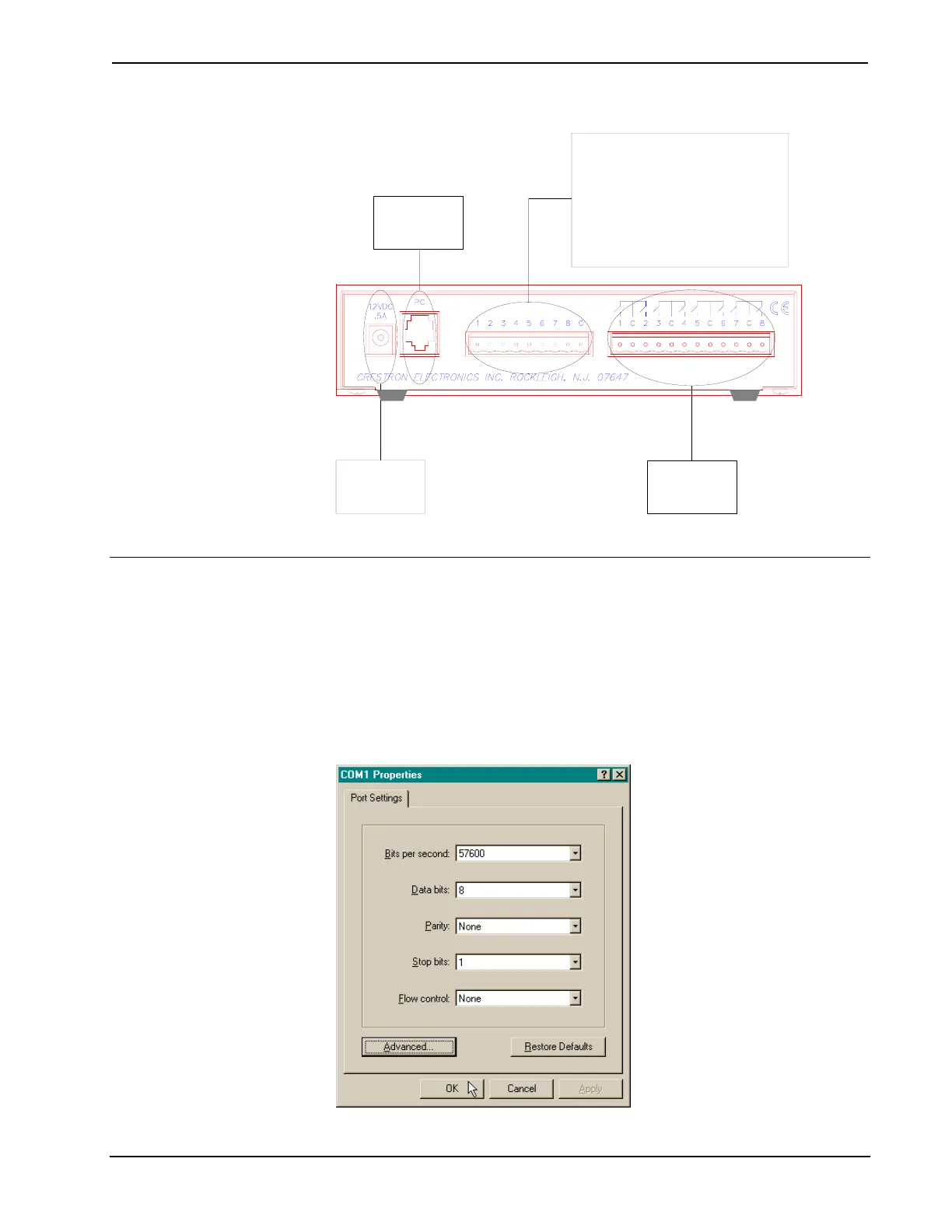

Hookup Connections for CEN-IO
NOTE:
CABLES ARE NOT SUPPLIED.
ETHERNET CONNECTION NOT SHOWN.
PC
POWER PACK
(500 mA)
(1000 mA
for CENI-IO)
TO
CONTROLLABLE DEVICES
FROM DEVICE OUTPUTS
INPUT/OUTPUT
TO
CONTROLLABLE
DEVICES
RELAY OUTPUT
- CONTACT CLOSURES
- SOLID STATE CLOSURES
- LIGHTING SYSTEMS
Setup Menus
The CEN-IO setup menus can be accessed only after connecting the communications
port of the PC to the PC port on the CEN-IO. Communication cables are not
provided. Refer to “Preparation for Use” on page 6 for CEN-IO hookup details.
After connecting the CEN-IO and before applying power, open the communications
package that resides on the PC. Viewport from either SIMPL Windows or
VisionTools Pro is used in the illustrations that follow. Be sure to set the PC
communication parameters as shown below.
PC Communication Parameters
Operations Guide - DOC. 5718 Ethernet Input/Output Module: CEN-IO • 7

Crestron CEN-IO Specifications

General

Brand	Crestron
Model	CEN-IO
Category	Network Hardware
Language	English
