the numbers consecutively. When all the numbers are entered, depress ‘9’ to return
to the RELAY SELECTION MENU.
VersiPort Control
Depressing “3” from the MAIN MENU opens the VERSIPORT SELECTION
MENU which appears on the screen as four options.

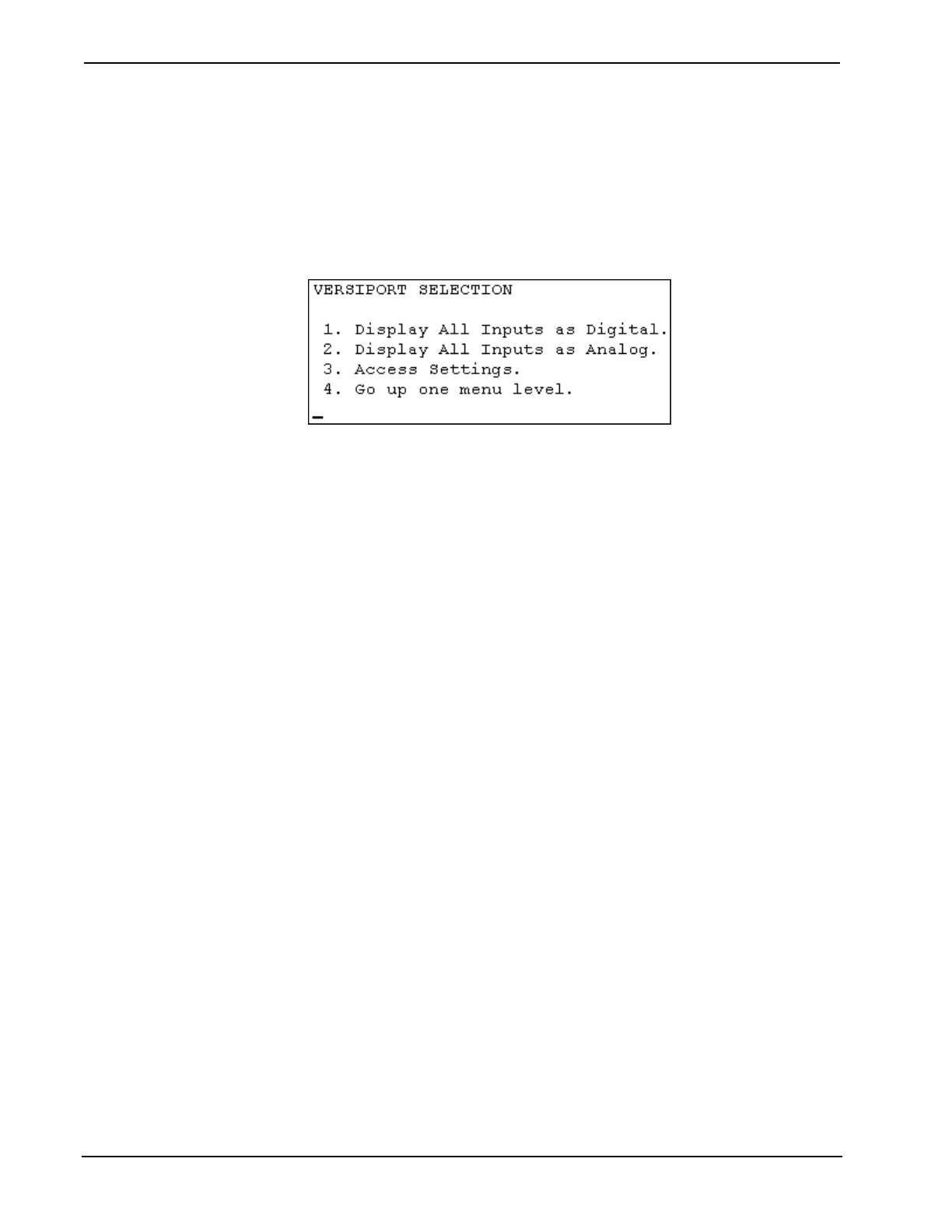

VERSIPORT SELECTION MENU in Viewport Window
Display All Inputs as Digital
Depressing “1” from the VERSIPORT SELECTION MENU reveals the current
digital state of the eight inputs (#1 through #8). The program further responds by
prompting the user to ‘Press space bar to continue’. Doing so displays the
VERSIPORT SELECTION MENU again.
Display All Inputs as Analog
Depressing “2” from the VERSIPORT SELECTION MENU reveals the current
analog value of the eight inputs (#1 through #8). The program further responds by
prompting the user to ‘Press space bar to continue’. Doing so displays the
VERSIPORT SELECTION MENU again.
Access Settings
Depressing “3” from the VERSIPORT SELECTION MENU permits the user to
review all the access settings for a given input (#1 through #8). The program
provides the given inputs digital state, analog value, analog threshold value, and
VersiPort connections. The program prompts the user to do one of the following.
• Depress “1” to toggle the voltage state.
• Depress “2” to toggle the grounding state.
• Depress “3” to set the analog threshold.
• Depress “4” and the space bar to access the setting of another
VersiPort. The program prompts the user with the ‘SELECT
VERSIPORT’ message. Either enter the number (1 through 8) or
depress ‘9’ to display the VERSIPORT SELECTION MENU.
Change Password
Passwords allow the user to access these menus via a TELNET session. Depressing
“4” from the MAIN MENU permits the user to alter the current password. The
program prompts the user to enter a new password. Enter the password and depress
ENTER. The program prompts the user to enter the new password again. Enter the
password and depress ENTER. If done correctly, the program responds that the
password was accepted. The program further responds by prompting the user to
‘Press space bar to continue’. Doing so displays the MAIN MENU again.
