Programming manager

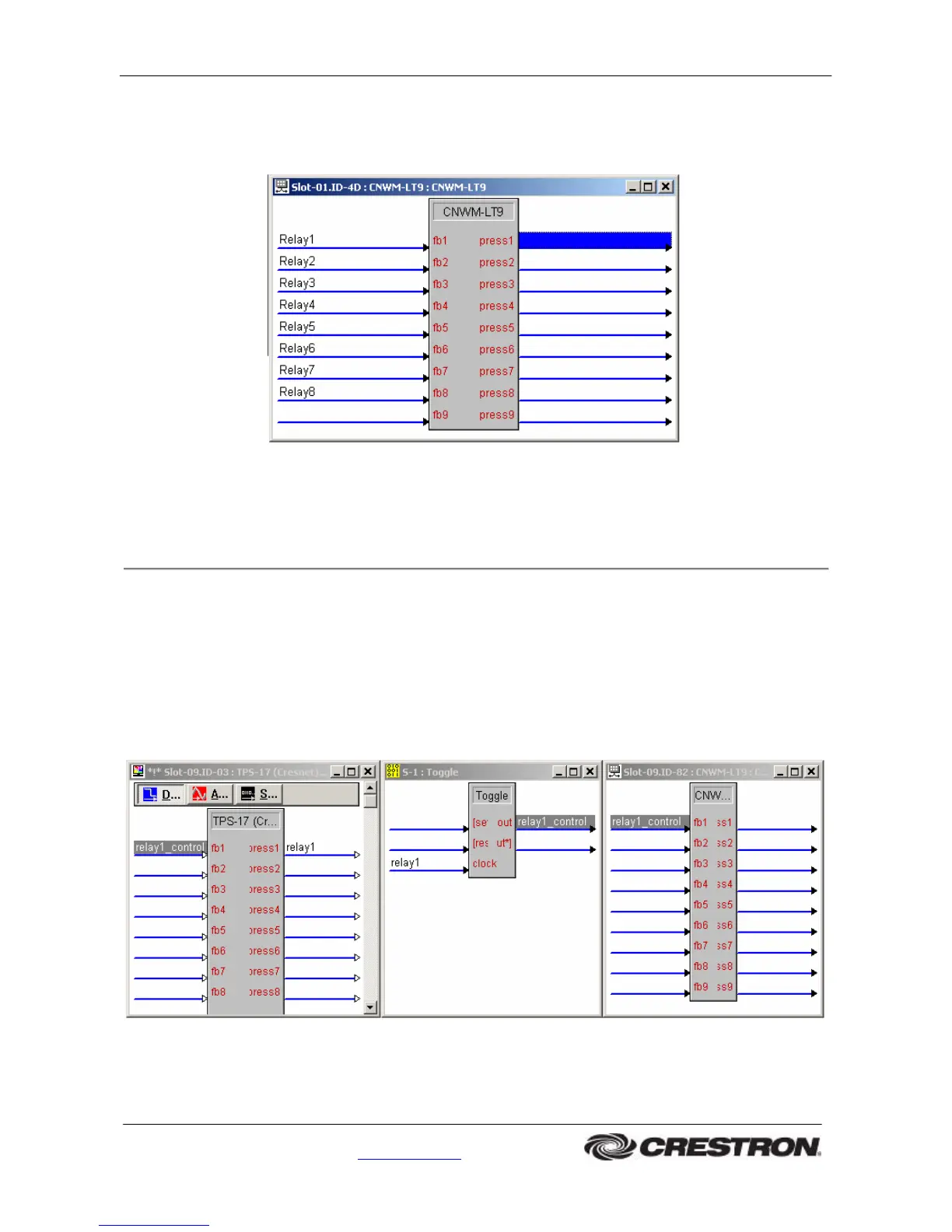

The CNWM-LT9 symbol has 9 digital press and 9 fb (feedback) signals (Figure 9).
Figure 9: CNMW-LT9 symbol
*The first 8 fb signals (fb1-fb8) represent the 8 relays of the CH-HREL8-D6
The press signals (press1 – press9) are not used by the CH-HREL8-D6.
Example Program
Control a relay
This basic example illustrates how the first relay of a CH-HREL8-D6 can be controlled via
a single press on a button located on a touchpanel or keypad. The toggle symbols keeps
the relay open or closed (Figure 10).
Figure 10: Example program
