CH-HREL8-D6 Product Manual
Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium
Tel: +32 15 50 99 50 • info@crestron-int.be • www.crestron-int.be
6
Cresnet Connections
Note: Before making any connections, CRESTRON recommends that all power is off
and the installer reviews the latest revision of the network interconnection drawing
(DOC5411i).
Refer to figure 4 and connect the CH-HREL8-D6 to the Cresnet network via a Cresnet
network cable (CRESNET cable). This cable is not supplied with the CH-HREL8-D6 but
can be obtained from Crestron International.

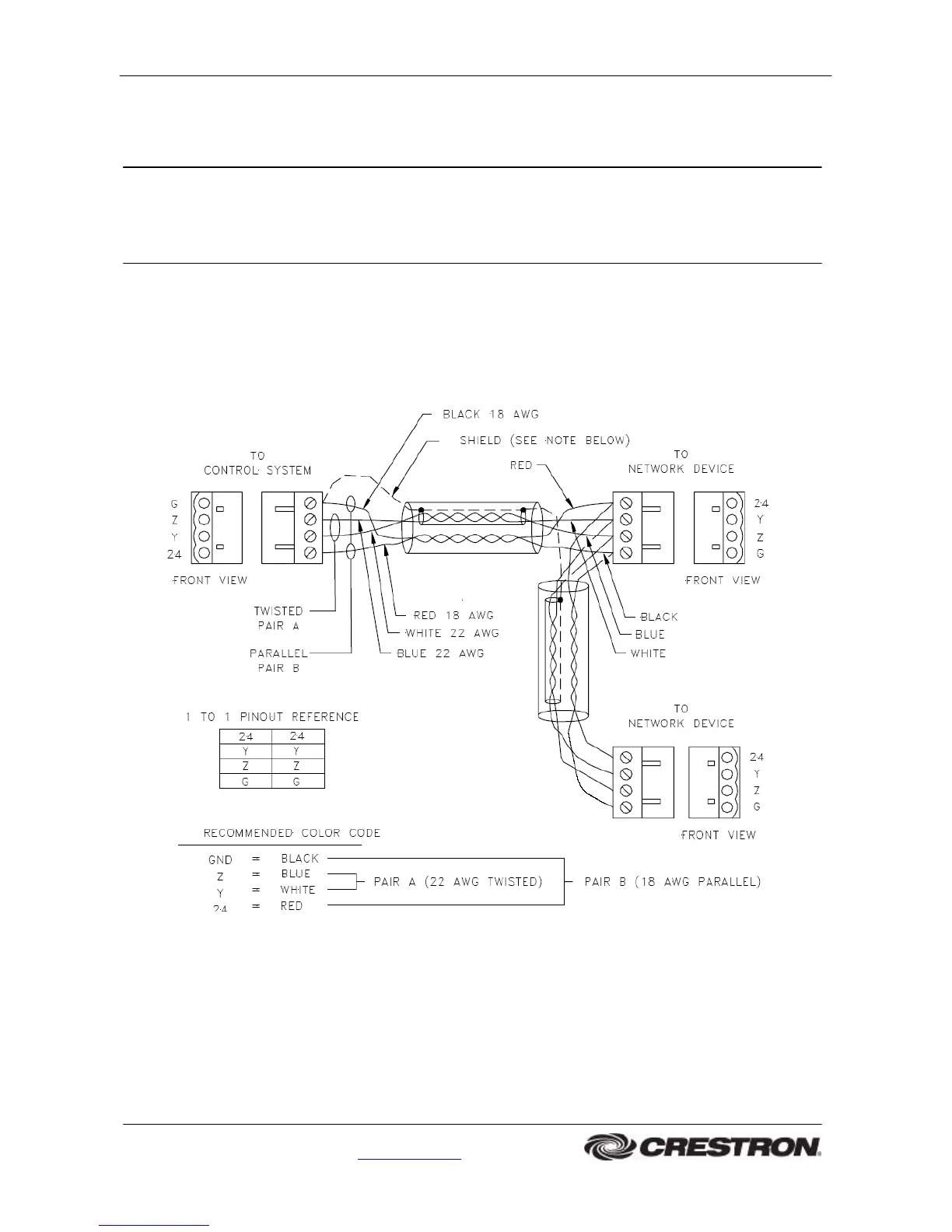

Figure 4: CH-REL8-D6, Cresnet Hook-up
