Crestron CH-HREL8-D6 User Manual

CH-HREL8-D6 Product Manual
Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium
Tel: +32 15 50 99 50 • info@crestron-int.be • www.crestron-int.be
4
Technical data
Dimensions : 106 x 90 x 58 mm ( L x B x H )
DIN norm : 6 Modules 106 mm, DIN43880
Cut-out size electrical cabinet : 106 mm x 45 mm (L x H)
Weight : 320 g
Color : Enclosure, grey RAL7035 , front black
Material : Self-extinguishing NORYL
Mounting : DIN rail DIN EN 50022
Connectors for relays : Phoenix 0.2 to 4mm
2
cable section
Connectors Cresnet / Inputs : Mini Phoenix 3.5mm
Addressing Cresnet : through Crestron viewport or Toolbox
Power : 24 VDC, Cresnet
Power consumption : max. 170mA
Cresnet Power factor : 4W
Crestron Device Library : CNWM-LT9
Relays : 8 single pole single throw highvoltage
relays 250VAC / 16A
( For RESISTIVE LOADS ONLY!!! ) with
VDR 385V protection per relay.
Status : 1 blue LED for Power status
: 8 red LED’s for Relay status
Test / Override : each relay has a separate override
switch
Includes : Interface with 2x 4-pole
Mini-Phoenix connectors

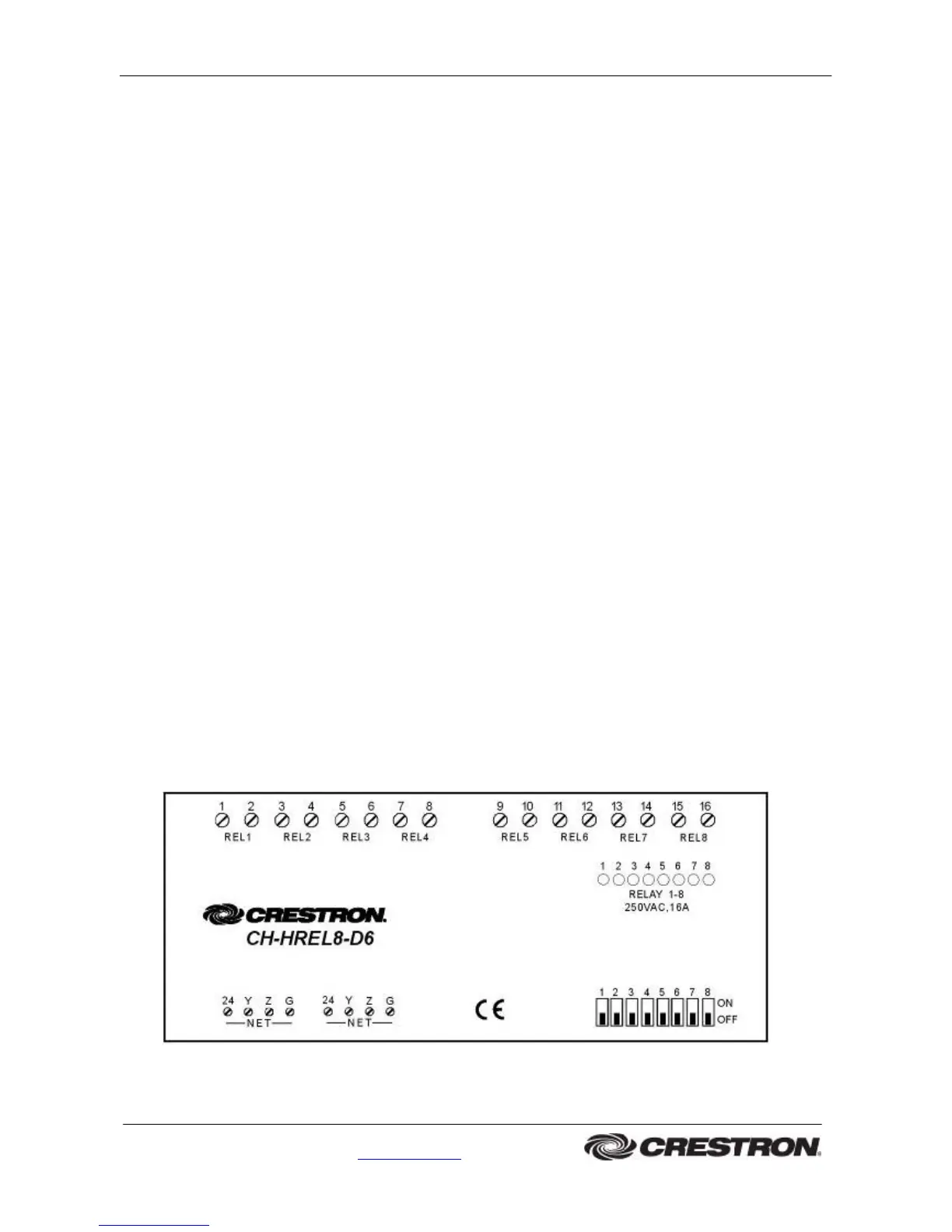

Front view
Figure 2: Front view CH-HREL8-D6

Crestron CH-HREL8-D6 Specifications

General

Brand	Crestron
Model	CH-HREL8-D6
Category	Controller
Language	English
