Crestron CHV-TSTATEX User Manual

Crestron CHV-TSTATEX infiNET EX™ Thermostat
CAUTION: Excess wire pinched between the CHV-TSTATEX and electrical box
could cause a short circuit. Make sure that all excess wire is completely inside the
electrical box and not between the box and the CHV-TSTATEX.
NOTE: To ensure accurate temperature readings, avoid drafts in the back of the unit
by plugging the wire hole with insulation.
5. Attach the CHV-TSTATEX back plate to the electrical box using the two
supplied #06-32 x 1” pan head screws.
6. Attach the face plate.
7. Insert batteries and attach the battery compartment cover.
8. Turn HVAC system power ON.
CAUTION: Replace all batteries in the device at the same time Mixing old and new
batteries in the device may result in battery leakage and equipment damage.
NOTE: Crestron has provided small slots on either side of the battery cover,
designed to allow a flathead screwdriver to be inserted to assist in removal.

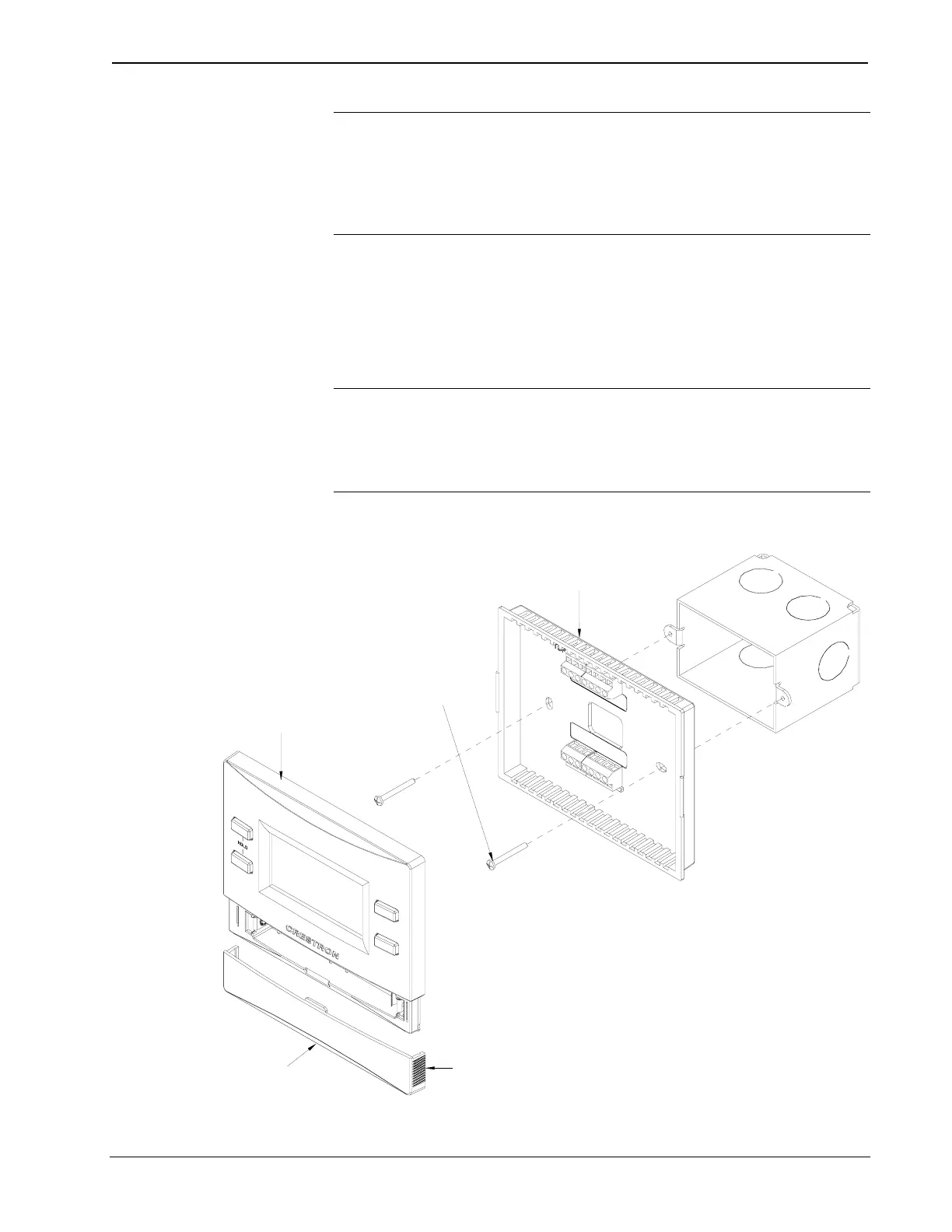

Installation into Electrical Box
Rear Plate
Screws
#06-32 x 1"
Battery
Compartment Cover
Screwdriver Slots
Front Plate
Operations & Installation Guide – DOC. 6989A infiNET EX™ Thermostat: CHV-TSTATEX • 9

Crestron CHV-TSTATEX Specifications

General

Brand	Crestron
Model	CHV-TSTATEX
Category	Thermostat
Language	English
