Crestron CHV-TSTATEX infiNET EX™ Thermostat

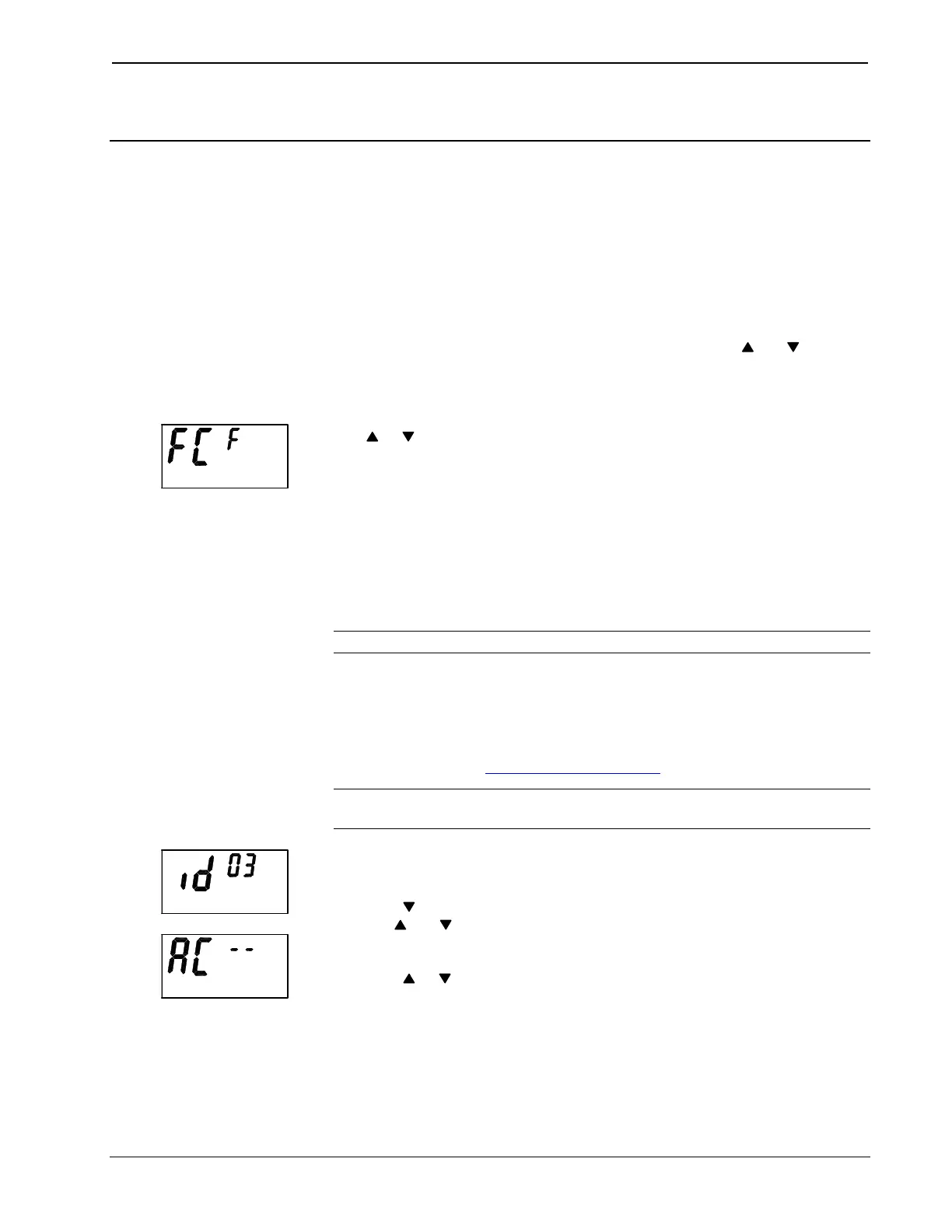

Basic Setup
Basic Thermostat Setup
The following describes the most common setup requirements. For full details on all
setup options, refer to “Advanced Setup” which starts on page 19.
Place the CHV-TSTATEX in the Setup mode by doing the following:
1. Press and hold the FAN button.
2. While the FAN button is being held, press and hold the
and buttons
simultaneously.
3. Hold all three buttons for five seconds, after which the unit will enter Setup
mode. The display shows the Temperature Scale function (FC).
Use or to choose the temperature units: F (Fahrenheit), C1 (setpoint in whole
degrees Celsius) or C2 (setpoint in half degrees Celsius).
Joining an infiNET EX Network
Before a CHV-TSTATEX can be used on an infiNET EX network, it must first join
an infiNET EX network by being acquired by an infiNET EX gateway (e.g.,
CEN-RFGW-EX).
NOTE: A CHV-TSTATEX can be acquired by only one gateway.
To acquire a CHV-TSTATEX, perform the following:
1. Put the CEN-RFGW-EX into Acquire mode, from the unit itself or from
Crestron Toolbox, as described in the latest revision of the CEN-RFGW-EX
Operations & Installation Guide (Doc. 6706), which is available from the
Crestron Web site (
www.crestron.com/manuals).
NOTE: In an environment where multiple gateways are installed, only one gateway
should be in the Acquire mode at a time.
2. Ensure the unit is in Setup mode (refer to “Basic Thermostat Setup” above or
“Setup Mode” which starts on page 19) and that Acquire mode (AC) is selected.
3. Press
until the “infiNET EX ID (RF ID)” function is displayed (id).
Use
and to choose the infiNET EX ID.
4. Press MODE until the “Start infiNET EX Acquire” function is displayed (AC).
5. Press
or on the CHV-TSTATEX to start the acquire process: The display
shows flashing “—” (in progress). When finished, the display shows “00”
(finished, found gateway) or “E#” (finished, could not find gateway), where #
represents an error code.
6. Once all devices have been acquired, take the CEN-RFGW-EX out of Acquire
mode. Press FAN on the thermostat to exit Setup mode.
Operations & Installation Guide – DOC. 6989A infiNET EX™ Thermostat: CHV-TSTATEX • 17
