3-Series Control Systems Crestron CP3 & CP3N
14 3-Series Control Systems: CP3 & CP3N Operations GuideDOC. 7316C

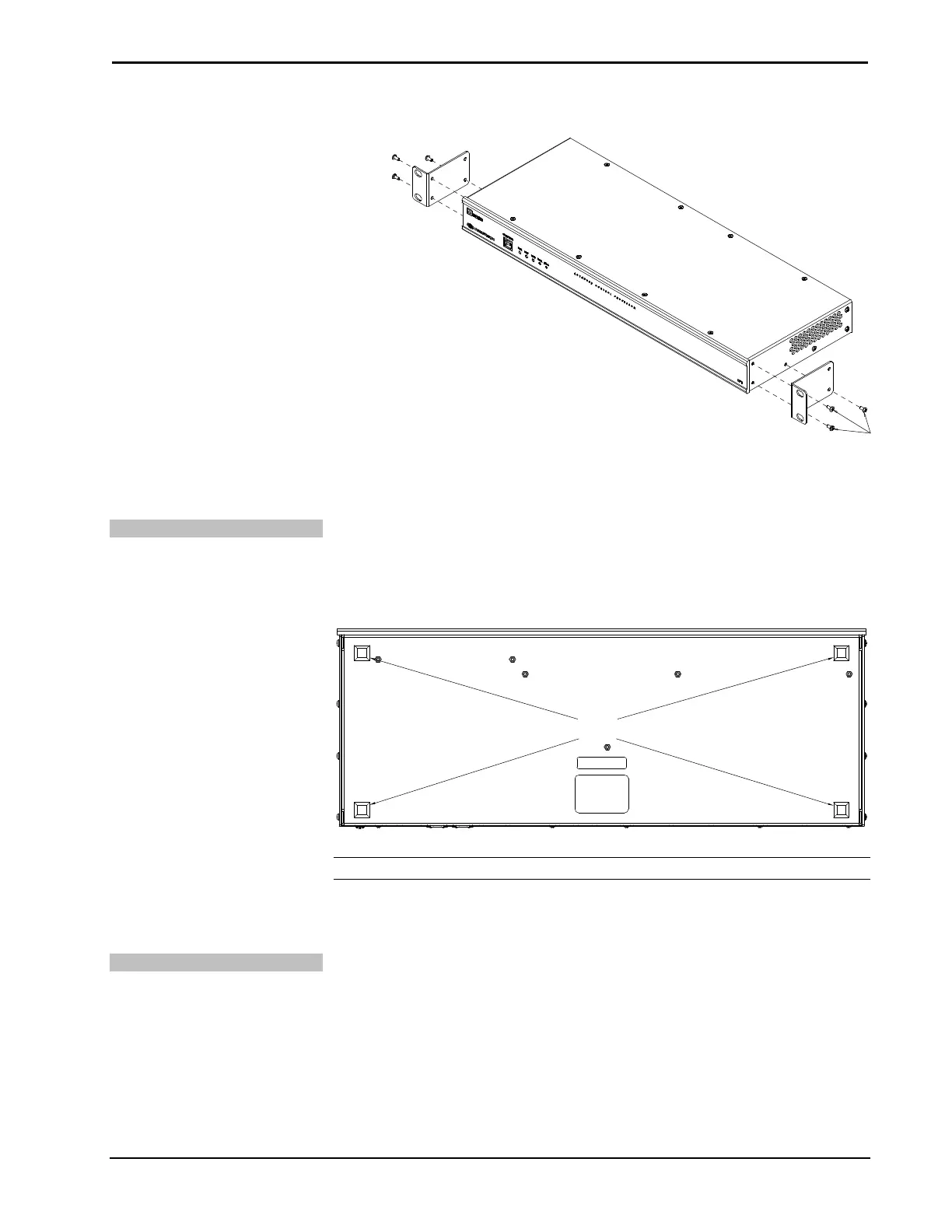

Ear Attachment for Rack Mounting
Use Cover Screws
4. Repeat procedure (steps 1 through 3) to attach the remaining ear to the
opposite side.
Stacking
Four “feet” are provided with the CP3 so that if the unit is not rack mounted, the
rubber feet can provide stability when the unit is placed on a flat surface or stacked.
These feet should be attached prior to the hookup procedure. Refer to the following
illustration for placement of the feet.
Foot Placement for the CP3
Mounting Feet (2002389), QTY. 4
NOTE: No more than two CP3 units should be stacked.
Hardware Hookup
Connect the Device
Make the necessary connections as called out in the illustration that follows this
paragraph. Refer to “Network Wiring” on page 12
before attaching the 4-position
terminal block connector. Apply power after all connections have been made.
When making connections to the CP3, note the following:
Use Crestron power supplies for Crestron equipment.
The included cable(s) cannot be extended.

Other manuals for Crestron CP3N

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Crestron CP3N and is the answer not in the manual?

Crestron CP3N Specifications

General IconGeneral
Internal memory0.5 GB
Storage media typeFlash
Internal memory typeSDRAM
Internal storage capacity4 GB
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Power consumption (typical)24 W
Operating temperature (T-T)5 - 45 °C
Operating relative humidity (H-H)10 - 90 %
Product colorBlack
Heat dissipation50 BTU/h
Housing materialMetal
Ethernet LAN (RJ-45) ports2
Weight and Dimensions IconWeight and Dimensions
Depth167 mm
Width439 mm
Height44 mm
Weight1420 g
