NOTE: The CP3 can be powered by the 4-position terminal block connector labeled
NET or with the (included) 24 Vdc power pack.
Control Subnet (CP3N Only)
The CP3N has a dedicated Control Subnet that is used for communication between
the control system and Crestron Ethernet devices. This subnet allows for dedicated
communication between the control system and Crestron Ethernet devices without
interferences from other network traffic on the LAN.
CAUTION: Do not connect the CONTROL SUBNET port to the LAN. The
CONTROL SUBNET port must only be connected to Crestron Ethernet devices.

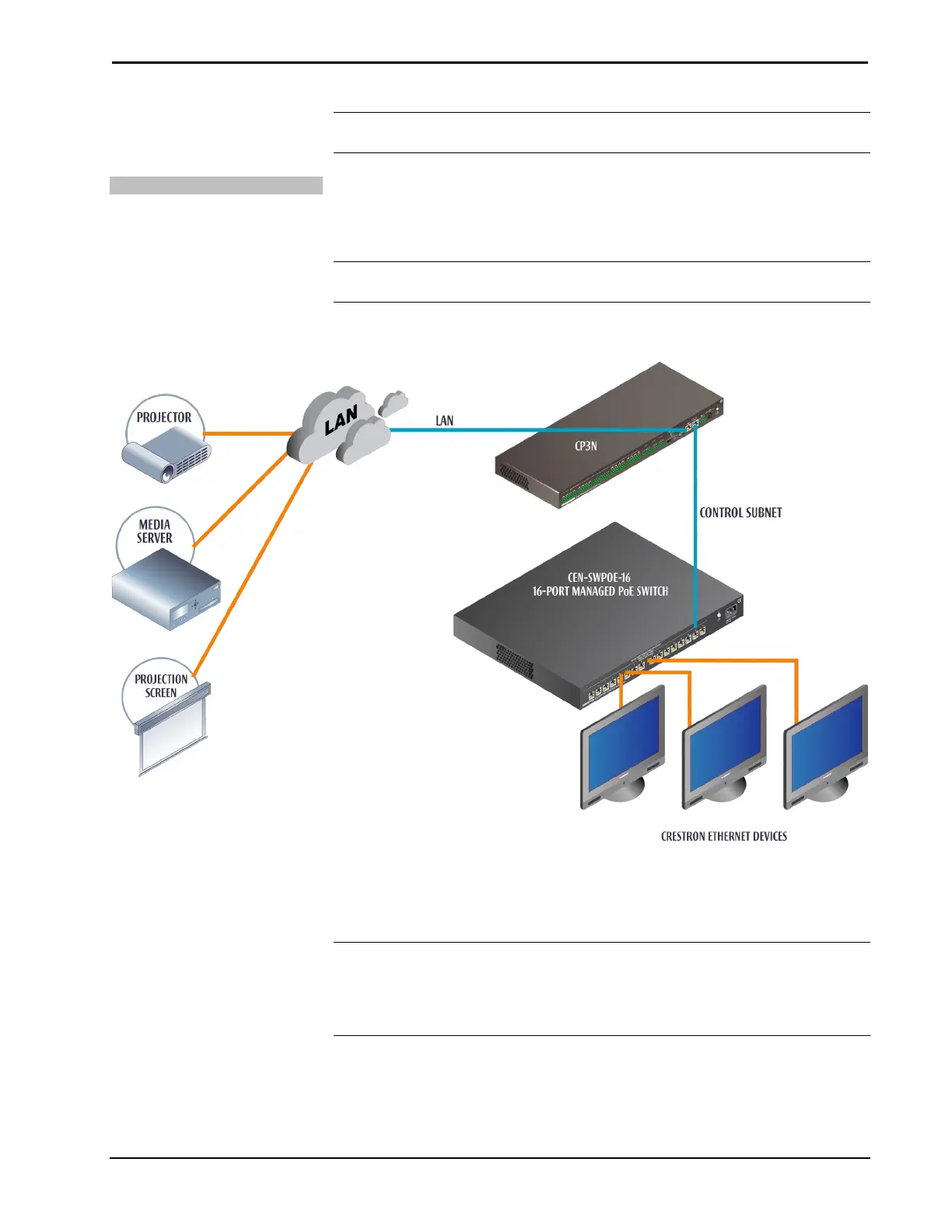

Control Subnet Application
The Control Subnet can host up to 64000 Crestron Ethernet devices. Connect a
Crestron Ethernet switch such as the CEN-SWPOE-16 16-Port Managed PoE Switch
(sold separately) to the CP3N’s CONTROL SUBNET port to use as a connection
point a variety of Crestron Ethernet devices.
NOTE: If the CP3N is operating in the Isolation mode, Crestron Ethernet devices
that require Internet access should not be connected to the CONTROL SUBNET
port (either directly or indirectly). Any Crestron Ethernet device that requires an
Internet connection should be connected to the local area network. For details, refer
to “
Control Subnet (CP3N Only)” on page 19.

Crestron CP3N Specifications

General

Internal memory	0.5 GB
Storage media type	Flash
Internal memory type	SDRAM
Internal storage capacity	4 GB
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	24 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Heat dissipation	50 BTU/h
Housing material	Metal
Ethernet LAN (RJ-45) ports	2

Weight and Dimensions

Depth	167 mm
Width	439 mm
Height	44 mm
Weight	1420 g
