DigitalMedia Switchers Product Manual – DOC. 8418A
DMC-4KZ-C Input Card
The DMC-4KZ-C is a DigitalMedia 8G+® input card that supports 4K60 4:4:4 and HDR
(High Dynamic Range) video signals. The card provides a DM 8G+® input that is also
compatible with the HDBaseT® standard. An HDMI® output and unbalanced analog
audio output are also provided. A POE IN port enables PoDM (Power over DigitalMedia)
power sourcing through the DM 8G+ input.

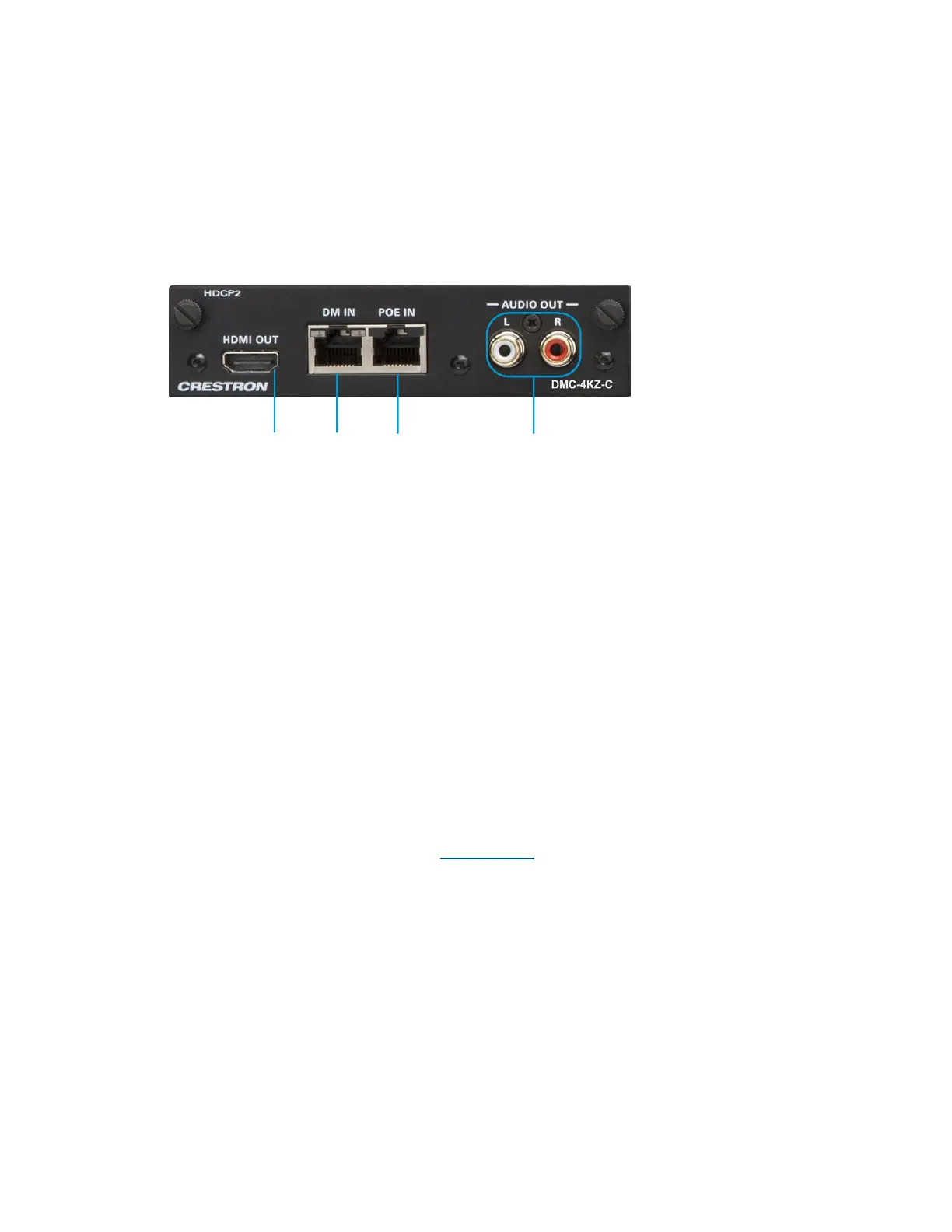

DMC-4KZ-C Input Card
HDMI OUT: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible)
DM IN: 8-pin RJ-45 connector, female, shielded;
DM 8G+ input, HDBaseT standard compliant;
PoDM PSE port (HDBaseT PoE compatible);
Connects to the DM 8G+ output of a DM transmitter or other DM device or to an
HDBaseT device
Green LED indicates DM link status;
Amber LED indicates video and HDCP signal presence
POE IN: 8-pin RJ-45 connector, female;
PoE/PoDM input;
Connects to IEEE 802.3af or 802.3at compliant PoDM or PoE PSE (Power Sourcing
Equipment) to enable PoDM or HDBaseT PoE power sourcing via the DM IN port;
Compatible with PoE+, PoDM+, and PoDM++
AUDIO OUT L, R: RCA connectors, female;
Unbalanced stereo line level audio output
For additional information, visit the DMC-4KZ-C product page on the Crestron website.
