DMC-HDO Output Card
The DMC-HDO is a 2-channel HDMI output card. Two balanced/unbalanced analog
audio outputs are also provided.

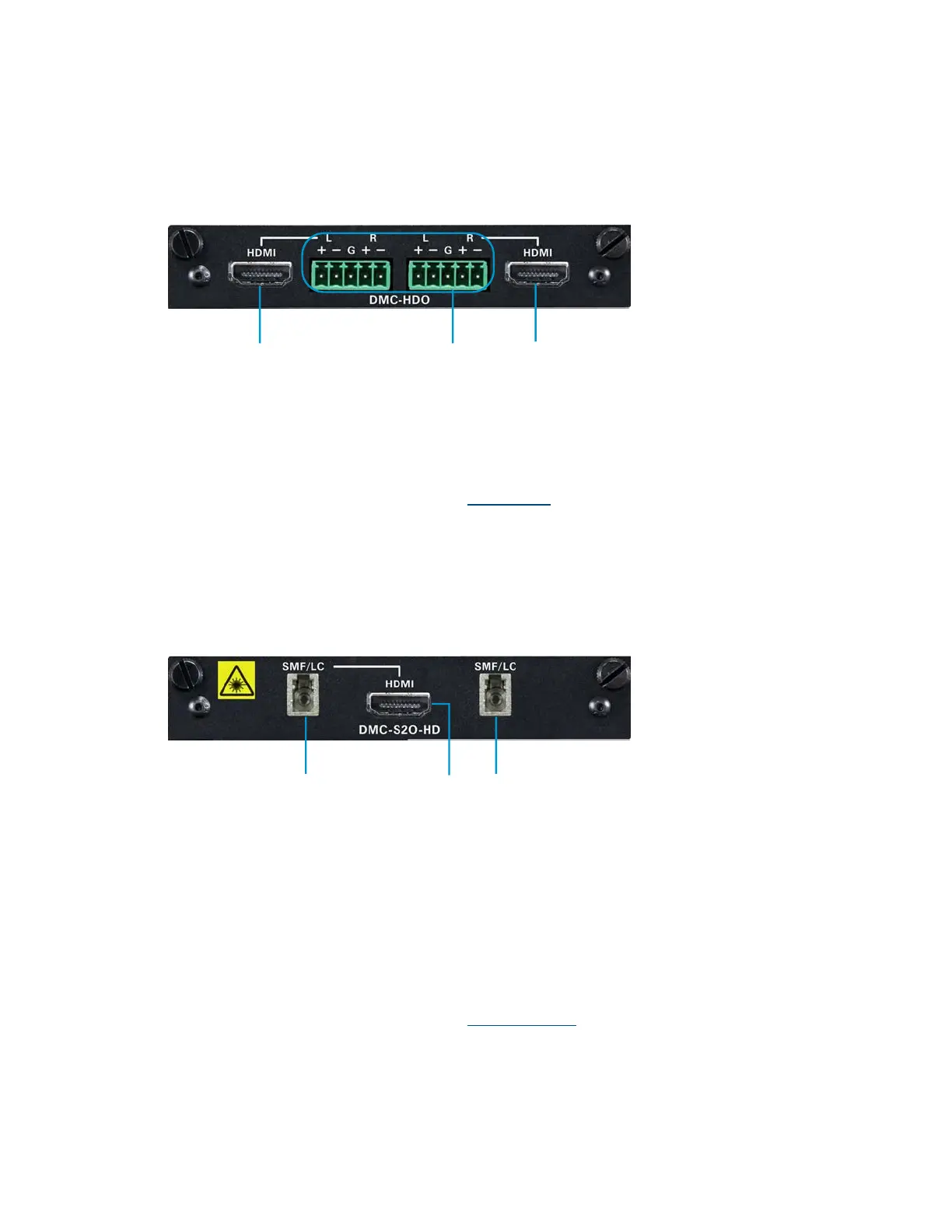

DMC-HDO Card
 HDMI OUT: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible
 L, R: 5-pin 3.5 mm detachable terminal blocks;
Balanced/unbalanced stereo line level audio outputs
For additional information, refer to the DMC-HDO product page on the Crestron
website.
DMC-S2O-HD Output Card
The DMC-S2O-HD is a 2-channel DigitalMedia 8G single-mode fiber output card.
An HDMI output is also provided.
DMC-S2O-HD Output Card
 SMF/LC: LC female optical fiber connector;
DM 8G single-mode fiber output;
Connects to the DM 8G single-mode fiber input of a DM receiver or other DM device
Green LED indicates DM link status for each corresponding DM 8G single-mode
fiber output.
 HDMI: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible);
Outputs same signal as the first SMF/LC output
For additional information, refer to the DMC-S2O-HD product page on the Crestron
website.
 




