DigitalMedia Switchers Product Manual – DOC. 8418A
DMC-4KZ-HD Input Card
The DMC-4KZ-HD is an HDMI input card that supports 4K60 4:4:4 and HDR video
signals. An HDMI output, unbalanced analog audio output, and USB HID port are also
provided.

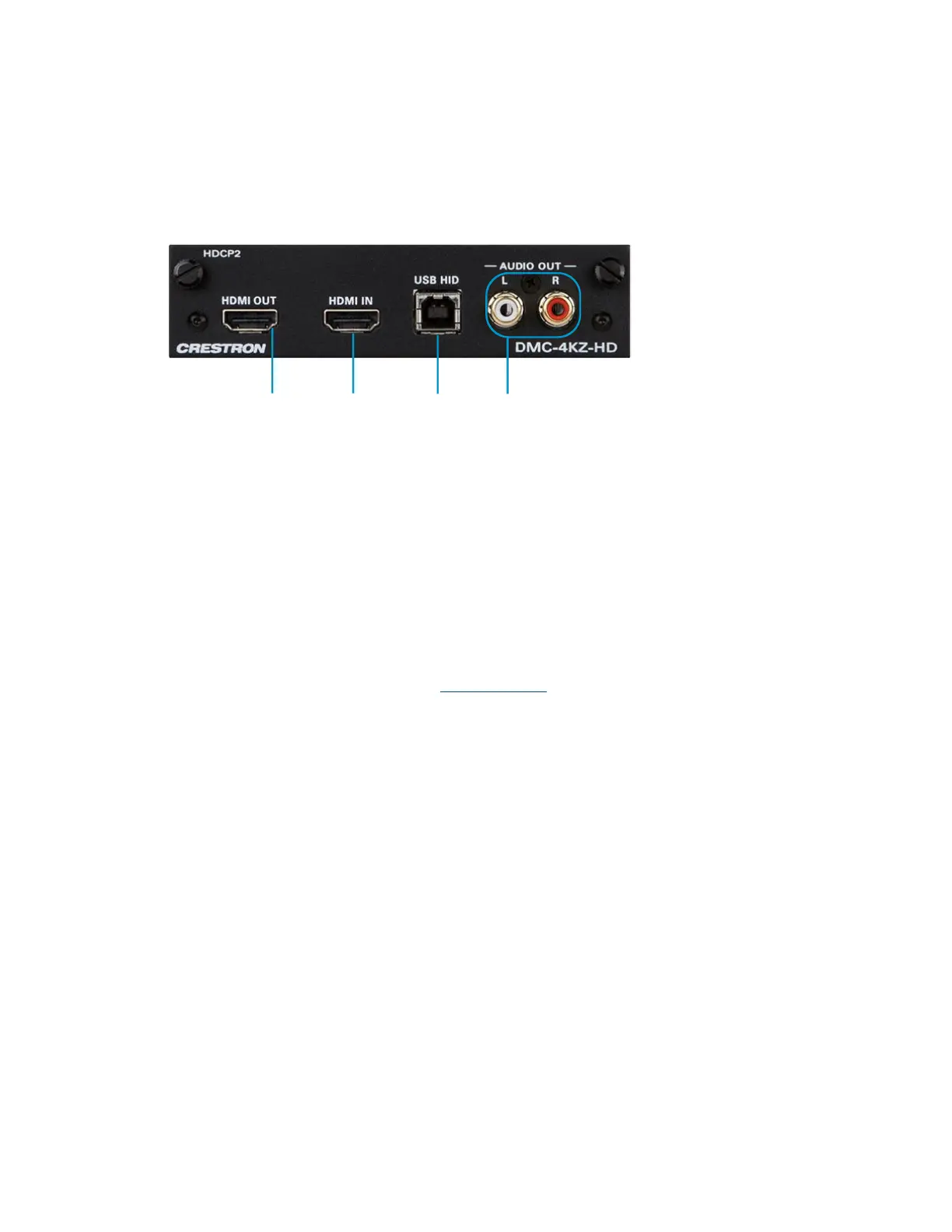

DMC-4KZ-HD Input Card
 HDMI OUT: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible)
 HDMI IN: HDMI Type A connector, female;
HDMI digital video/audio input (DVI and Dual-Mode DisplayPort™ interface
compatible)
 USB HID: USB Type B connector, female;
USB device port for connection to the USB host interface of a computer or other
USB HID compliant host
 AUDIO OUT L, R: RCA connectors, female;
Unbalanced stereo line level audio output
For additional information, visit the DMC-4KZ-HD product page on the Crestron
website.

  
